Component Locations

COMPONENT LOCATIONS

Component

Location

ASCD Actuator ⁽¹⁾

Near Right Shock Tower, In Engine Compartment

ASCD Brake Switch ⁽²⁾

On Bracket, Above Brake Pedal

ASCD Control Unit ⁽³⁾

Behind Driver's Side Lower Instrument Panel Cover

ASCD MAIN Switch

Left Side Of Instrument Panel

ASCD Steering Wheel Switch

Mounted On Steering Wheel

ASCD Pump ⁽¹⁾

Right Shock Tower, In Engine Compartment

CRUISE Indicator Light

Right Side Of Instrument Cluster

Data Link Connector

Next To Passenger Compartment Instrument Panel Fuse Box

Park Neutral Position Switch Relay

On Relay Center, Along Right Fender In Engine Compartment

Brakelight Switch ⁽²⁾

On Bracket, Above Brake Pedal

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Fig 3 .

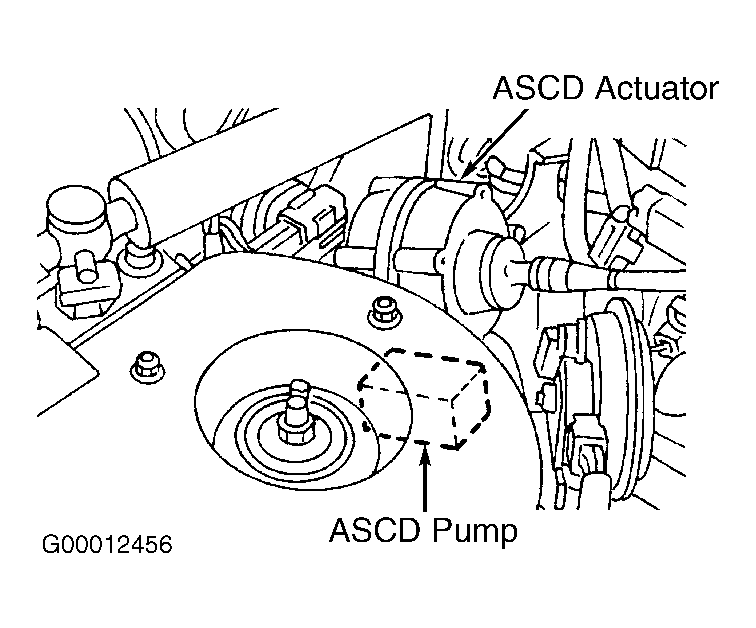

Fig 1: Identifying ASCD Actuator & Pump Location (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying ASCD Brakelight Switch Location (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.

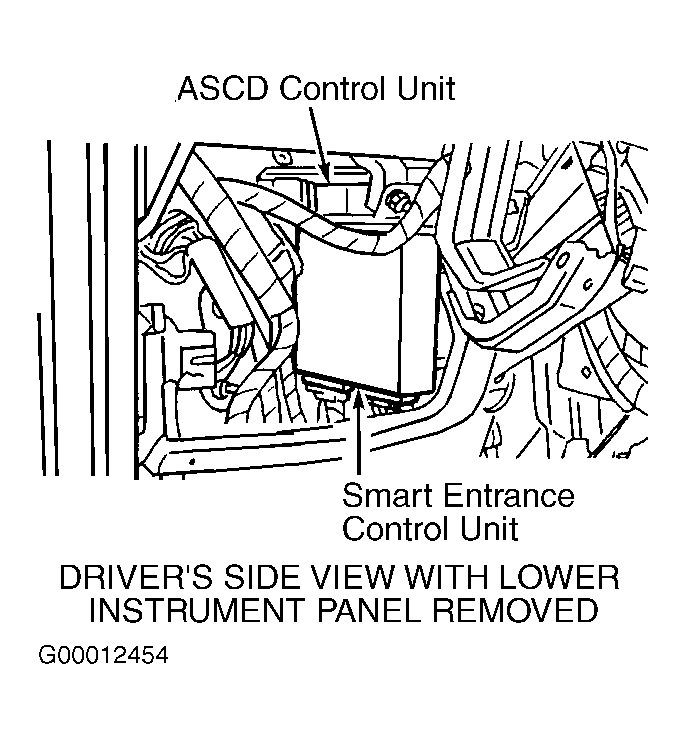

Fig 3: Identifying ASCD Control Unit Location (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.
