Repair and Diagnosis: Transmission: Clutches: Overhaul

NOTE: Overhaul procedures are not available. Use illustrations to aid in overhaul. See Fig 1-Fig 3 .

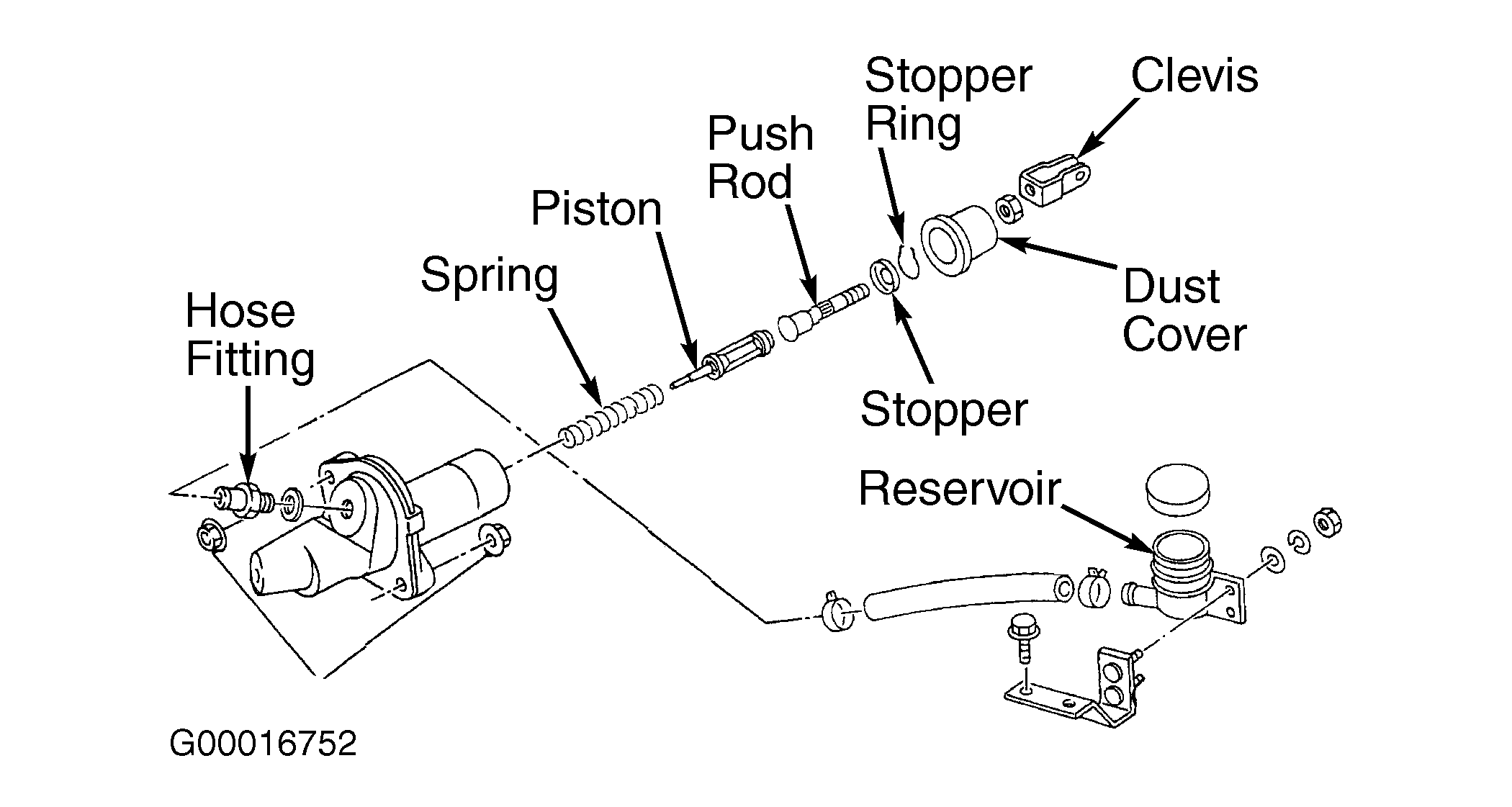

Fig 1: Exploded View Of Clutch Master Cylinder
G00016752Courtesy of NISSAN MOTOR CO., U.S.A.

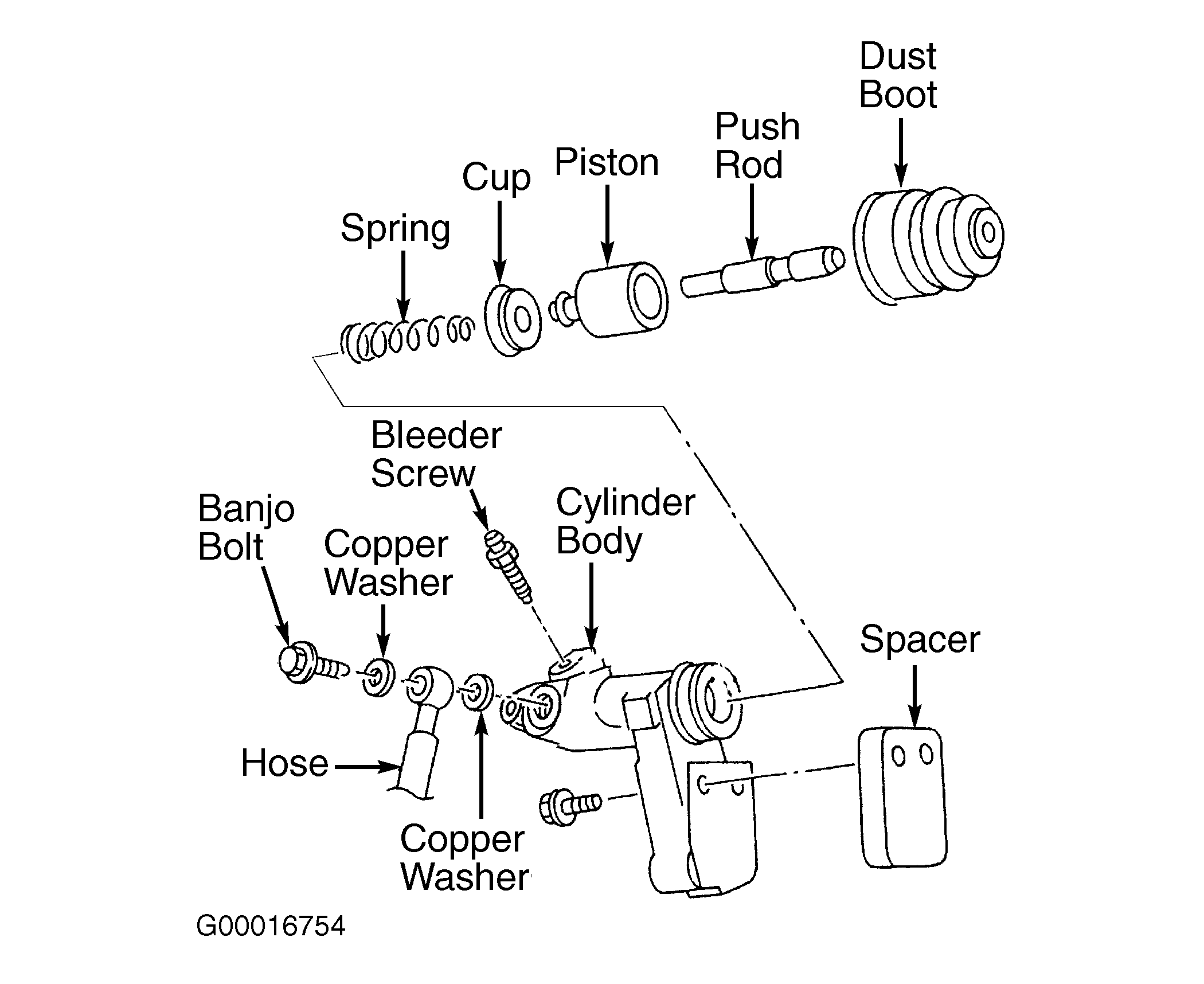

Fig 2: Exploded View Of Clutch Slave Cylinder
G00016754Courtesy of NISSAN MOTOR CO., U.S.A.

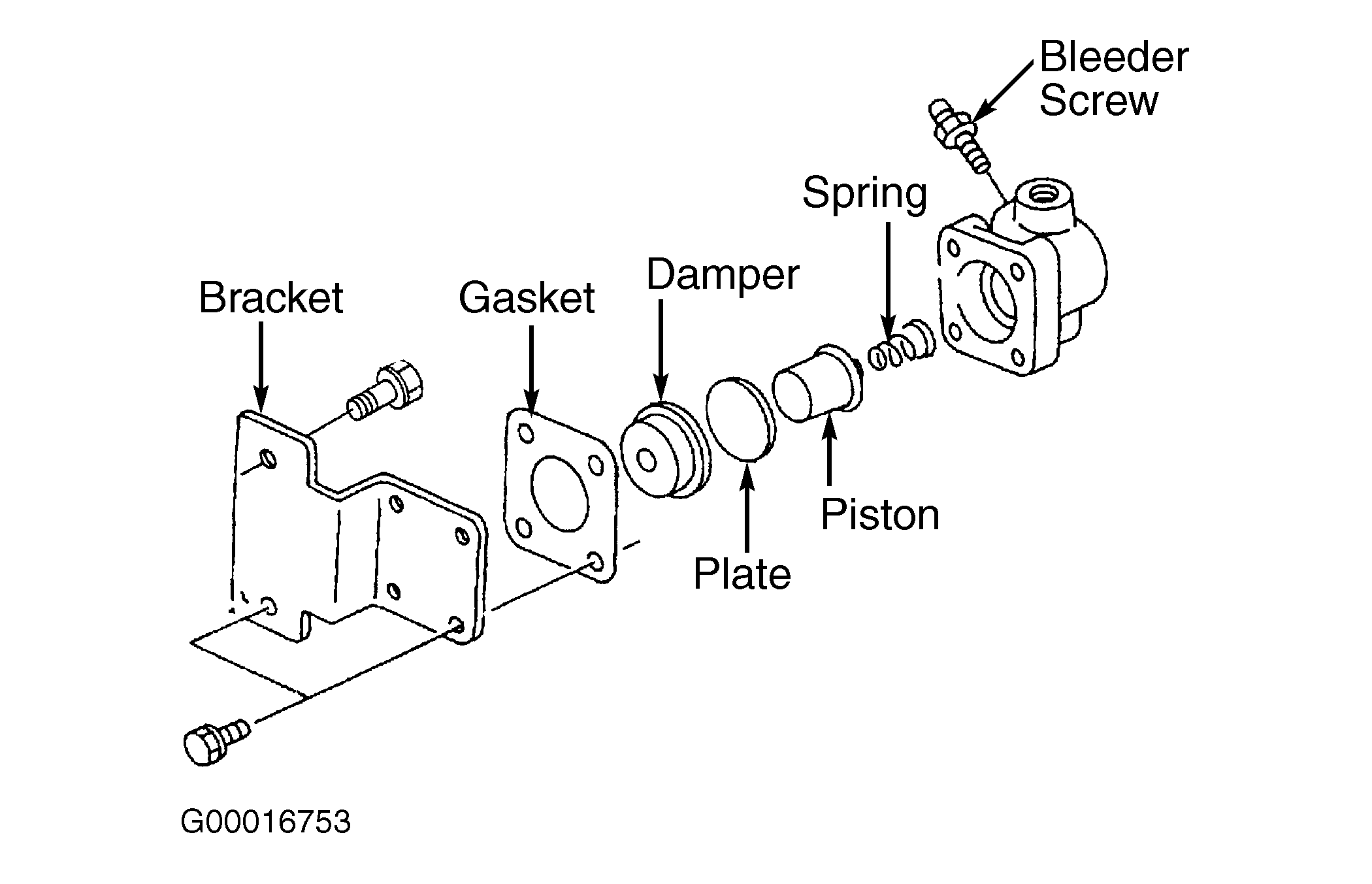

Fig 3: Exploded View Of Clutch Damper Assembly
G00016753Courtesy of NISSAN MOTOR CO., U.S.A.
