Repair and Diagnosis: Transmission: Clutches: Description

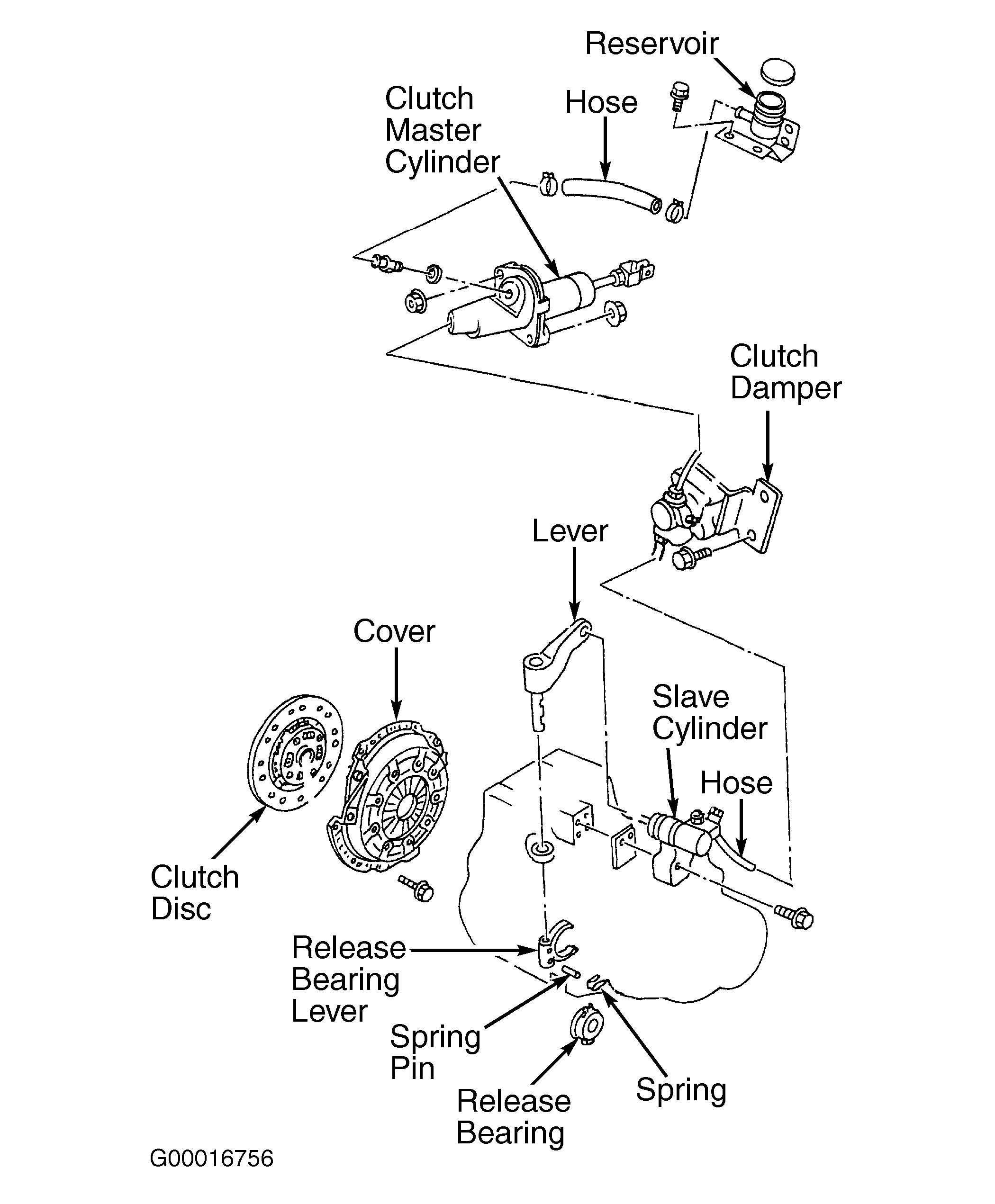

Clutch assembly is a single-disc type with a diaphragm spring pressure plate. System uses a hydraulic control system consisting of a master cylinder, slave cylinder, release lever and release bearing. Clutch master cylinder is on firewall, with a nonadjustable slave cylinder on clutch housing. A clutch damper is located in-line between master cylinder and slave cylinder. See Fig 1.
