Service Point Locations

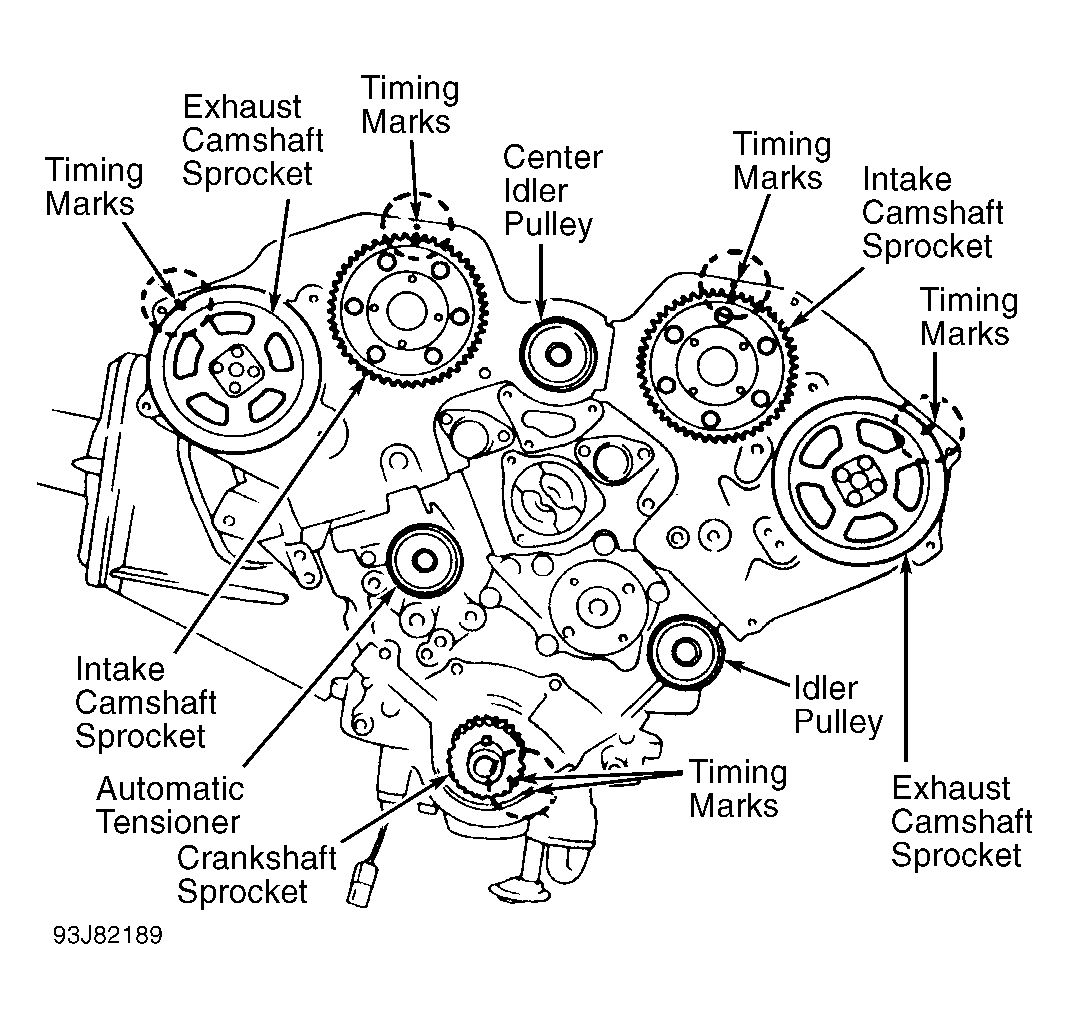

Fig 1: Camshaft Timing Belt Alignment Marks

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For more information regarding camshaft timing belt service refer to the 3.0L V6 - VIN [A] article in the ENGINE MECHANICAL section.

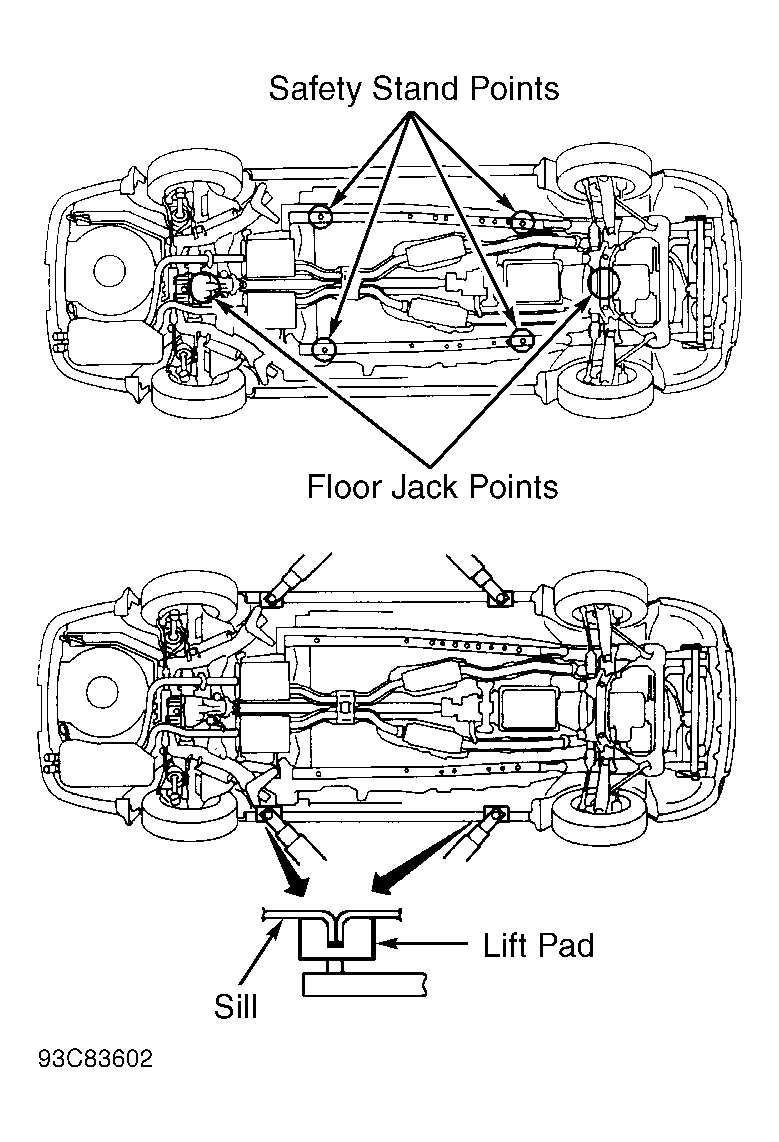

Fig 2: Lift Point Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
