Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/C Auto Amplifier | Below center of dash. See Figure . |
| ABS/TCS Control Unit | Behind left kick panel. See Figure . |
| Air Bag Diagnosis Sensor Unit | Below rear of center console. See Figure . |
| ASCD Control Unit | Behind dash, right of steering column. See Figure . |
| A/T Device | Under center console, at base of selector lever. |
| Autolight Control Unit | Under top left side of dash. |
| Body Control Module (BCM) | Below center of dash. See Figure . |
| Daytime Light Control Unit (Canada) | Right front of engine compartment. See Figure . |
| ECCS Control Module (ECM) | Below center of dash. See Figure . |
| Fan Control Amplifier | Behind right side of glove box, on cooling unit. |

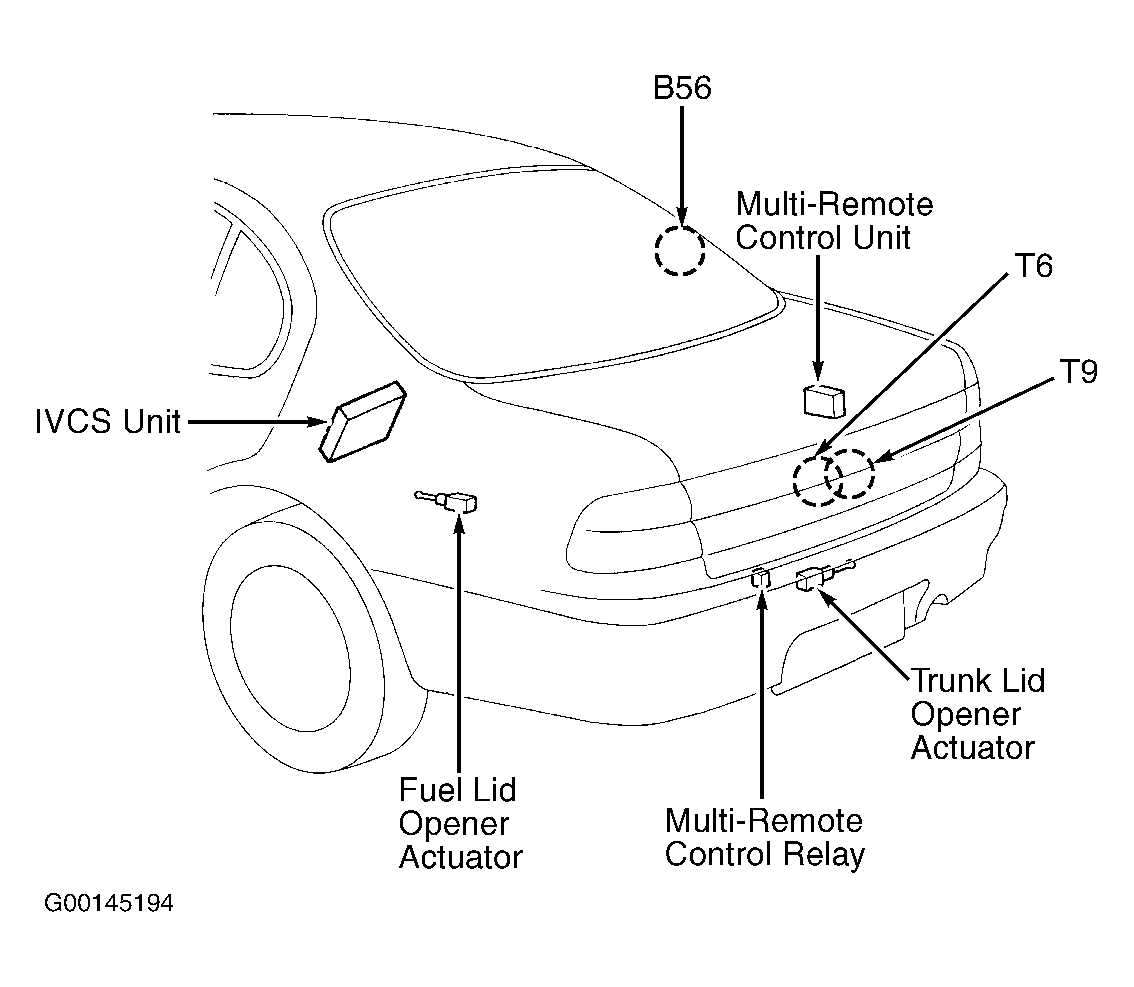

| IVCS Unit | Left front corner of luggage compartment. See Figure . |
| Multi-Remote Control Unit | Right side of luggage compartment. See Figure . |
| NATS Antenna Amplifier | In ignition key cylinder. |
| NATS IMMU | Behind driver's side instrument lower cover. See Figure . |
| Transmission Control Module (TCM) | At front of center console. See Figure . |
