Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

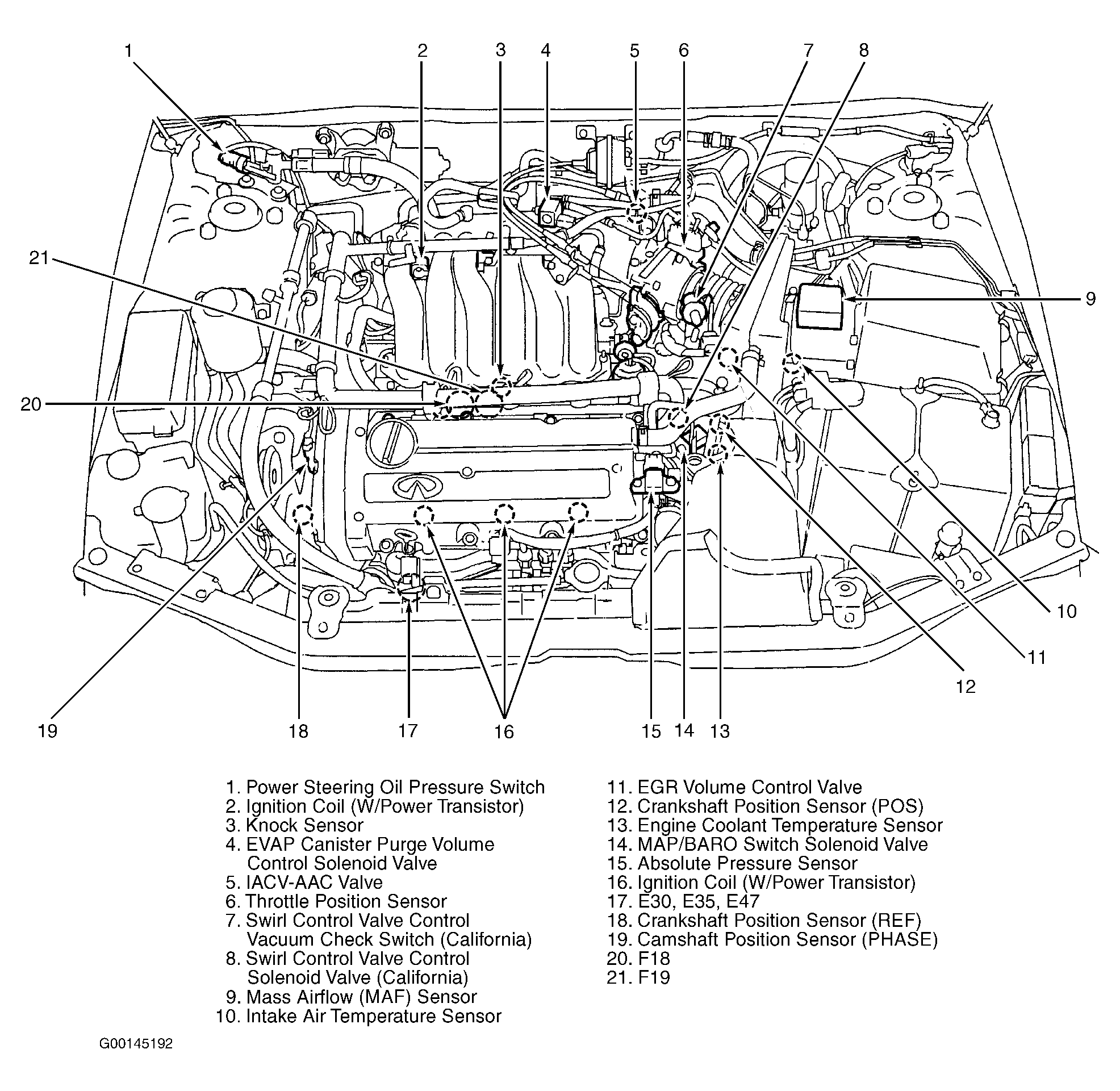

Fig 1: Engine Compartment

Fig 2: Vehicle Overview (Front)

Fig 3: Vehicle Overview (Rear)

Fig 4: Dash

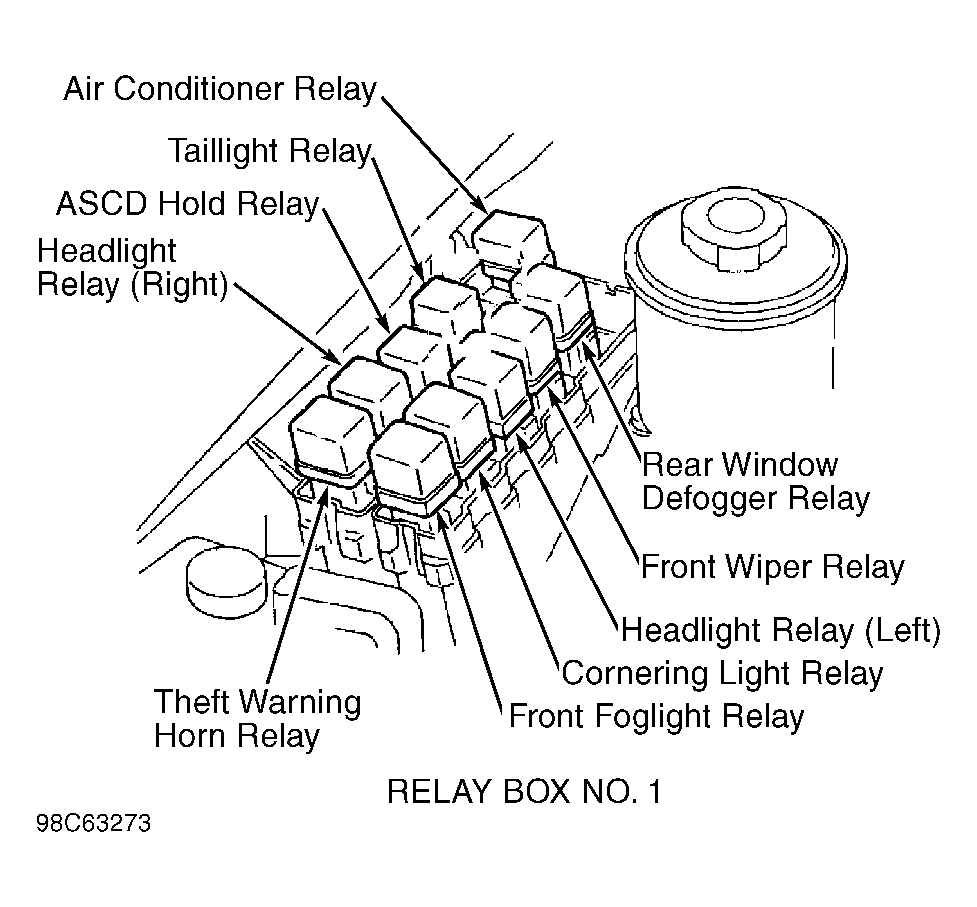

Fig 5: Relay Box No. 1

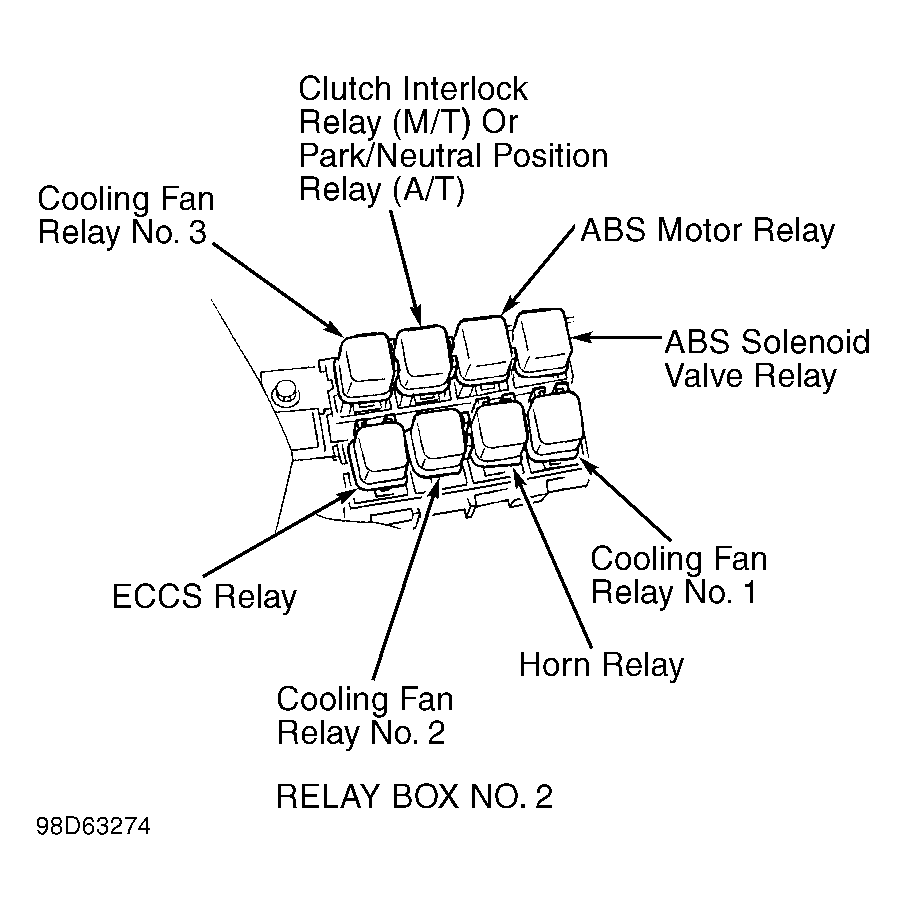

Fig 6: Relay Box No. 2
