Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

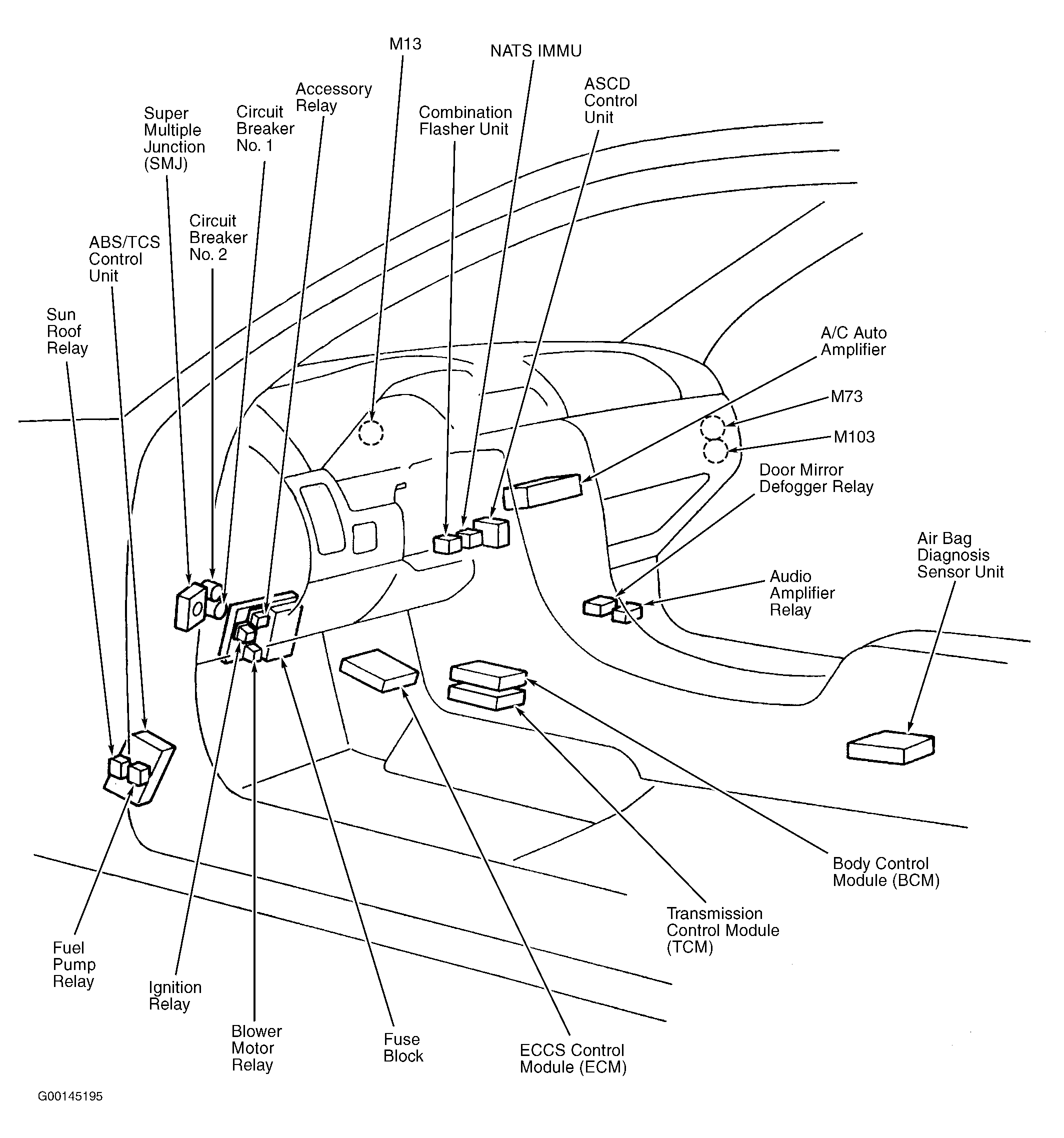

Circuit Breaker No. 1 Behind left side of dash. See Figure .
Circuit Breaker No. 2 Behind left side of dash. See Figure .

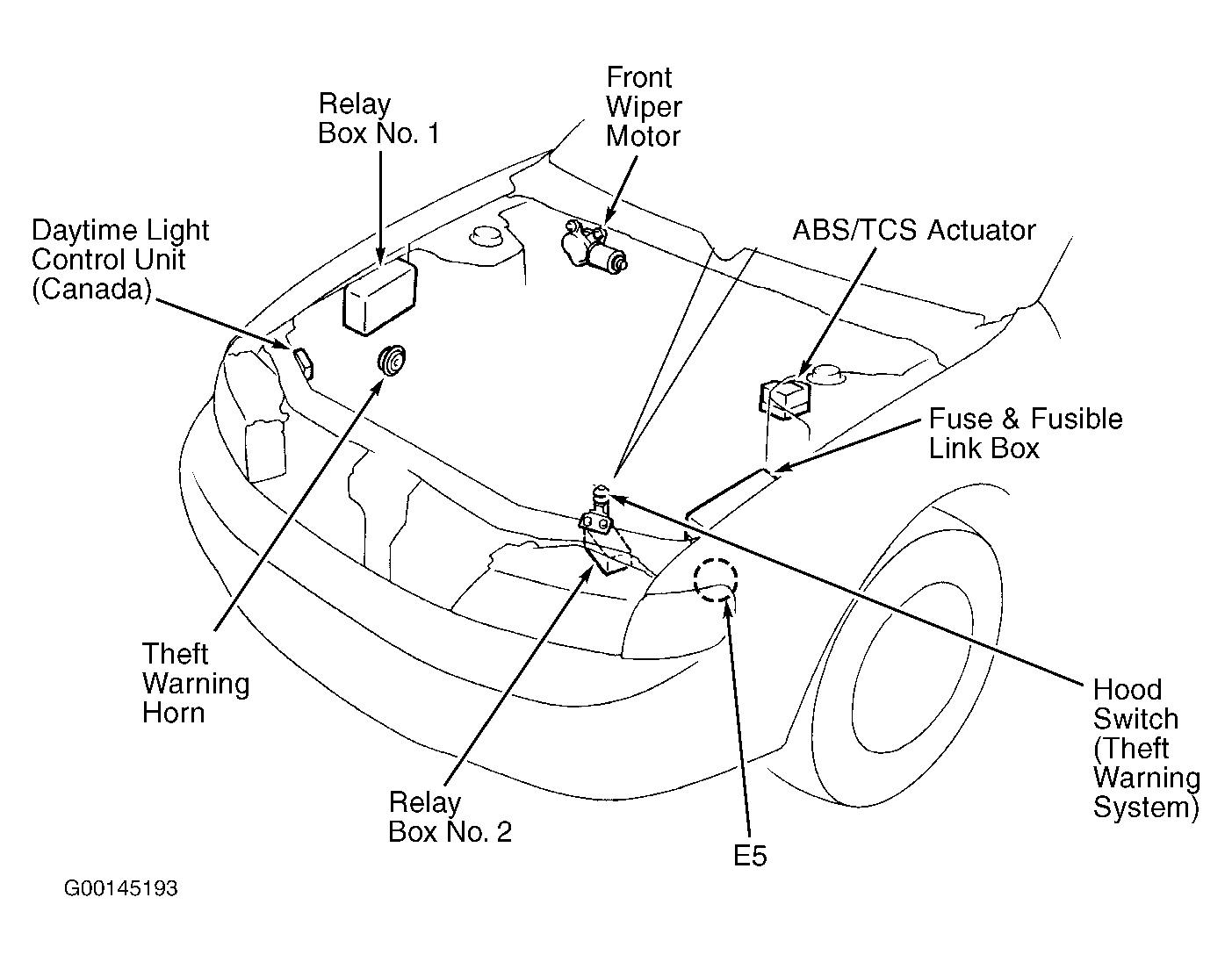

Fuse & Fusible Link Box Left side of engine compartment. See Figure .
Fuse Block Behind left side of dash. See Figure .
Relay Box No. 1 Right side of engine compartment. See Figure .
Relay Box No. 2 Left front corner of engine compartment. See Figure .
