Home >> Infiniti >> 1998 >> QX4 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes 3.3L >> Diagnostic Tests >> DTC P1447: EVAP System Purge Flow Monitoring >> Diagnostic Procedure

Diagnostic Procedure

  1. Check EVAP canister for cracks or damage. Check all vacuum connections for clean, tight fit. See Fig 1. Repair or replace as necessary. If no faults are found, go to diagnostic test DTC P0440: EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM LEAK .

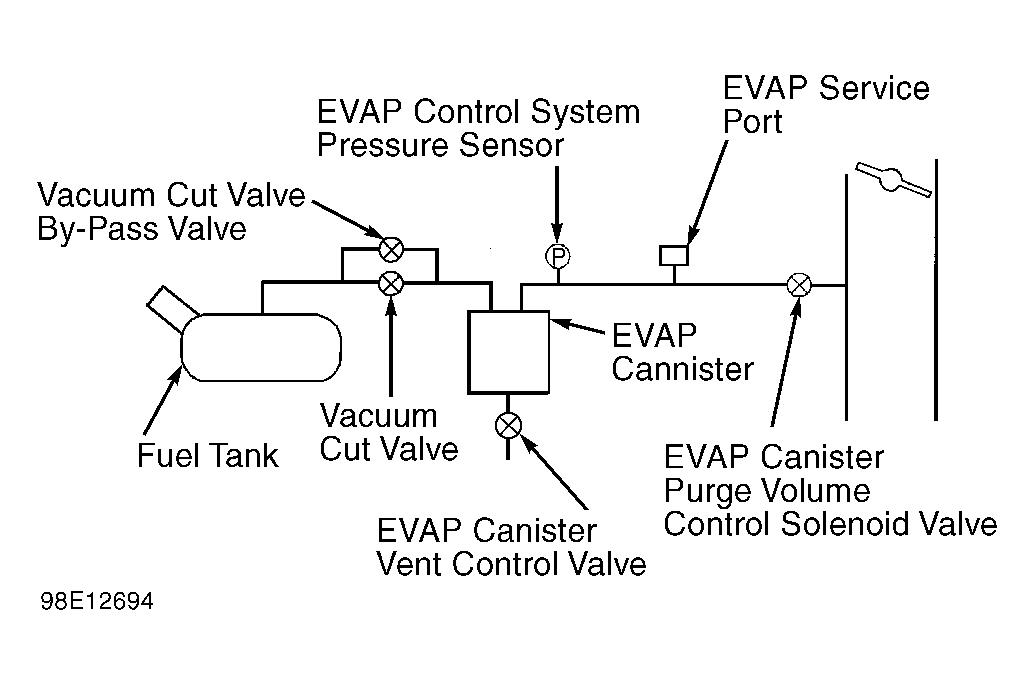

Fig 1: EVAP System Component Schematic
G98E12694Courtesy of NISSAN MOTOR CO., U.S.A.
