Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||||
|---|---|---|---|---|---|---|

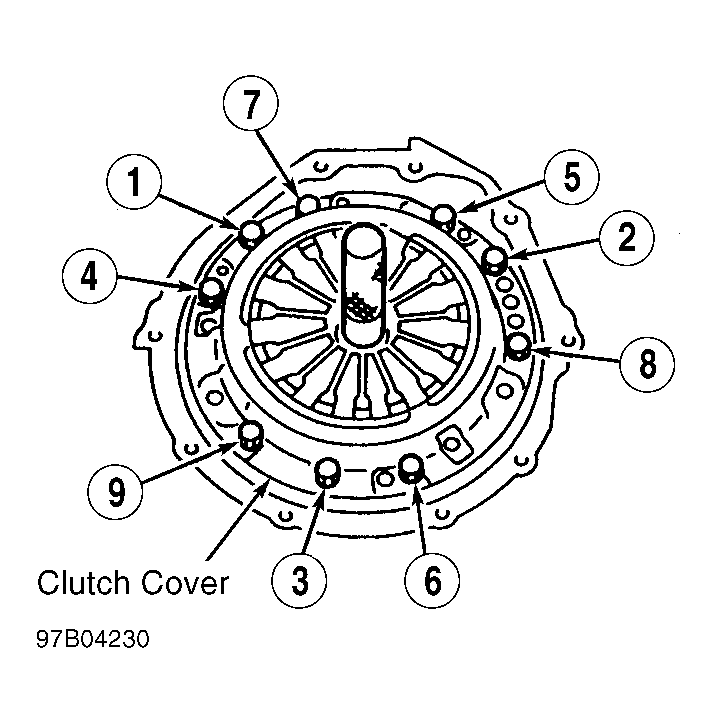

| Clutch Cover Retaining Bolts (1) | ||||||
| First Pass | 7-14 (10-20) | |||||
| Second Pass | 25-33 (34-44) | |||||
| Clutch Release Cylinder | 22-30 (30-41) | |||||
| Exhaust Pipe-To-Manifold Nut | 30-35 (41-47) | |||||
| Flywheel Retaining Bolts | 61-69 (83-93 | |||||
| Shift Rod Bolts | 26-35 (35-47) | |||||
| Support Rod Bolts | 10-13 (14-18) | |||||

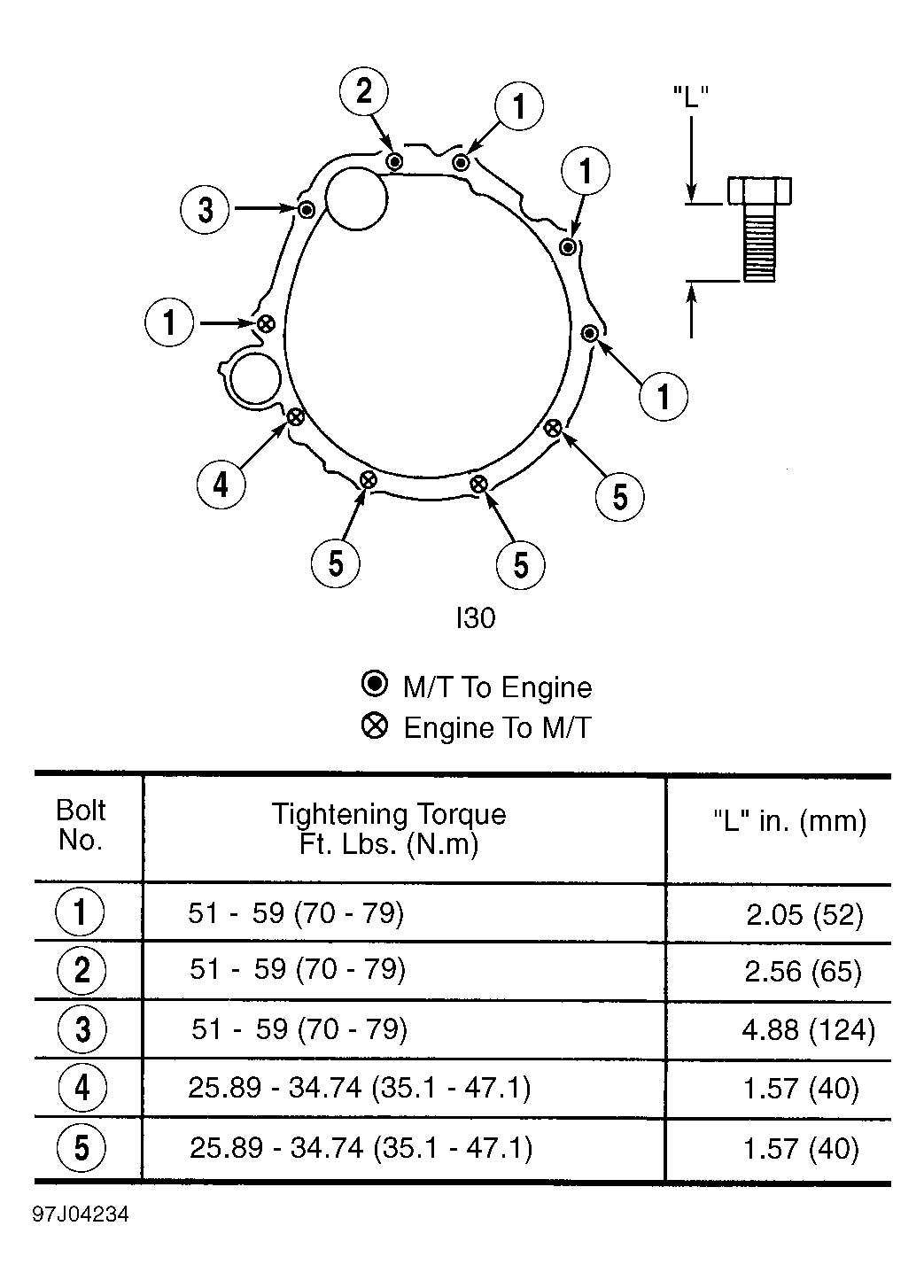

| Transaxle-To-Engine Bolts | (2) | |||||
| Wheel Bearing Lock Nut | 173-232 (235-314) | |||||
| Wheel Lug Nut | 72-87 (98-118) | |||||
| INCH Lbs. (N.m) | ||||||
| Clutch Master Cylinder Nuts | 71-97 (8-11) | |||||
|
||||||
