Power Steering Pump: Disassembly

  1. Ensure pump housing is cleaned before disassembly. Remove pulley nut and pulley. Remove mounting bracket from front of pump (if equipped). Remove suction pipe and "O" ring.
    CAUTION: Mark internal components for installation purposes.

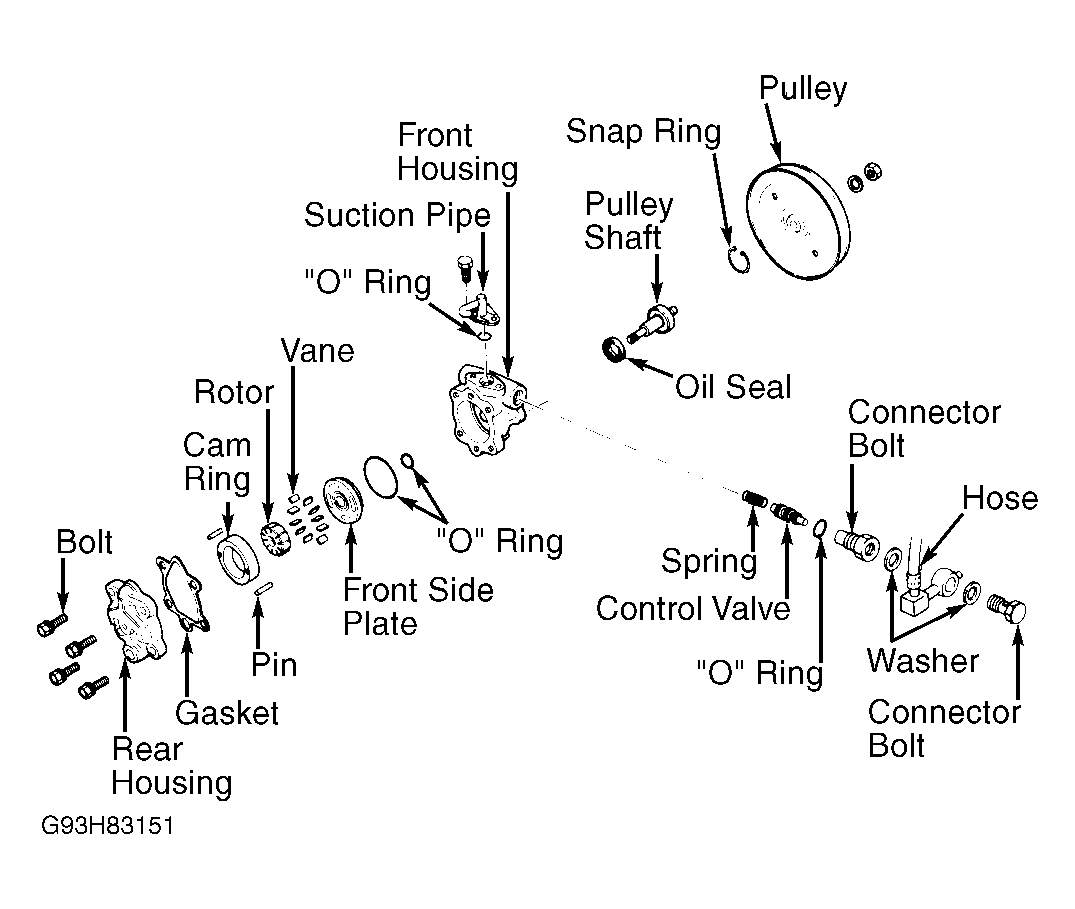

  2. Remove pulley shaft retaining snap ring. Remove pulley shaft and bearing. Remove oil seal from housing. See Figure-5. Note seal installation direction.
  3. Remove r ear cover bolts. Remove rear cover and gasket. Mark direction of cam ring, rotor and vane for installation reference. Remove rotor, vanes, cam ring and pins.
  4. Remove front side plate and "O" rings. Remove housing spring or wave washers (if equipped). Remove connector, control valve, "O" ring (if equipped) and spring from housing.
