Essential Tool: Throttle Position Sensor Test Connector (ITB01-015)

Publication date: 2001-04-25
Reference number: ITB01-015

ESSENTIAL TOOL: THROTTLE POSITION SENSOR TEST CONNECTOR

TECHNICAL SERVICE BULLETIN

Reference Number(s): ITB01-015, Date of Issue: April 25, 2001

INFINITI:	1996-1998 I30; 1997-1998 QX4
CLASSIFICATION:	TE01-002
SECTION:	Tools and Equipment
APPLIED VEHICLE(S):	1996-1998 I30 (CA32); 1997-1998 QX4 (JR50)

SERVICE INFORMATION

A new Essential Tool (Kent-Moore J-45178) has been released. This tool (see Fig 1 ) is designed to provide a quick and easy way to connect a Digital Volt Ohm Meter (DVOM) to the Throttle Position Sensor (TPS) for adjustment readings.

Fig 1: Throttle Position Sensor Test Connector

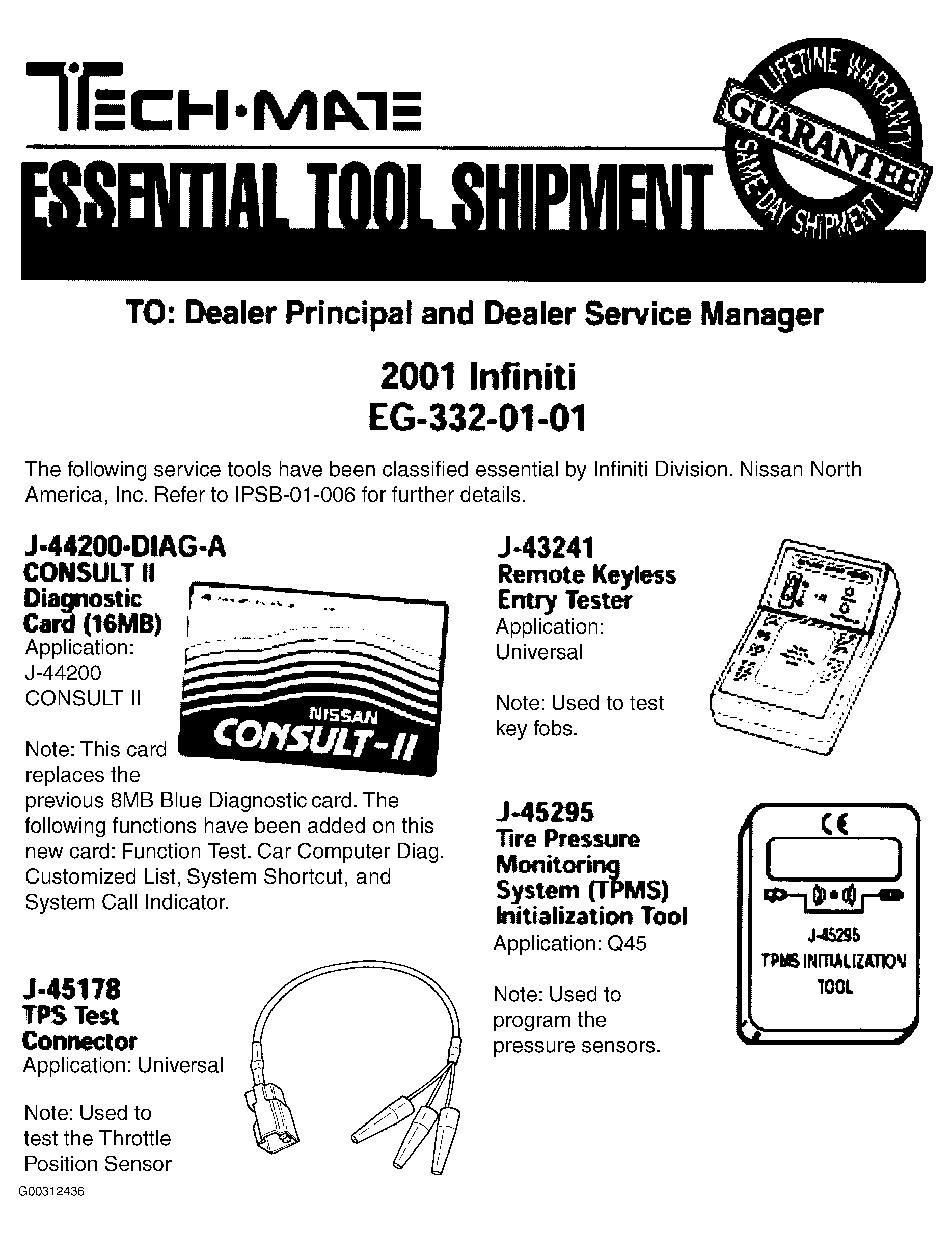

See Fig 2 for a copy of the flyer that was included in the shipment of the special tool to your dealership.

Fig 2: Essential Tool Shipment Flyer
