Diagnostic Procedure 4: Interior Light Function Inoperative
Diagnostic Procedure 4: Interior Light Function Inoperative

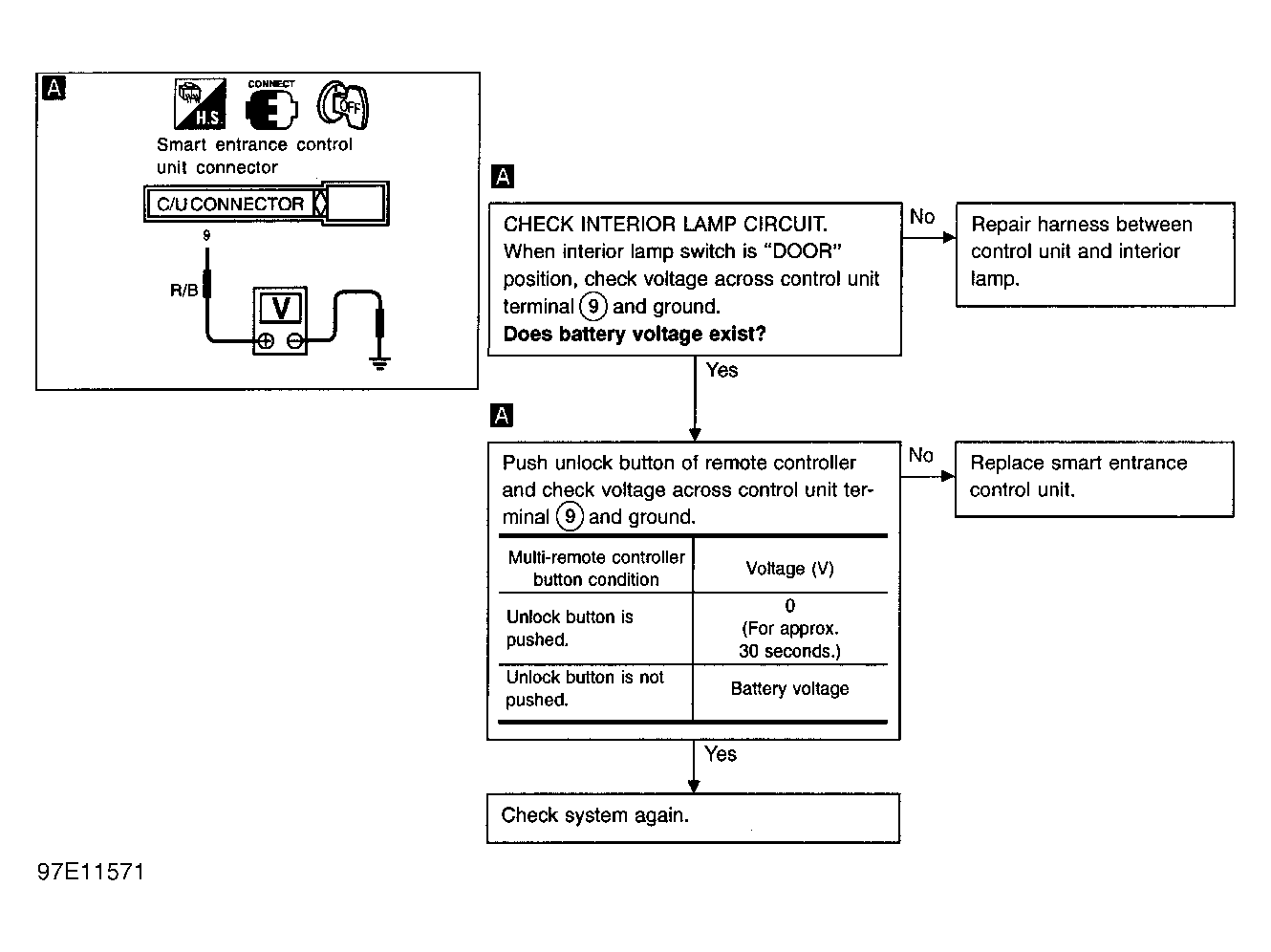

Fig 1: Diagnostic Procedure 4 - Interior Light Function Inoperative
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
