Electrical Component Locator: Grounds
GROUNDS
| Component | Component Location |
|---|---|
| B16 | At right "B" pillar. |
| B19 | At left "B" pillar. |
| B56 | At right "C" pillar. See Figure . |
| B57 | At left "B" pillar. |
| B63 | At right "B" pillar. |
| B64 | Under right front seat. |

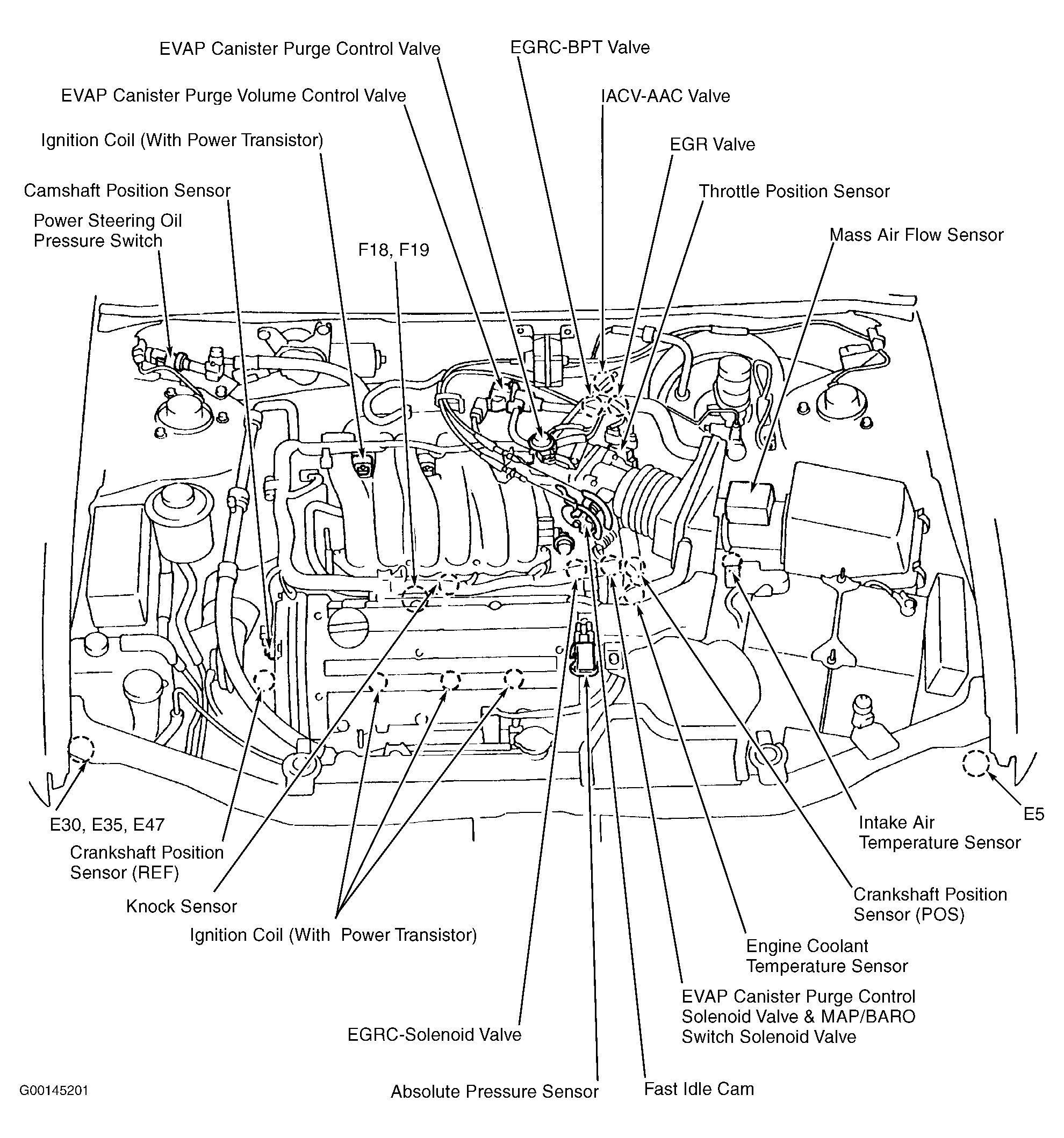

| E5 | At left front of engine compartment. See Figure . |
| E30 | At right front of engine compartment. See Figure . |
| E35 | At right front of engine compartment. See Figure . |
| E37 | At right front of engine compartment. |
| E47 | At right front of engine compartment. See Figure . |

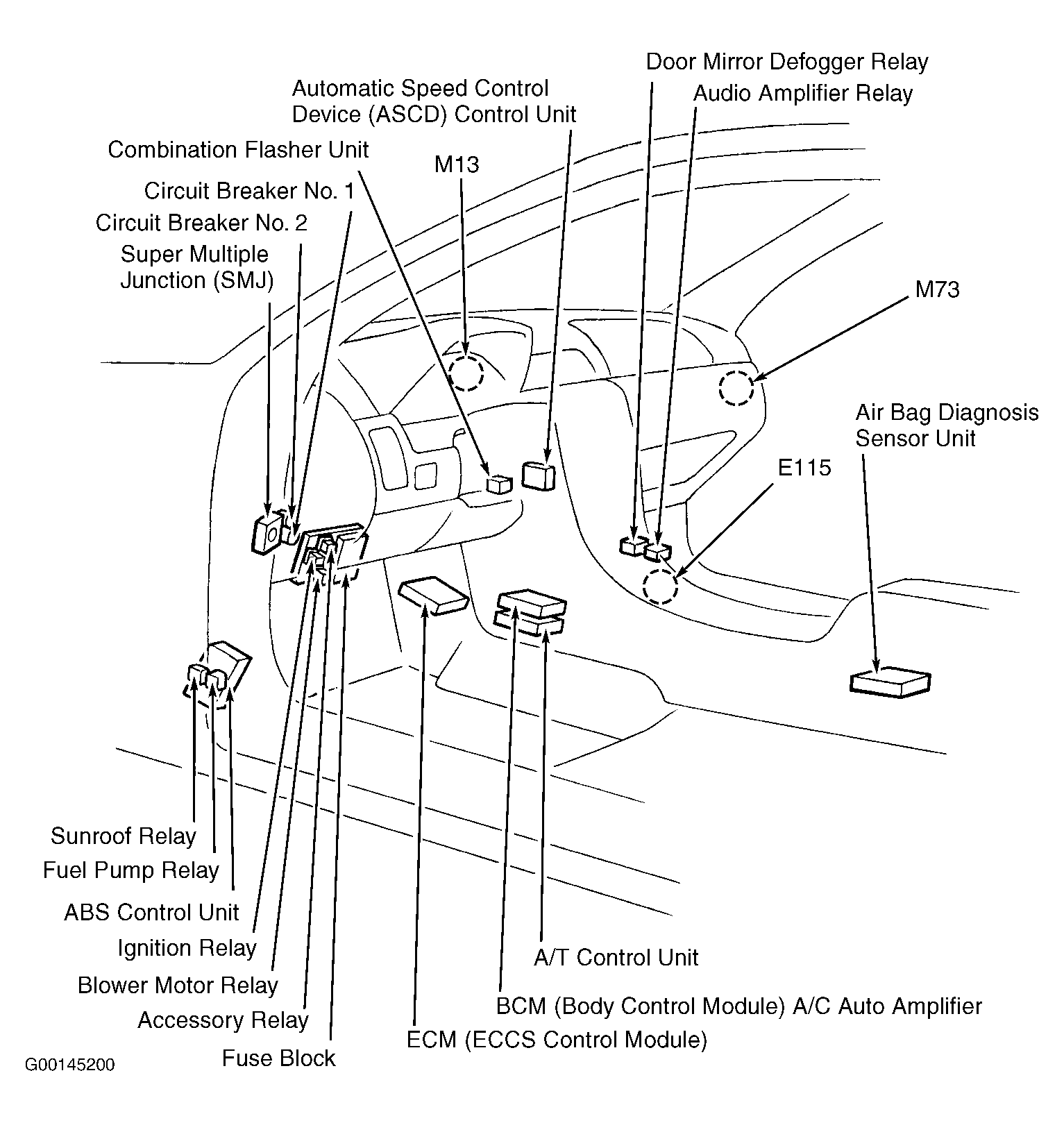

| E115 | Under right front of center console. See Figure . |
| F18 | At right front of left cylinder head cover. See Figure . |
| F19 | At right front of left cylinder head cover. See Figure . |
| M13 | Behind instrument cluster. See Figure . |
| M64 | Under right front seat. |
| M73 | At right end of dash. See Figure . |
| T6 | Below luggage compartment latch. See Figure . |
| T9 | Below and right of luggage compartment latch. See Figure . |
