Home >> Infiniti >> 1996 >> J30 Base >> Repair and Diagnosis >> Suspension >> Front Suspension >> Description

Front Suspension: Description

This model uses MacPherson struts and a stabilizer bar. See Fig 1 .

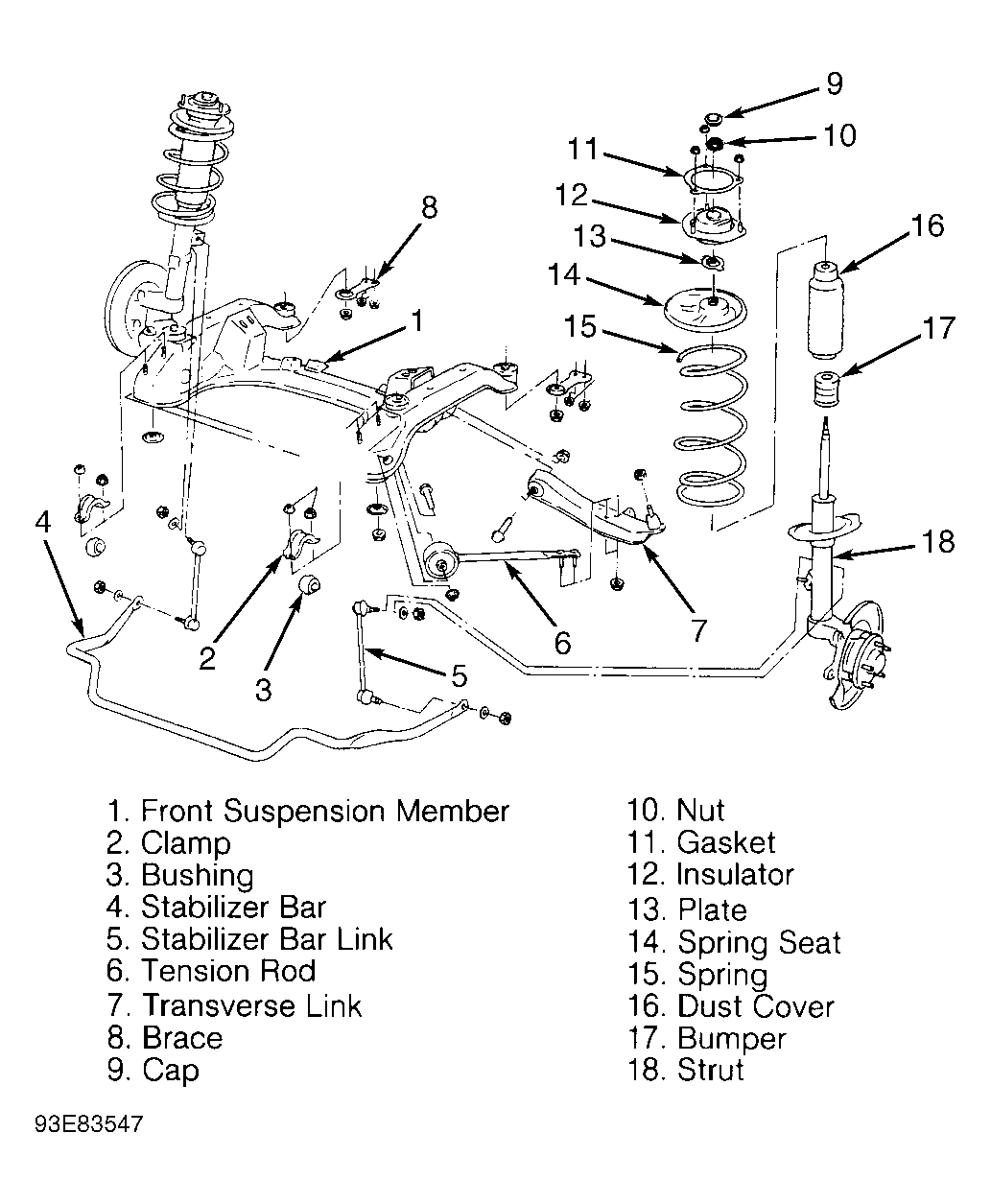

Fig 1: Exploded View Of Front Suspension
G93E83547Courtesy of NISSAN MOTOR CO., U.S.A.
