| Accel-Drum Unit Bolt |
|
| Automatic Tensioner Bolt/Nut |
12-15 (16-20) |
| Camshaft Sprocket Bolt |
| Exhaust Camshaft |
11-14 (15-19) |
| Intake Camshaft |
91-97 (123-132) |
| Center Idler Pulley Nut |
32-43 (43-58) |
| Connecting Rod Nut |
| Step 1 |
12 (16) |
| Step 2 |
Tighten Additional 60-65 Degrees |
| Coolant Inlet Bolt |
12-14 (16-19) |
| Coolant Outlet Bolt |
12-14 (16-19) |
| Crankshaft Position Sensor Bracket Bolt |
12-15 (16-20) |
| Crankshaft Pulley Bolt |
159-174 (216-236) |

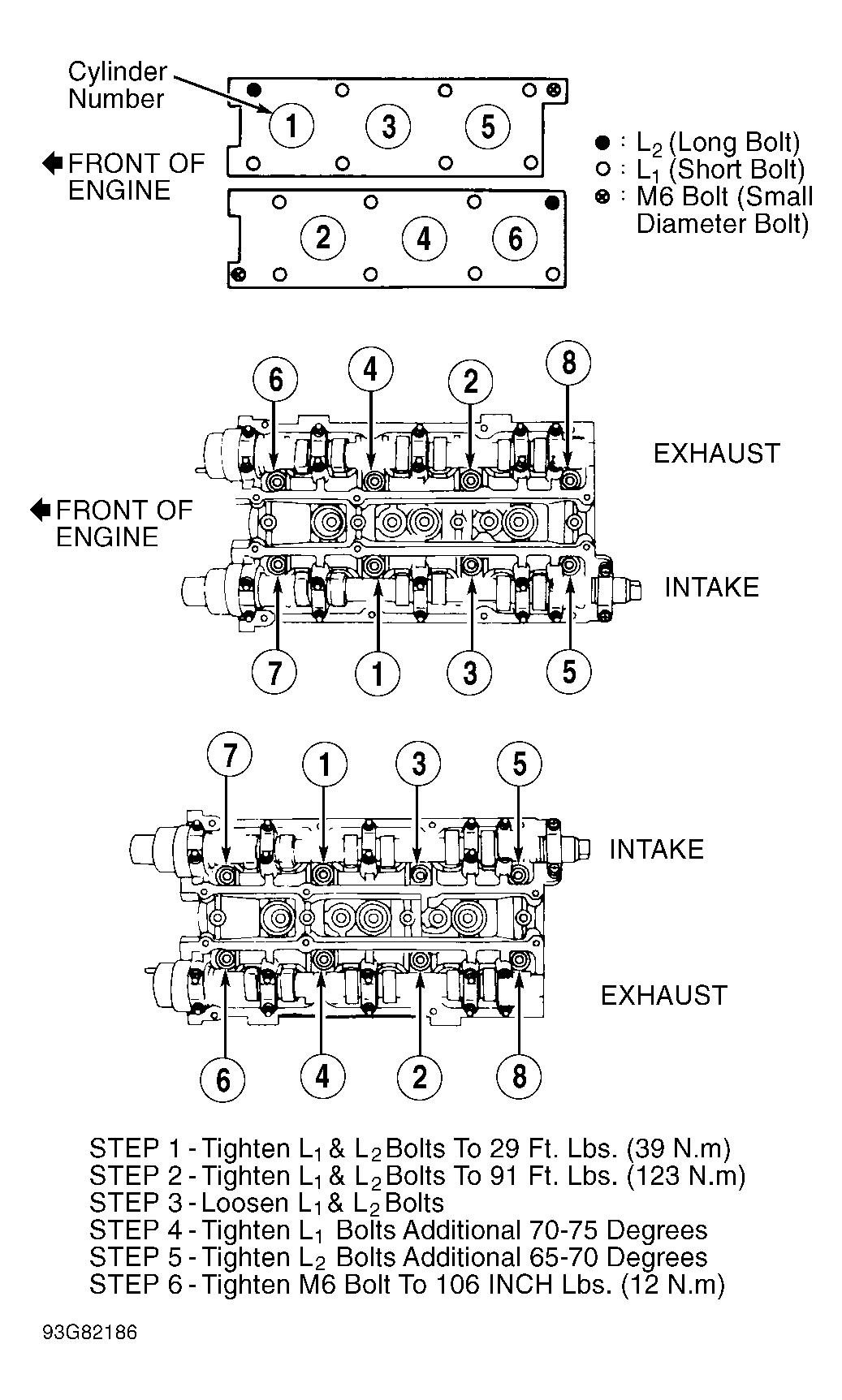

| Cylinder Head Bolt |
|
| Drive Shaft Flange Bolt |
41-48 (56-65) |
| EGR Valve Bolt |
15-20 (20-27) |
| Engine Mount-To-Frame Nut |
41-49 (56-66) |
| Exhaust Manifold Nut |
18-20 (24-27) |
| Flywheel Bolt |
61-69 (83-94) |
| Idler Pulley Nut |
32-43 (43-58) |
| Intake Manifold Bolt/Nut |
| Bolt |
| Step 1 |
|
| Step 2 |
12-14 (16-19) |
| Nut |
| Step 1 |
|
| Step 2 |
17-20 (23-27) |
| Intake Manifold Collector Bolt |
12-15 (16-20) |

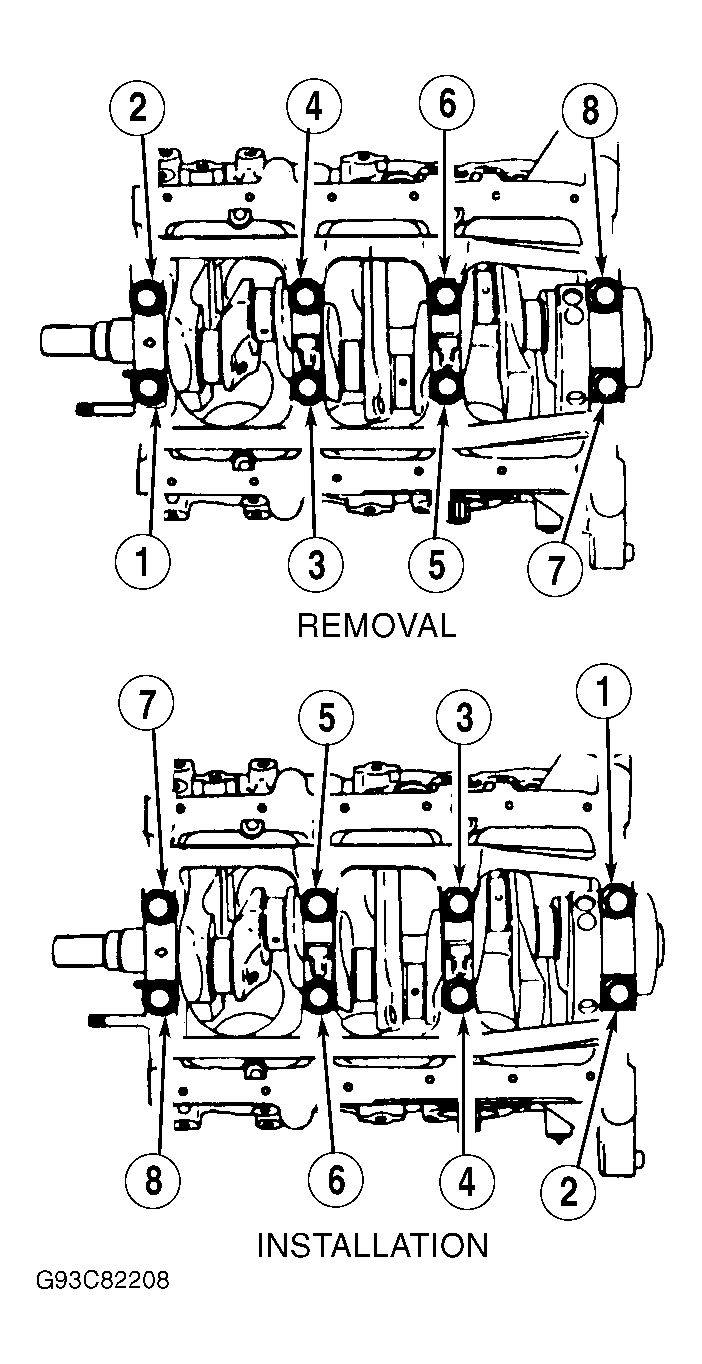

| Main Bearing Beam Bolt |
67-74 (91-100) |
| Oil Pump Pick-Up Tube-To-Oil Pump Bolt |
12-15 (16-20) |
| Oil Pump-To-Cyl. Block Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
16-22 (22-30) |
| Regulator Valve Plug |
29-51 (39-69) |
| Stabilizer Bar Link-To-Stabilizer Bar Nut |
55-66 (75-90) |
| Stabilizer Bar-To-Frame Bracket Nut |
41-51 (56-69) |
| Throttle Body Bolt |
|
| Torque Converter Bolt |
| Bolt With Flange |
33-43 (45-58) |
| Bolt Without Flange |
29-36 (39-49) |
| Transmission Crossmember Bolt |
38-48 (52-65) |
| Transmission Mount-To-Crossmember Nut |
26-33 (35-45) |
| Transmission Support Brace-To-Cylinder Block Bolt |
21-29 (29-39) |
| Transmission-To-Cylinder Block Bolt |
| .98" (25 mm) Long Bolt |
22-29 (30-39) |
| All Others |
29-36 (39-49) |
| Valve Timing Control Solenoid Valve Bolt |
12-18 (16-24) |
| Water Pump Bolt |
12-15 (16-20) |
| INCH Lbs. (N.m) |

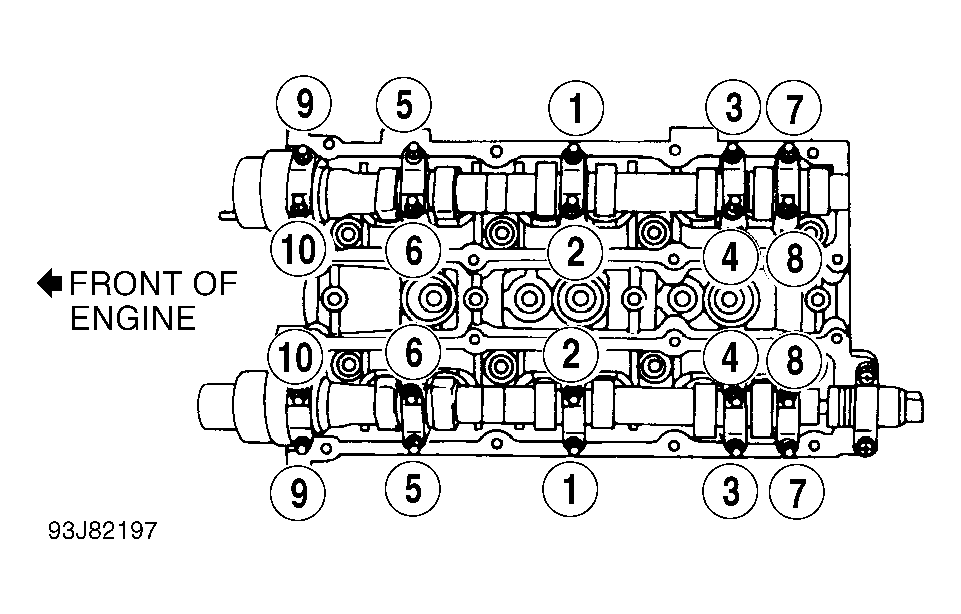

| Camshaft Bearing Cap Bolt |
97 (11) |
| Crankshaft Position Sensor Bolt |
44 (5) |
| Front Plate Bolt |
18 (2) |
| Fuel Injector Clamp Bolt |
27 (3) |
| IACV Valve Bolt |
97 (11) |

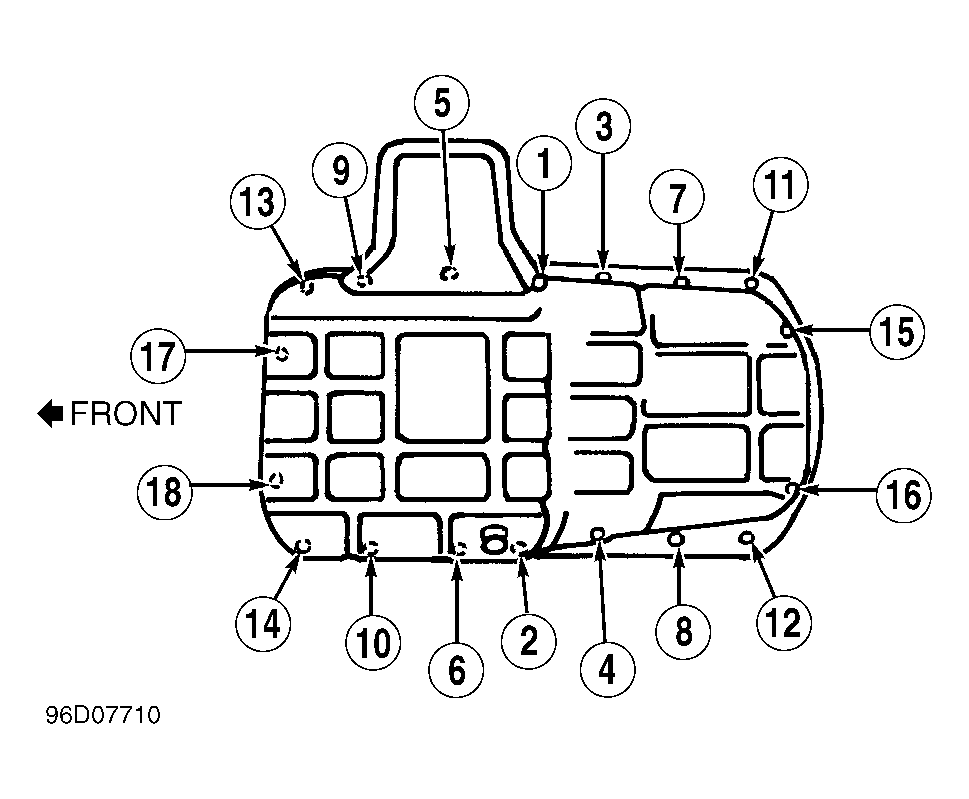

| Oil Pan Bolt |
71 (8) |
| Oil Pump Cover Screw |
44 (5) |
| Oil Pump Pick-Up Tube Support Brace Bolt |
71 (8) |
| Timing Belt Cover Bolt |
| Upper & Lower Timing Belt Covers |
27 (3) |
| Timing Belt Rear Cover Bolt |
53 (6) |
| Valve Cover Bolt/Screw |
| Exhaust Camshaft Valve Cover Bolt |
71 (8) |
| Intake Camshaft Valve Cover Screw |
27 (3) |
