Engine Lubrication System: Notes

Crankshaft driven oil pump provides pressurized lubrication for engine oiling. See Fig 1 .

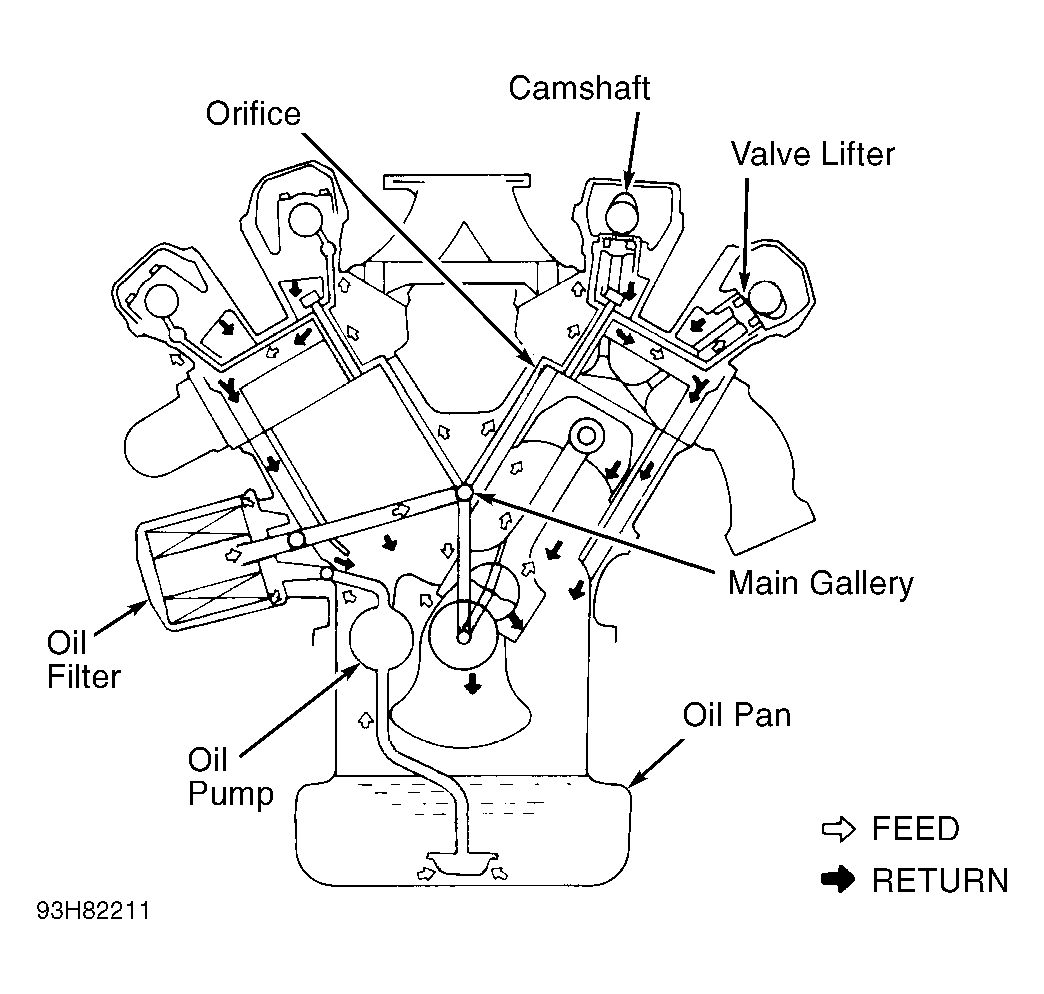

Fig 1: Cross-Sectional View Of Engine Oil Circuit
G93H82211Courtesy of NISSAN MOTOR CO., U.S.A.
