Diagnostic Procedure 2 - No Remote Control Functions
Diagnostic Procedure 2 - No Remote Control Functions

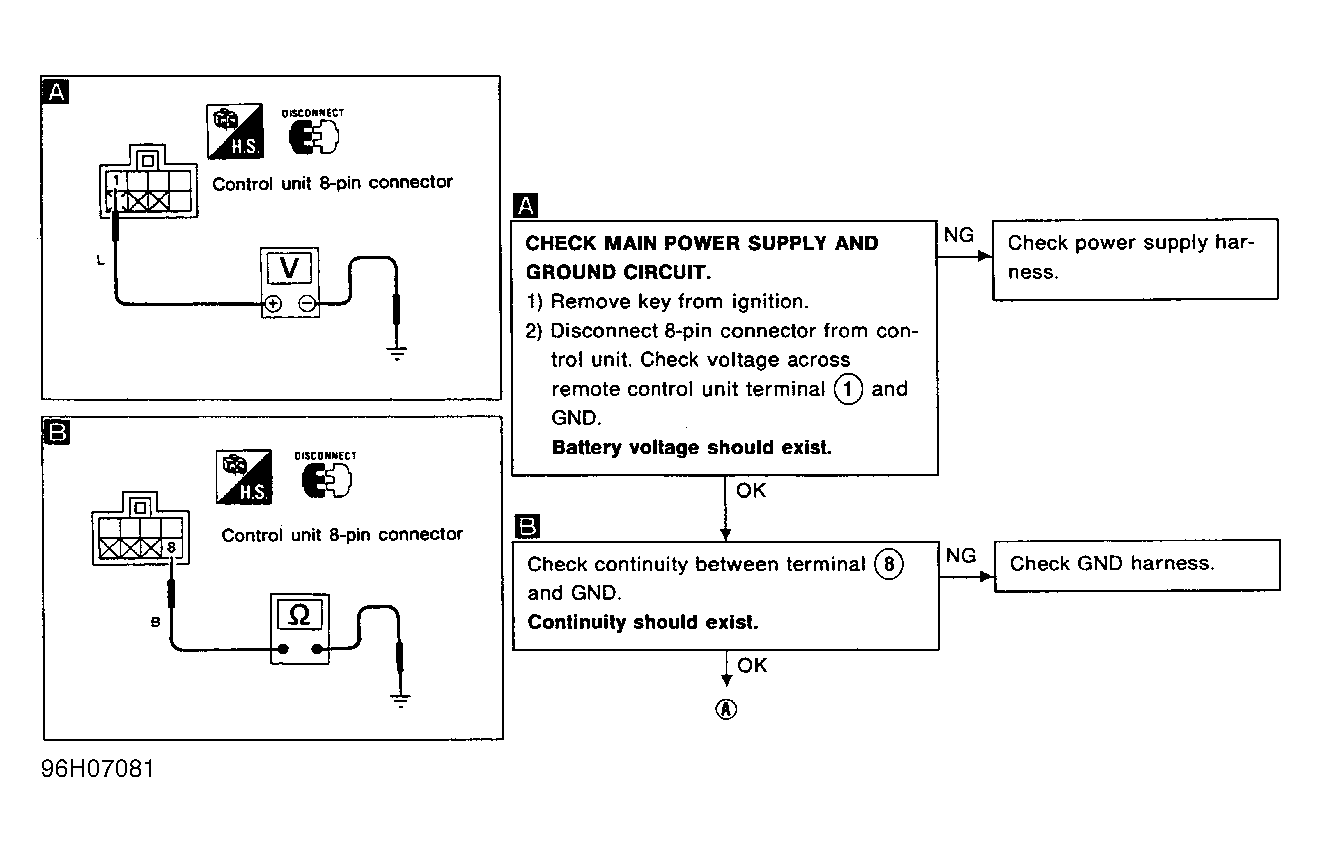

Fig 1: Diagnostic Procedure 2 (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

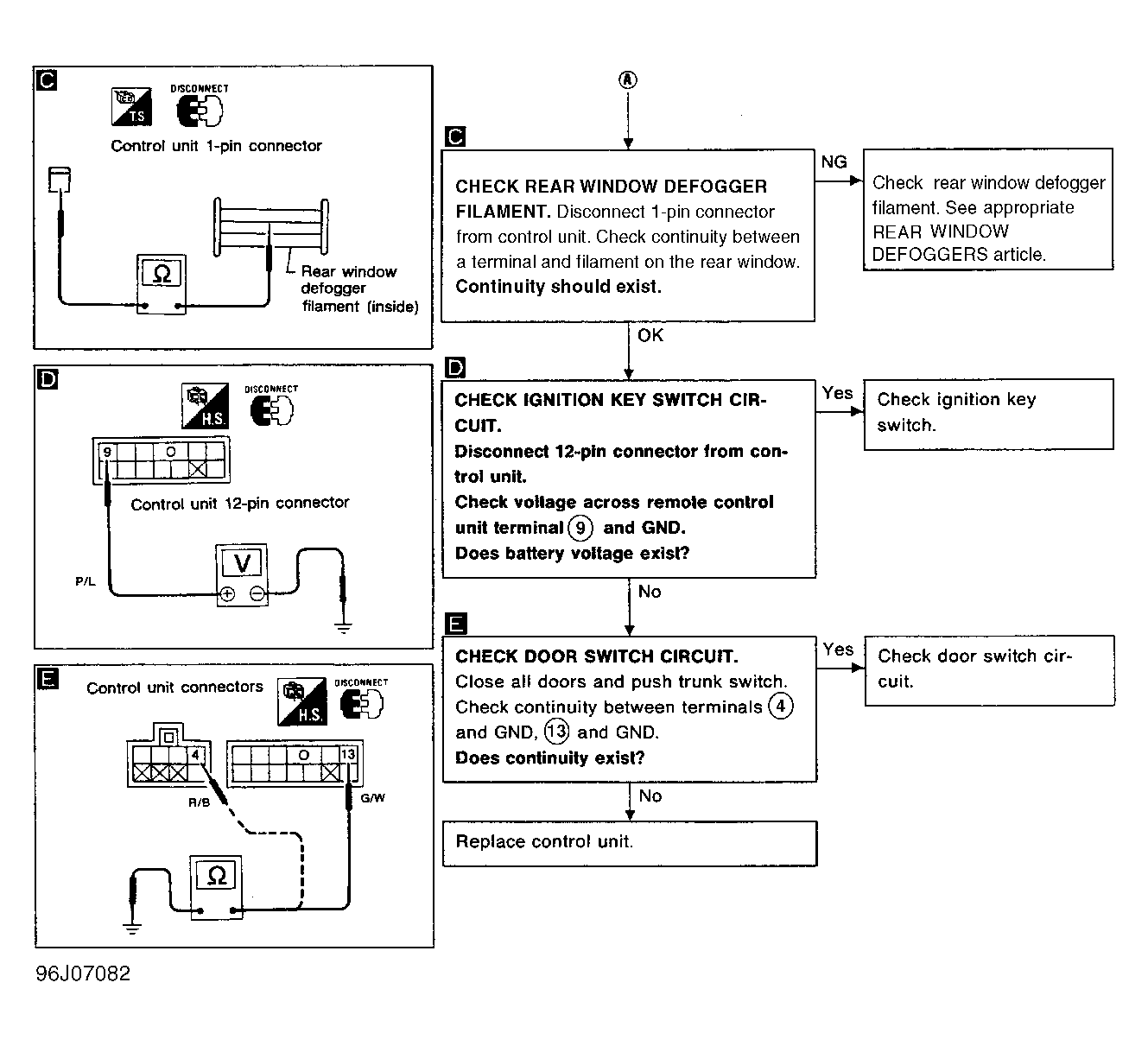

Fig 2: Diagnostic Procedure 2 (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
