Alternator & Regulator: Overhaul

NOTE: Overhaul information not available at time of publication. Use exploded views as guide for overhaul. See Fig 1 .

NOTE: A ring is used to lock outer bearing race in alternator's rear cover. It may be necessary to heat bearing housing to remove cover. Use a 200-watt soldering iron to heat housing. DO NOT use heat gun, as it may damage diode.

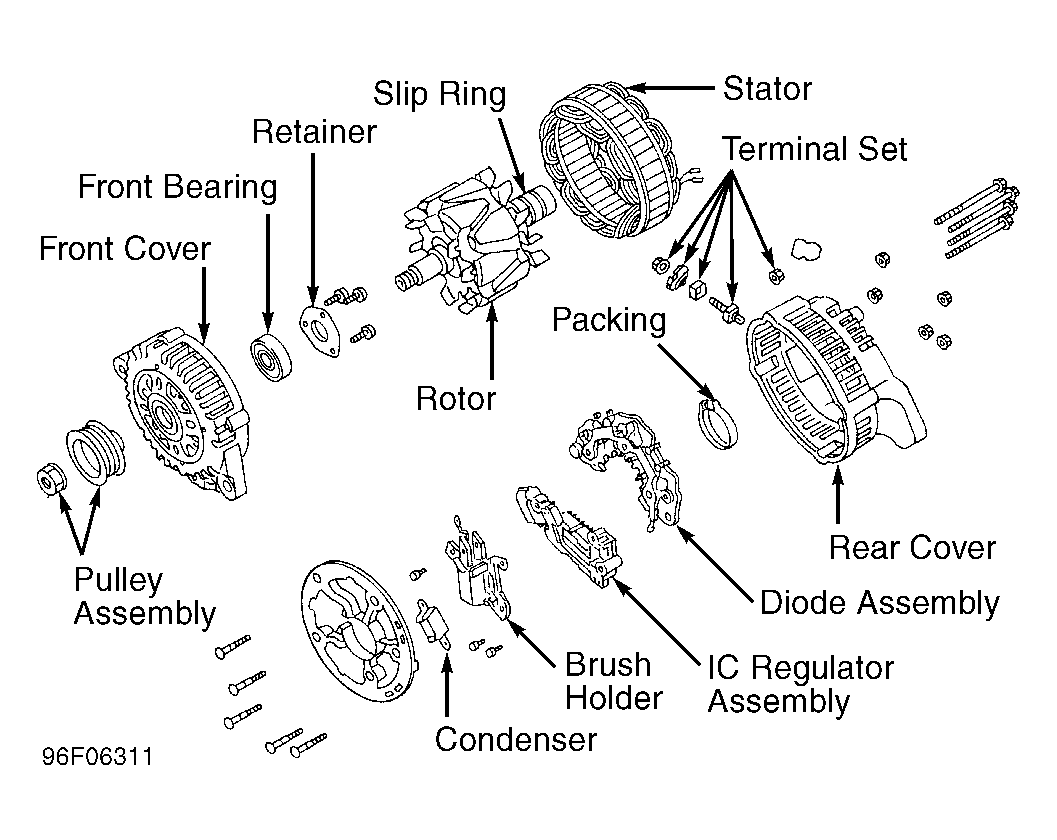

Fig 1: Exploded View Of Hitachi Alternator

Courtesy of NISSAN MOTOR CO., U.S.A.
