Diagnostic Procedure 3 - Remote Control Door Lock/Unlock Function Inoperative
Diagnostic Procedure 3 - Remote Control Door Lock/Unlock Function Inoperative

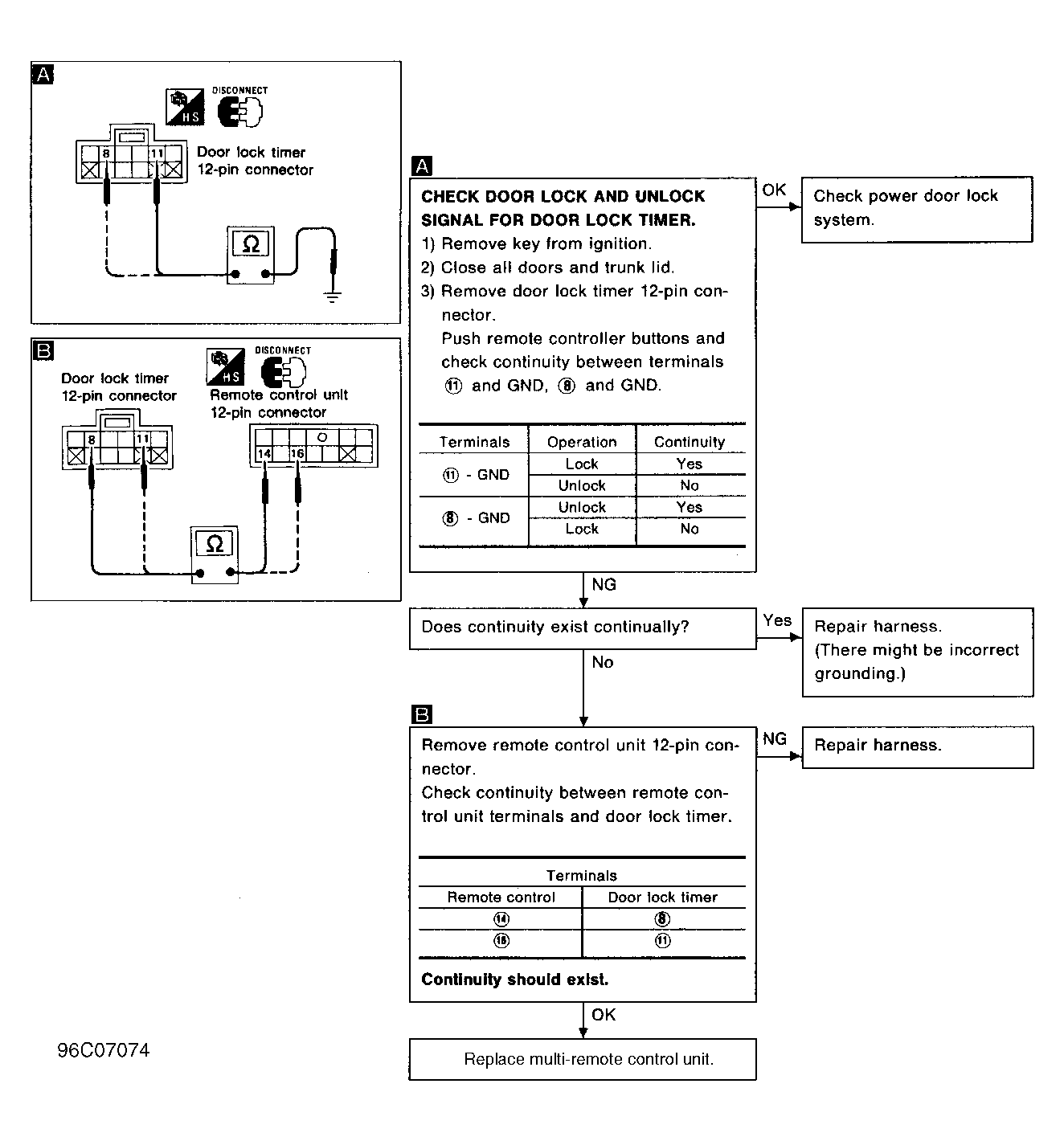

Fig 1: Diagnostic Procedure 3
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
