Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

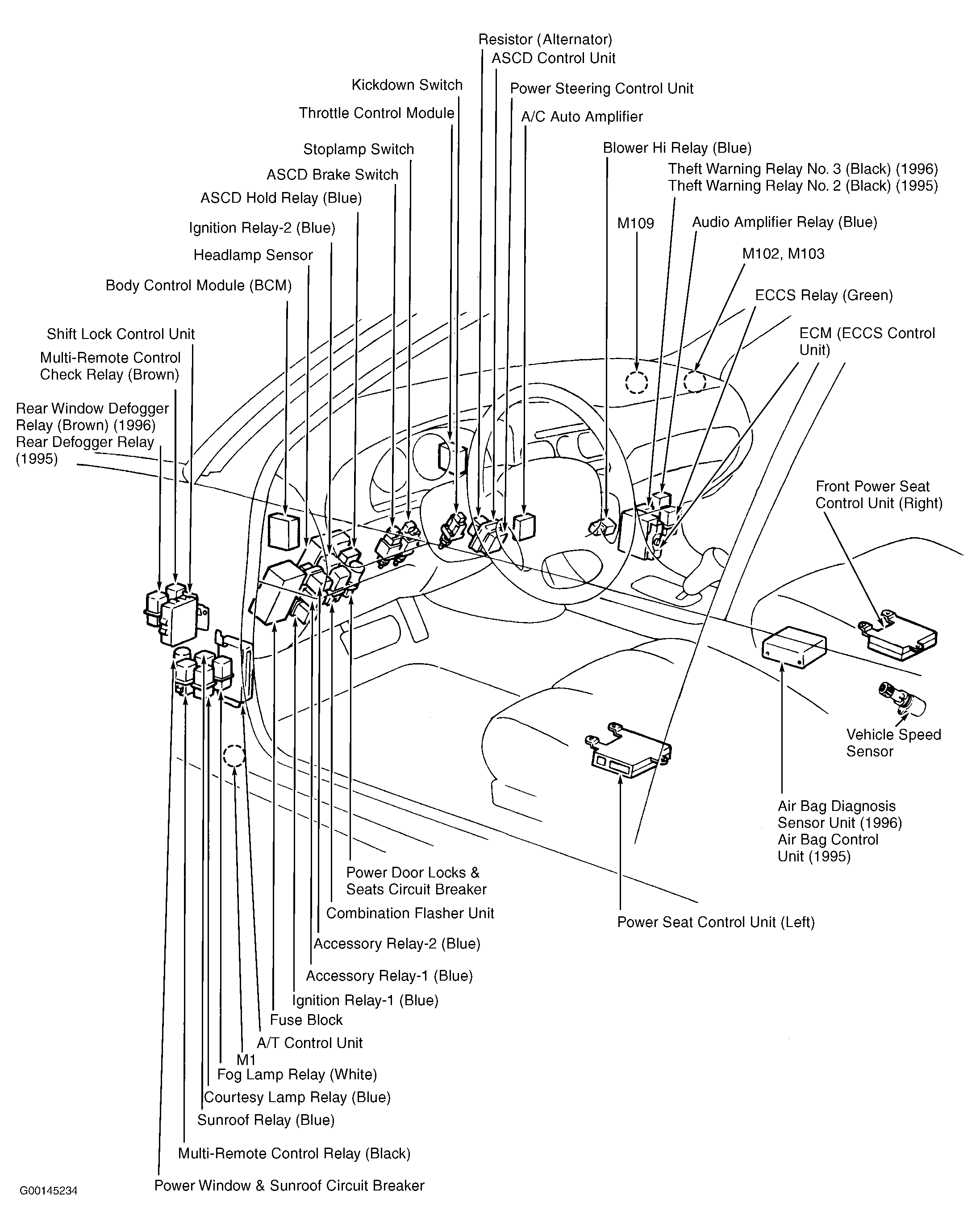

Fuse Block Behind access panel, to left of steering column. See Figure .

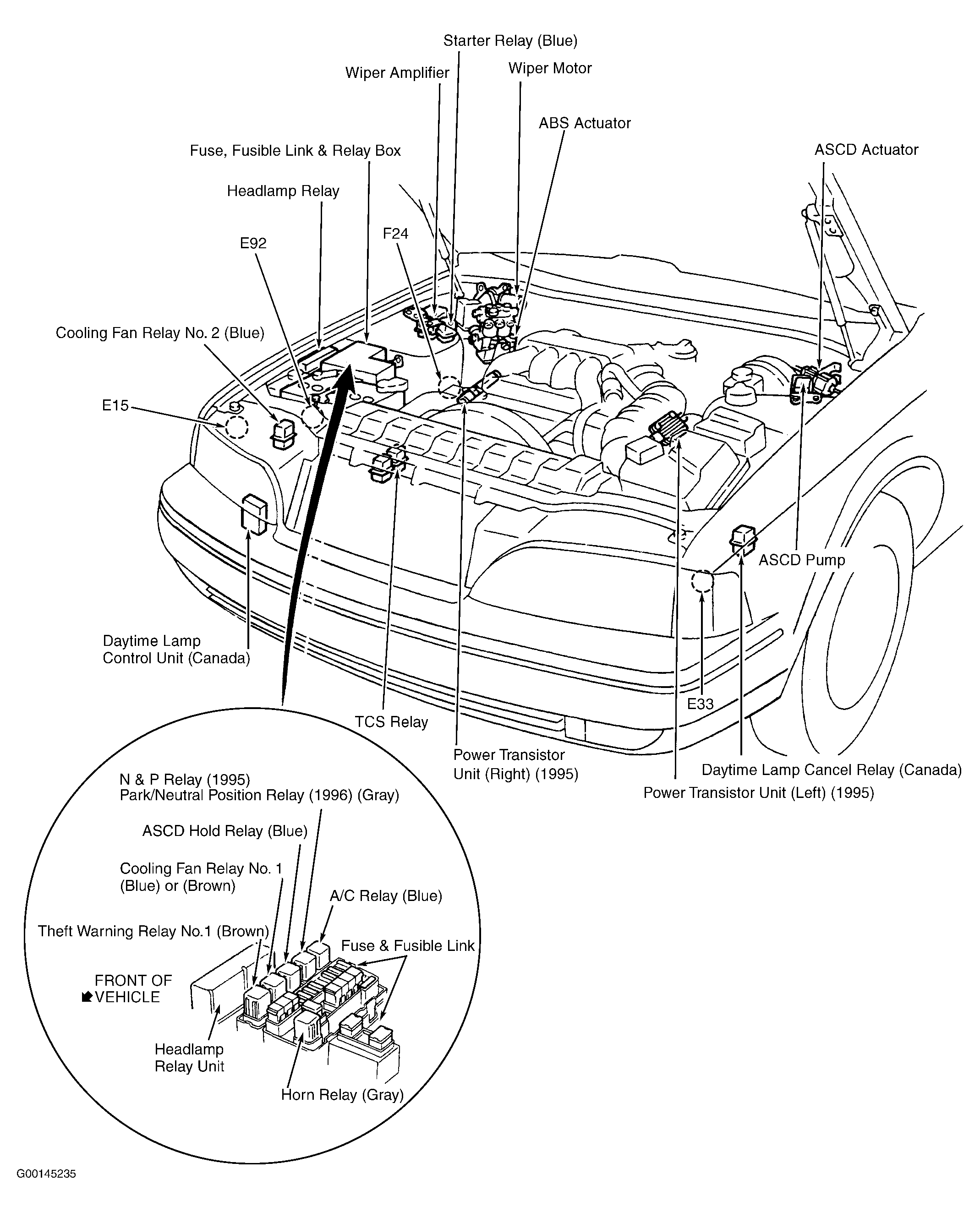

Fuse, Fusible Link & Relay Box In right front side of engine compartment, near battery. See Figure .
Fusible Links In fuse/relay block, near battery.
Power Door Locks & Seats Circuit Breaker In relay block, behind left side of dash. See Figure .
Power Window & Sunroof Circuit Breaker Behind left kick panel. See Figure .
Relay Block (Passenger) Behind left side of dash.
