DTC 35: EGR Temperature Sensor (CALIF.)

1. Check Power Supply

   Turn ignition off and disconnect EGR temperature sensor harness connector. Turn ignition on. Measure voltage between EGR temperature sensor connector terminal "B" (Brown wire) and ground. See Fig 1 and Fig 2 . If voltage is approximately 5 volts, go to next step. If voltage is not as specified, repair harness or connectors as necessary.
2. Check Ground Circuit

   Turn ignition off. Verify harness continuity between EGR temperature sensor connector terminal "A" (Orange/Blue wire) and engine ground. See Fig 3 . If continuity is present, go to next step. If continuity is not present, verify harness continuity between EGR temperature sensor terminal "A" and ECM terminal No. 30 (Orange/Blue wire), and between automatic transmission control unit terminal No. 35 (48-pin connector located on driver side kick panel) and EGR temperature sensor terminal "A" (Orange/Blue wire). If continuity is not present, repair harness or connectors as necessary.
3. Check Component

   Inspect EGR temperature sensor. See the article SYSTEM/COMPONENT TESTS . Replace EGR temperature sensor if necessary and perform FINAL CHECK  .

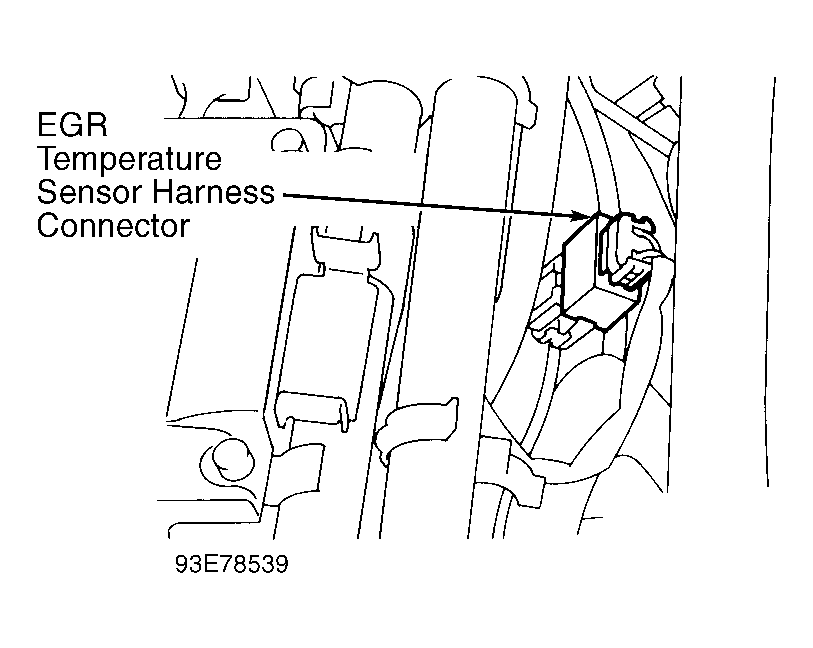

Fig 1: Locating EGR Temperature Sensor Connector (J30)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: DTC 35, Checking Power Supply (J30)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: DTC 35, Checking Ground Circuit (J30)

Courtesy of NISSAN MOTOR CO., U.S.A.
