HICAS Control Unit

HICAS control unit is located in trunk in center under package tray. Using an analog voltmeter, measure voltage of HICAS control unit between ground and indicated terminal. See CONTROL UNIT INSPECTION table. See Fig 1 and Fig 2 .

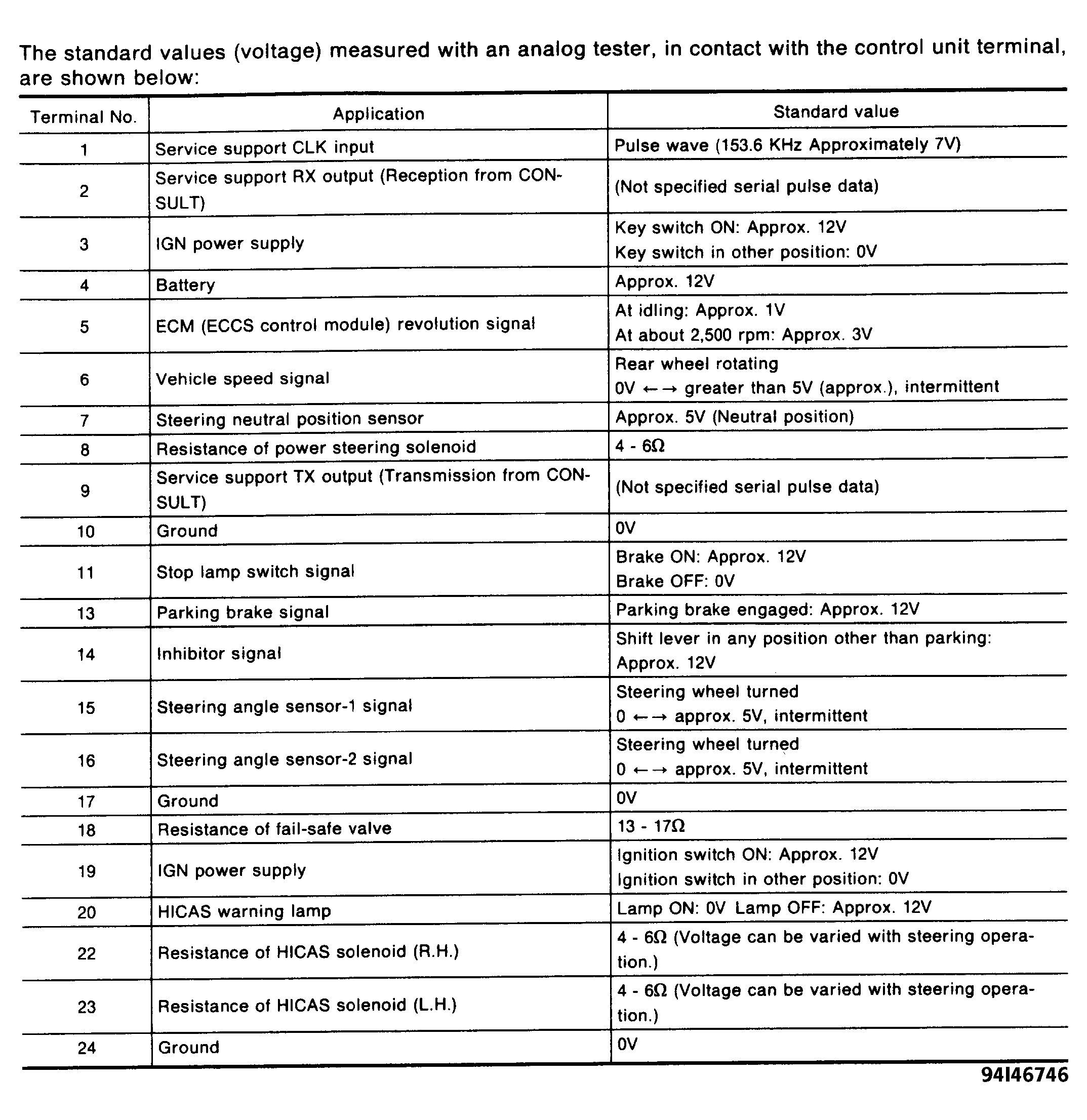

Fig 1: HICAS Control Unit Inspection Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying HICAS Control Unit Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
