5) Check Component

Inspect power transistor unit. See SYSTEM & COMPONENT TESTING article. Replace power transistor unit if necessary and perform FINAL CHECK.

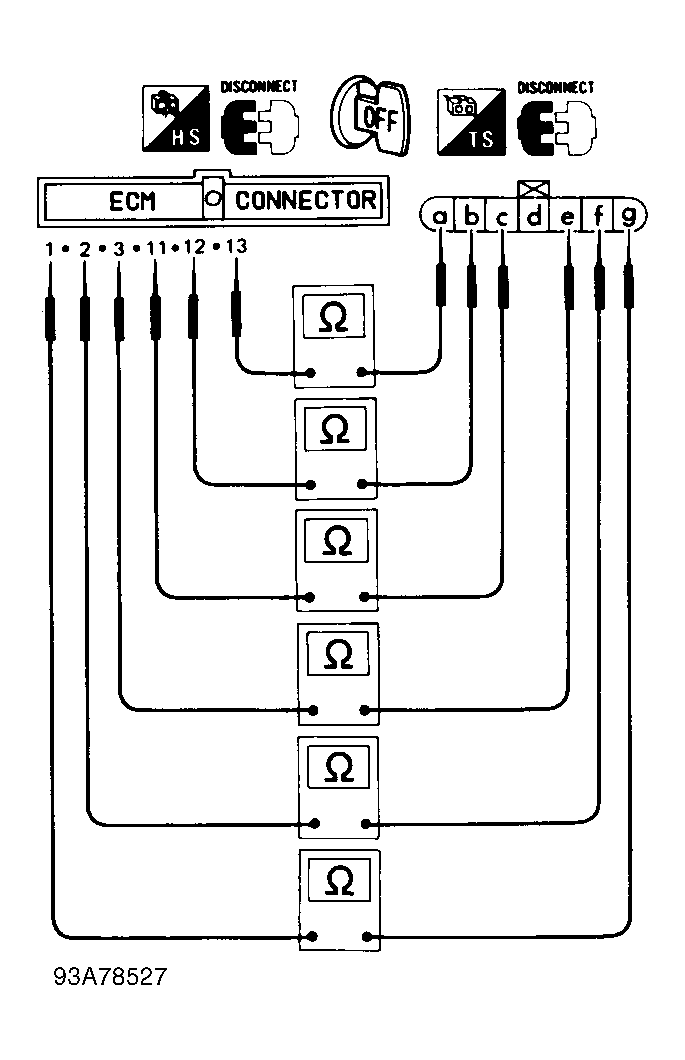

Fig 1: DTC 21, Checking Output Signal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
