Component Testing

For electrical component inspection of wheel sensors, actuator motor relay and solenoid valve relay, see Fig 1 .

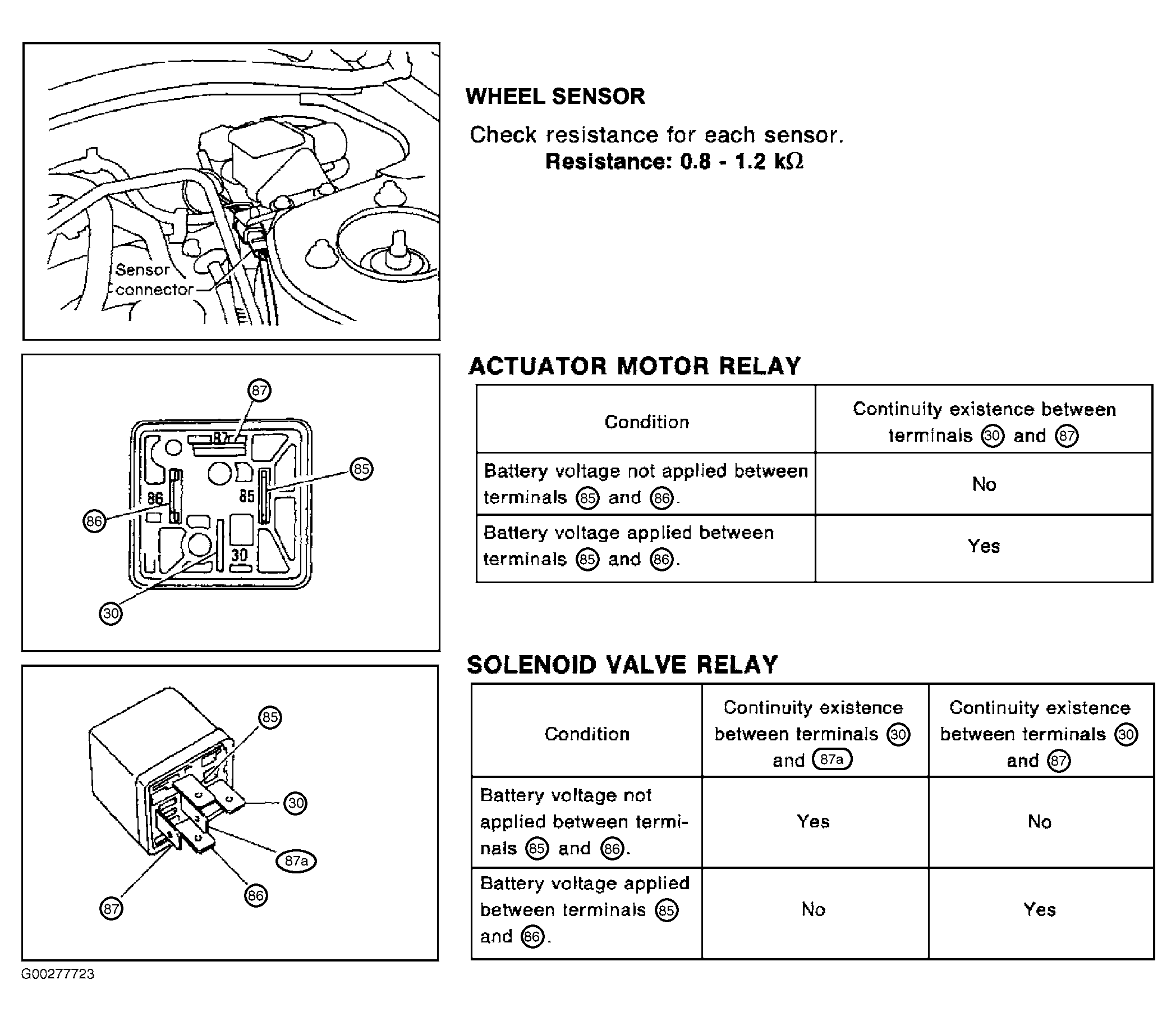

Fig 1: ABS Electrical Components Inspection For Wheel Sensors, Actuator Motor Relay & Solenoid Valve Relay

Courtesy of NISSAN MOTOR CO., U.S.A.
