Symptom Chart
Symptom Chart

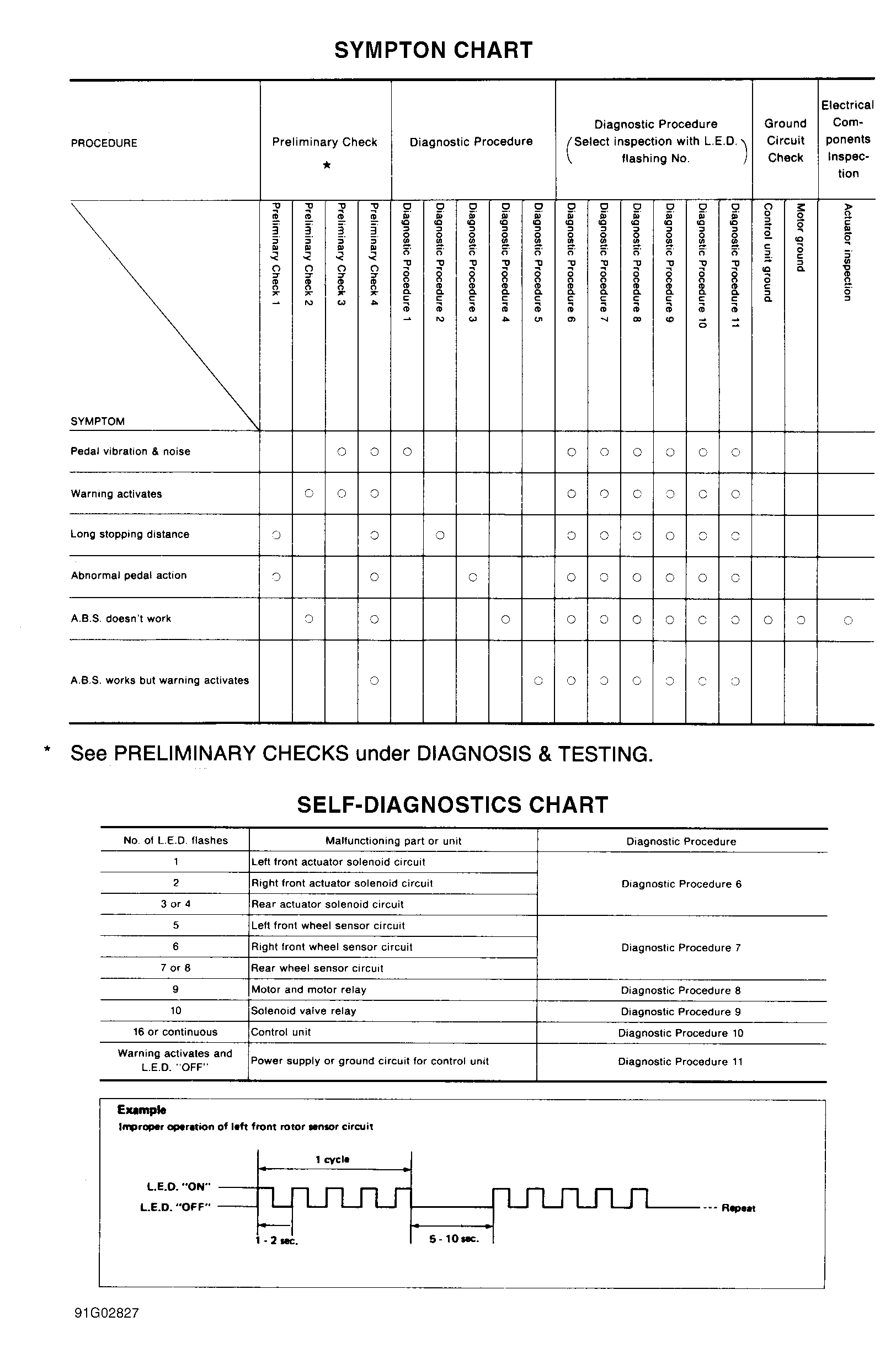

Fig 1: ABS Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
