Description & Operation

The Anti-Lock Brake System (ABS) prevents wheel lock-up during abrupt braking. The system detects wheel rotation rate and electronically controls fluid pressure applied to the brakes.

A slight vibration and noise may be noticed during hard braking. These conditions are normal and indicate the anti-lock brake system is functioning properly. If a malfunction occurs in the system, anti-lock feature will not function but conventional brakes will continue to operate normally. See Fig 1 through Fig 3 .

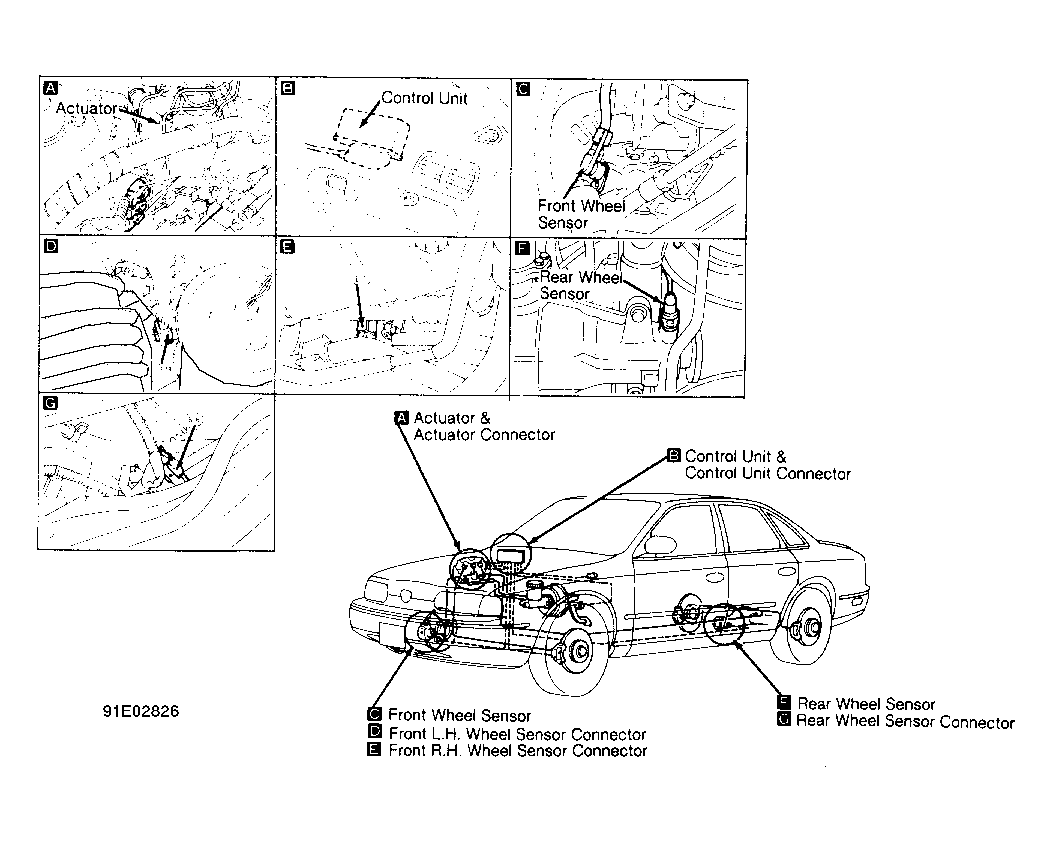

Fig 1: Anti-Lock Brake System Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Anti-Lock Brake System Wiring Schematic

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Anti-Lock Brake System Control Unit Connector Identification

Courtesy of NISSAN MOTOR CO., U.S.A.
