LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
1993
>>
G20 Standard, RS5F32A
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Diagnosis & Testing
>>
Symptom Chart
Symptom Chart

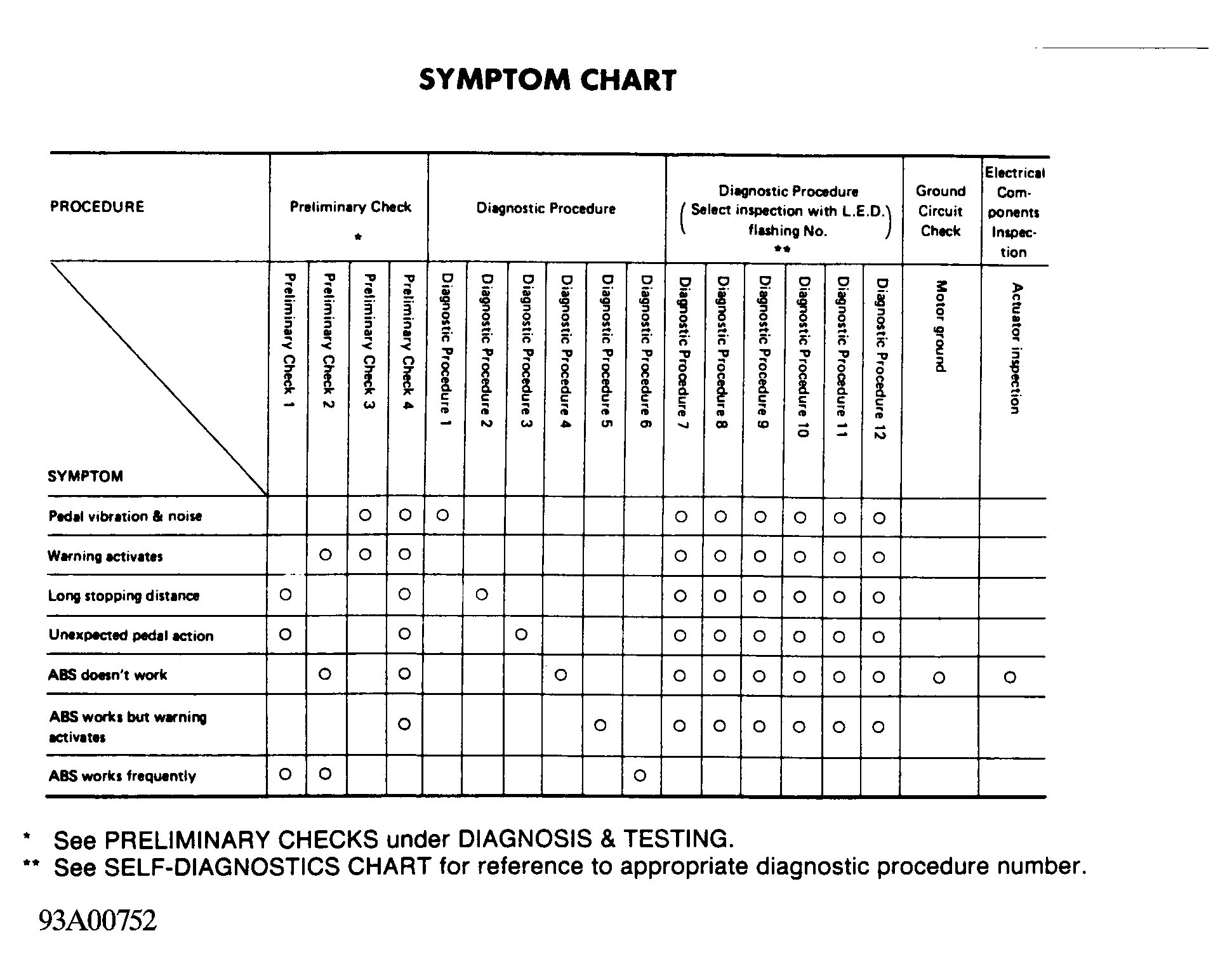

Fig 1: ABS Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
