Wiring Diagrams

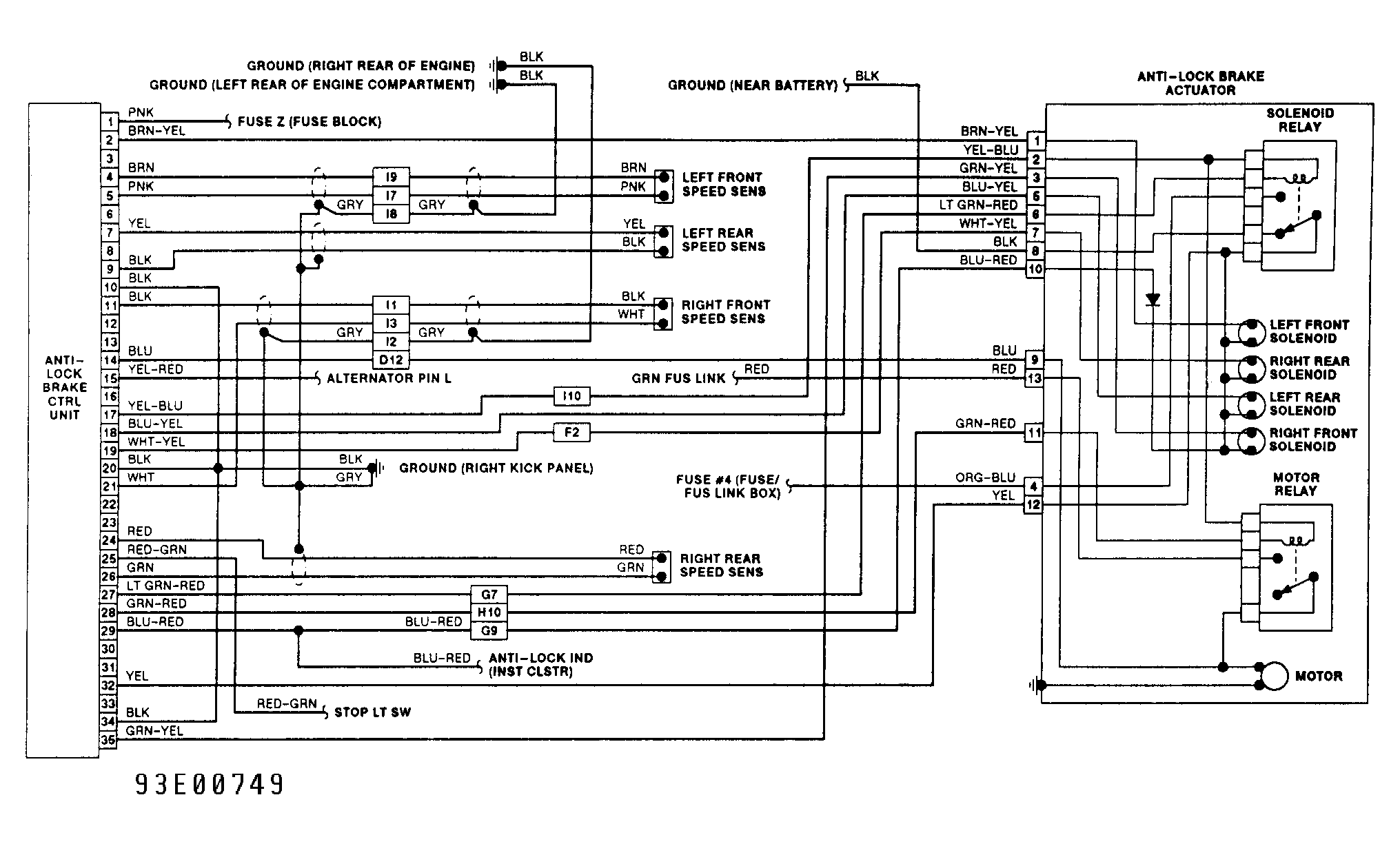

Fig 1: ABS Wiring Diagram (G20)

G93E00749

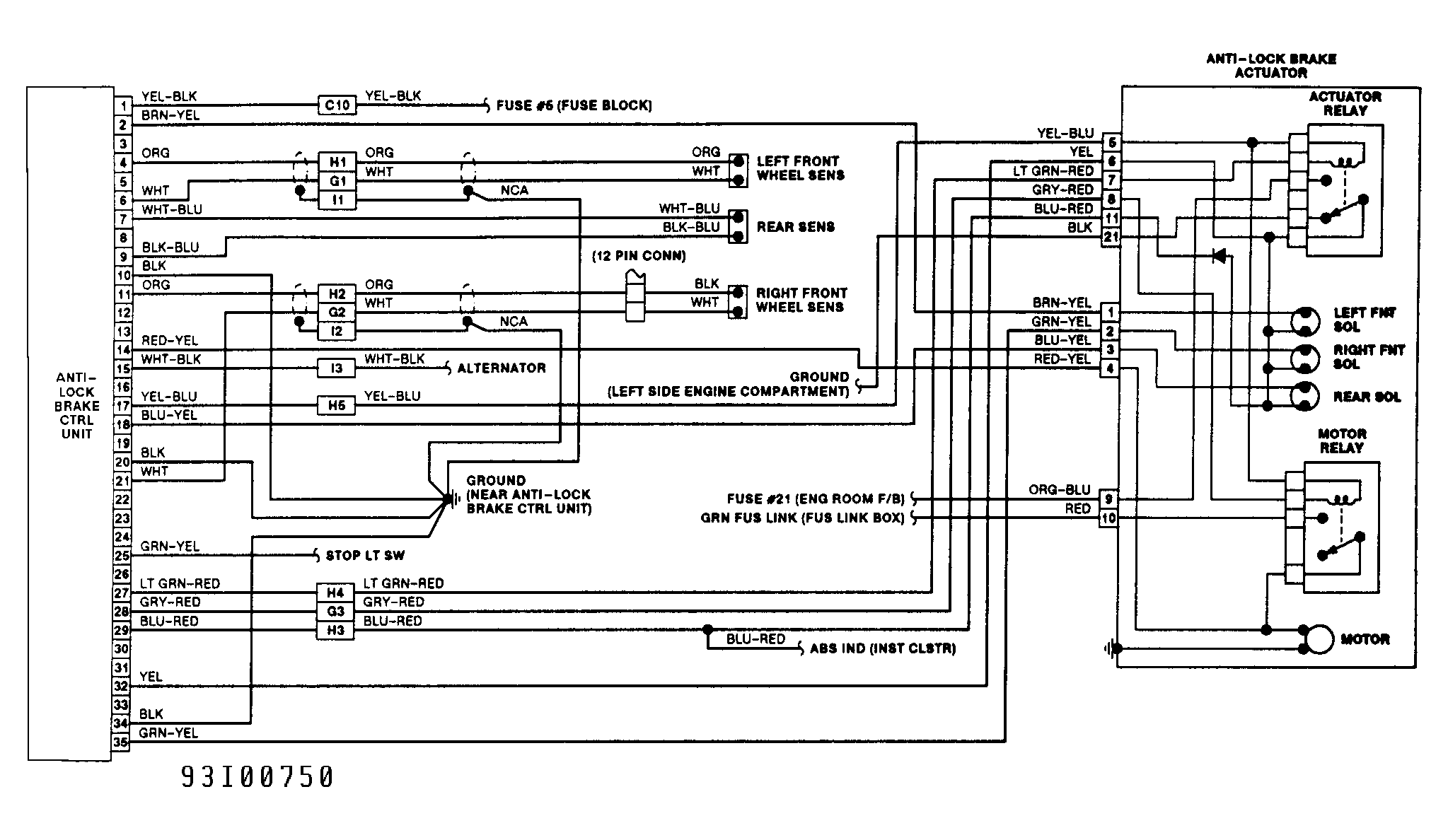

Fig 2: ABS Wiring Diagram (M30)

G93I00750

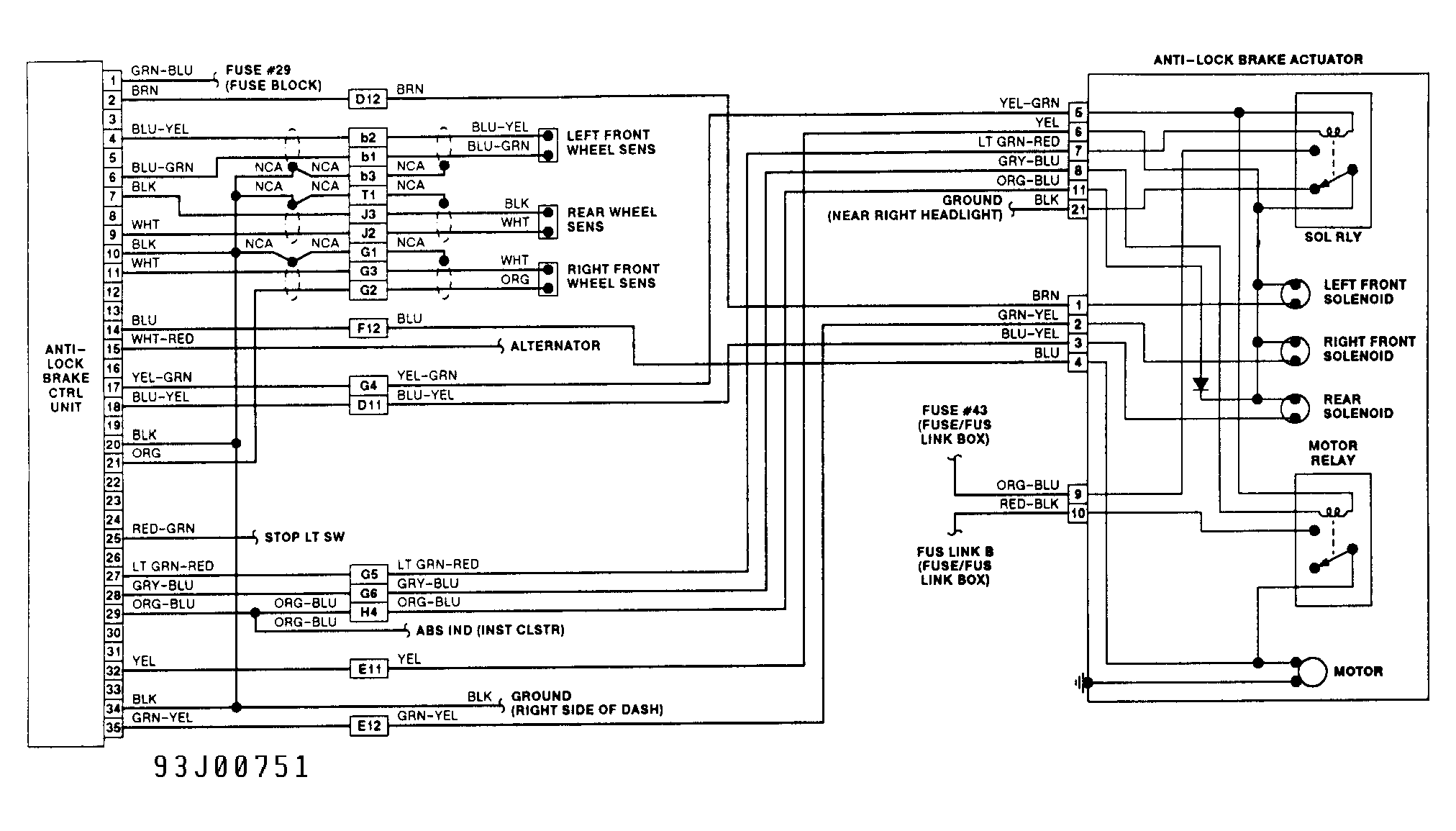

Fig 3: ABS Wiring Diagram (Q45)

G93J00751

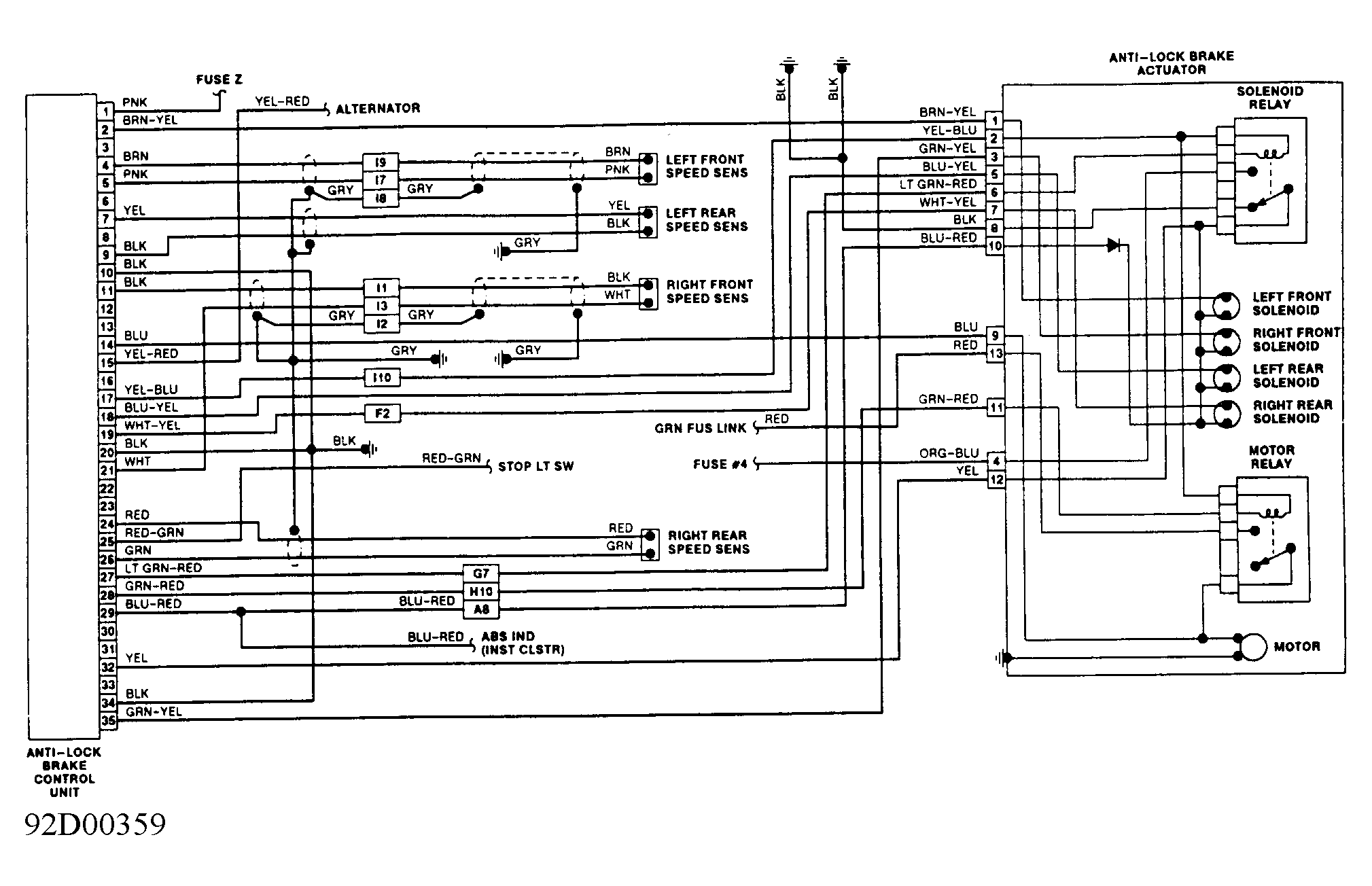

Fig 4: ABS Wiring Diagram (G20)

G92D00359

Fig 5: ABS Wiring Diagram (M30)

G92I01782

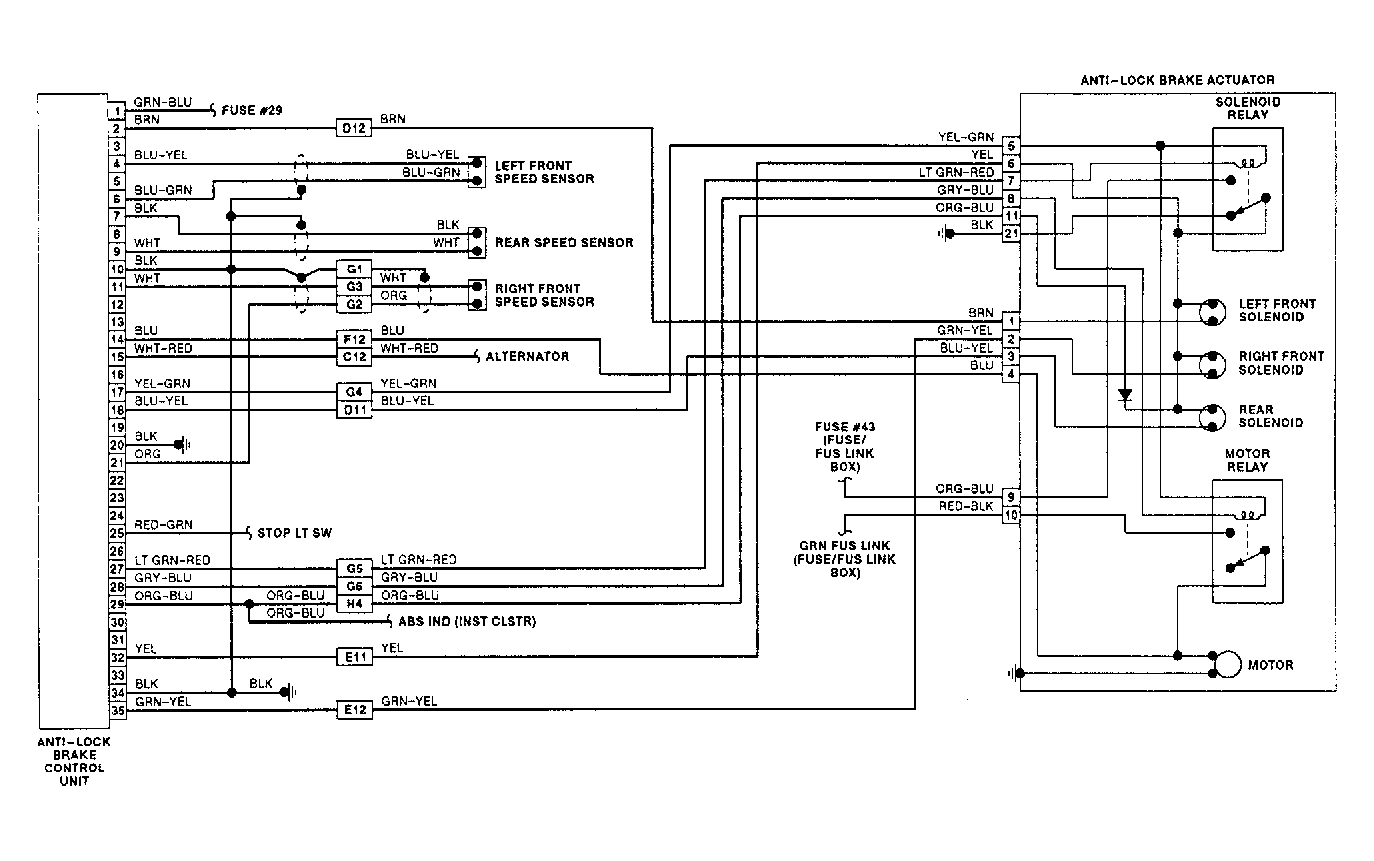

Fig 6: ABS Wiring Diagram (Q45)

G92A01783
