Description & Operation

The Anti-Lock Brake System (ABS) prevents wheel lock-up during abrupt braking. The system detects wheel rotation rate and electronically controls fluid pressure applied to the brakes.

A slight vibration and noise may be noticed during hard braking. These conditions are normal and indicate the anti-lock brake system is functioning properly. If a malfunction occurs in the system, anti-lock feature will not function but conventional brakes will continue to operate normally. See Fig 1 through Fig 9 .

NOTE: For more information on brake system, see BRAKE SYSTEM article.

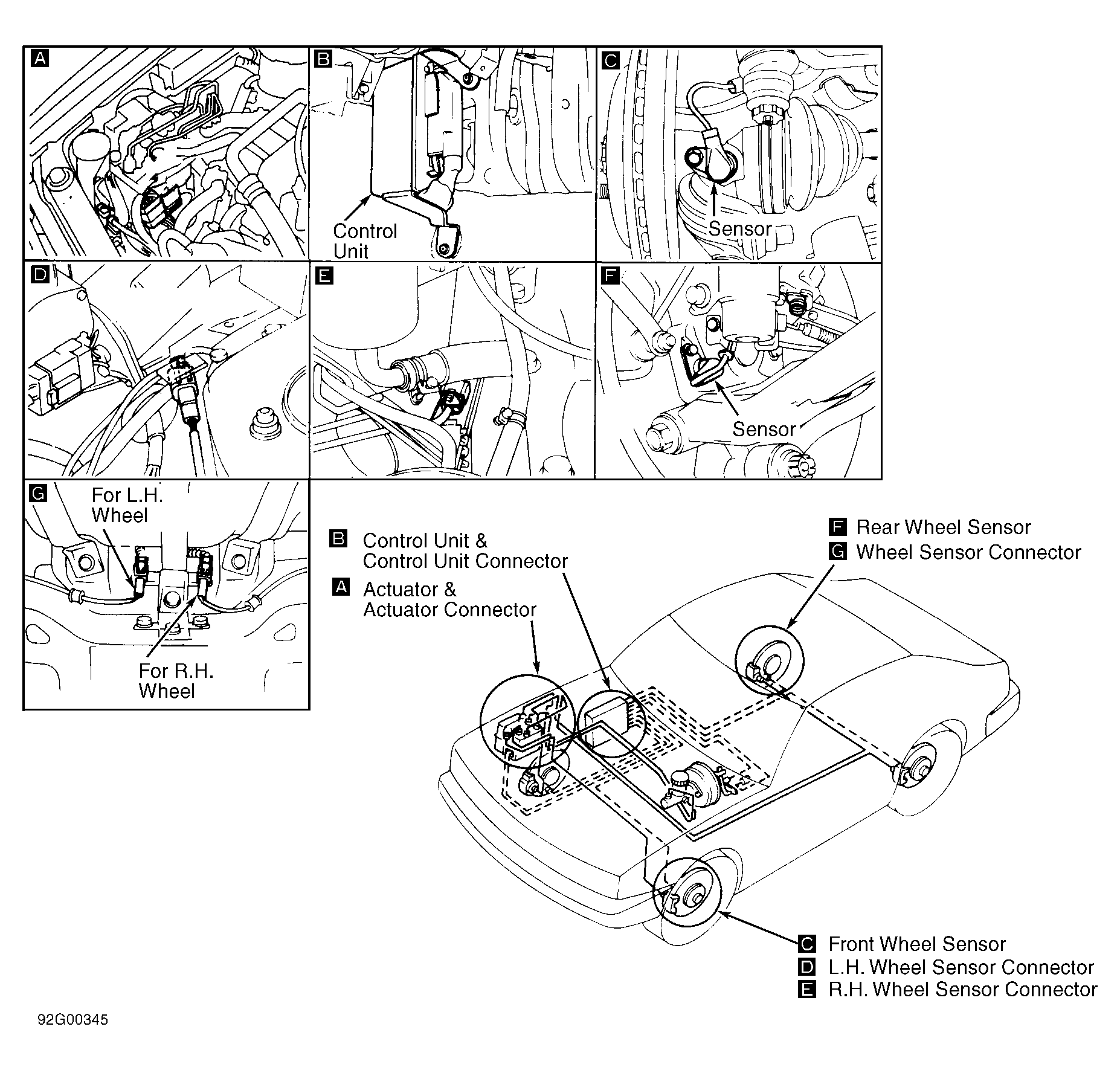

Fig 1: ABS Component Locations (G20)
G92G00345Courtesy of NISSAN MOTOR CO., U.S.A.

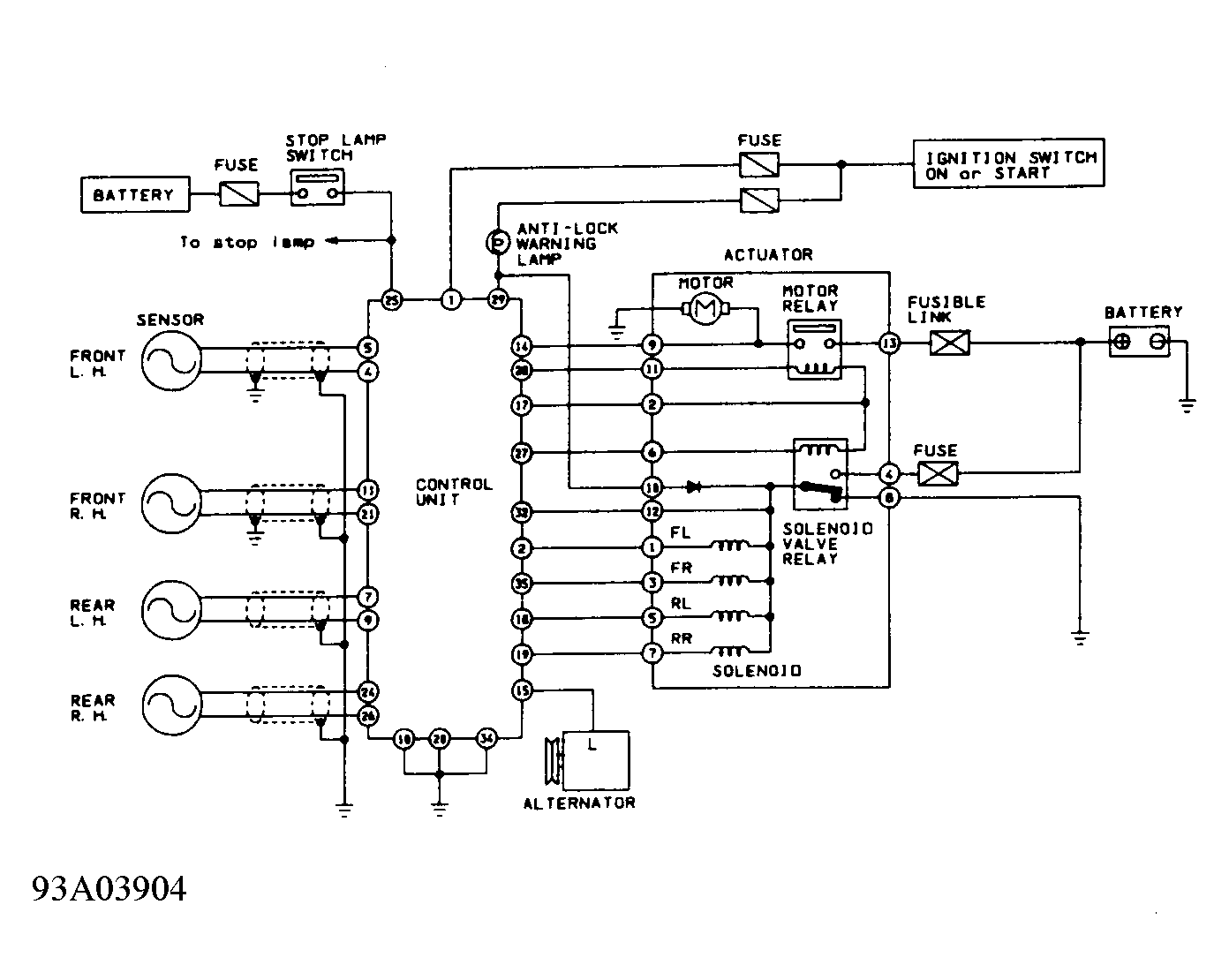

Fig 2: ABS Wiring Schematic (G20)
G93A03904Courtesy of NISSAN MOTOR CO., U.S.A.

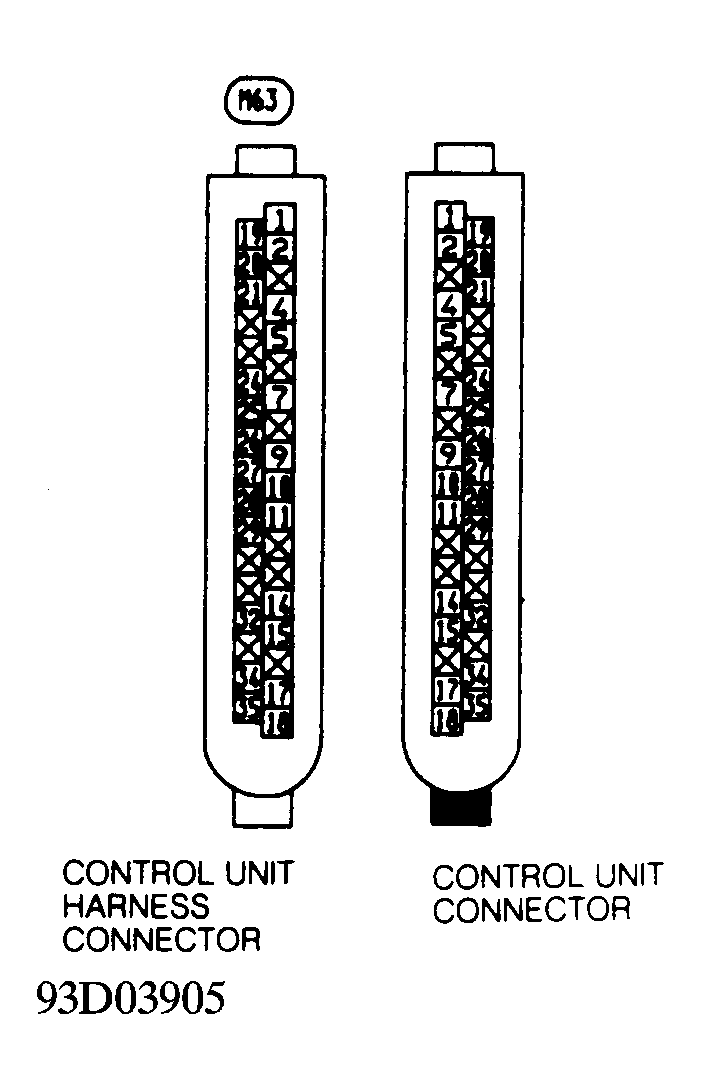

Fig 3: ABS Control Unit Connectors(G20)
G93D03905Courtesy of NISSAN MOTOR CO., U.S.A.

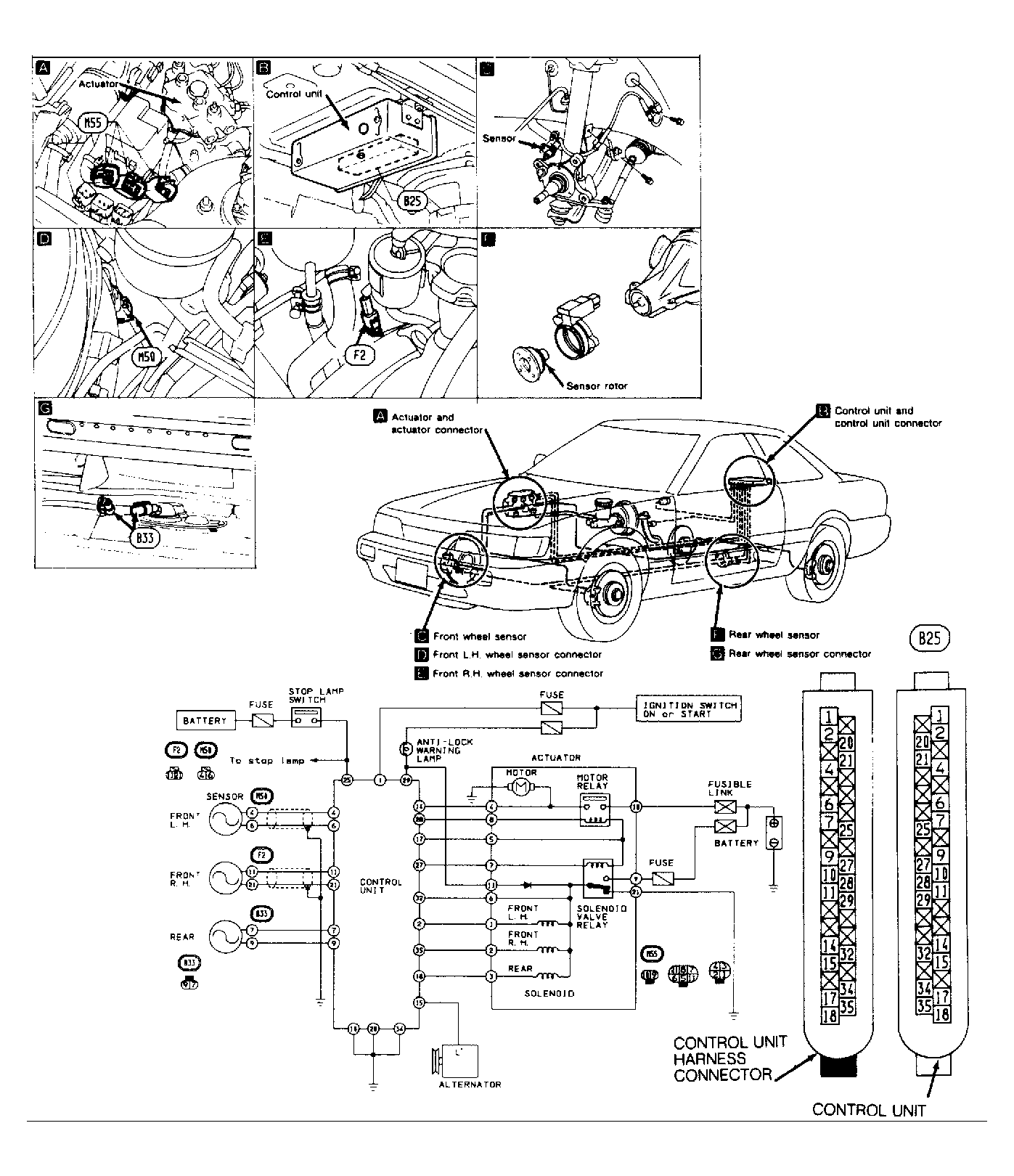

Fig 4: ABS Component Locations (M30)
G91C02825Courtesy of NISSAN MOTOR CO., U.S.A.

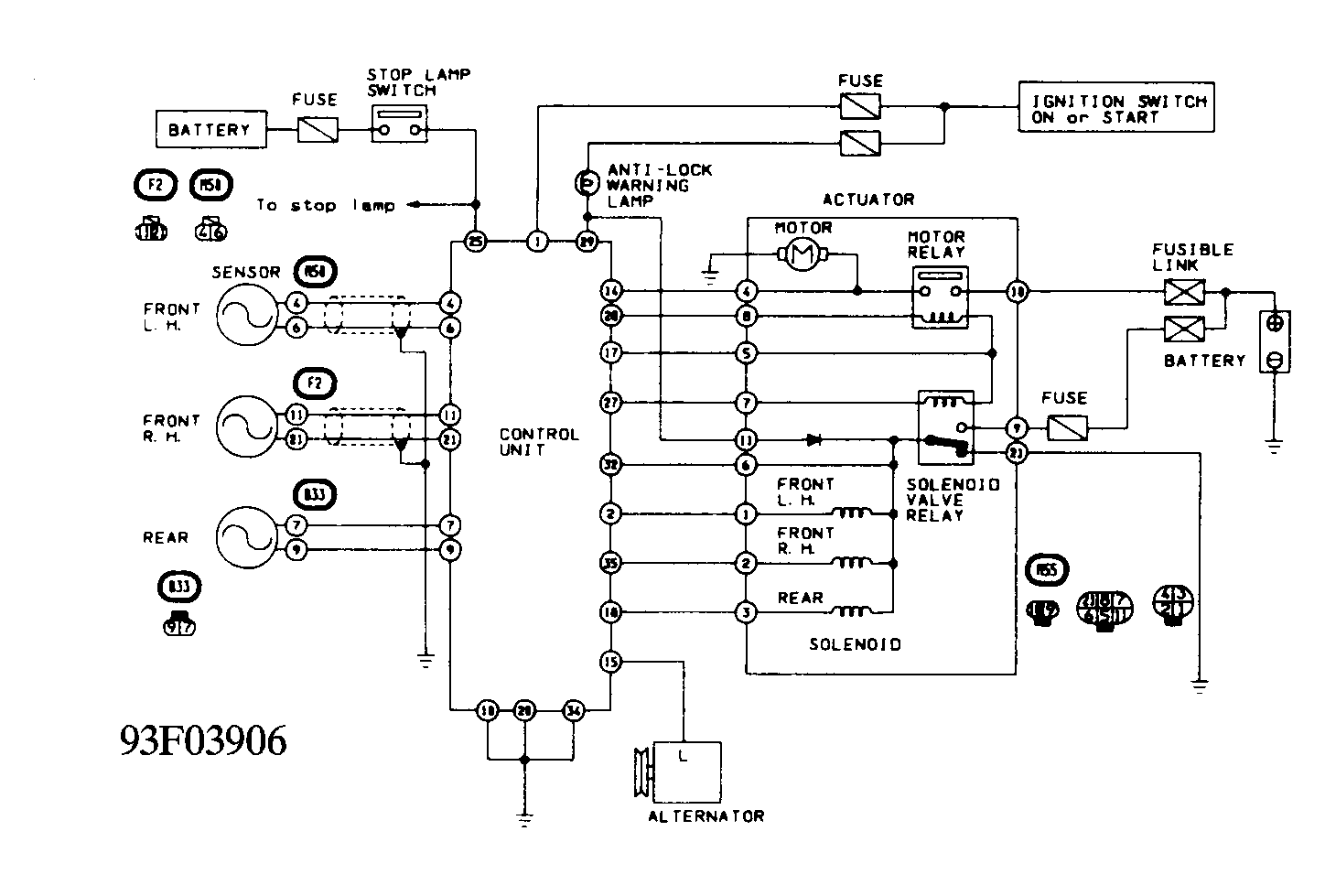

Fig 5: ABS Wiring Schematic (M30)
G93F03906Courtesy of NISSAN MOTOR CO., U.S.A.

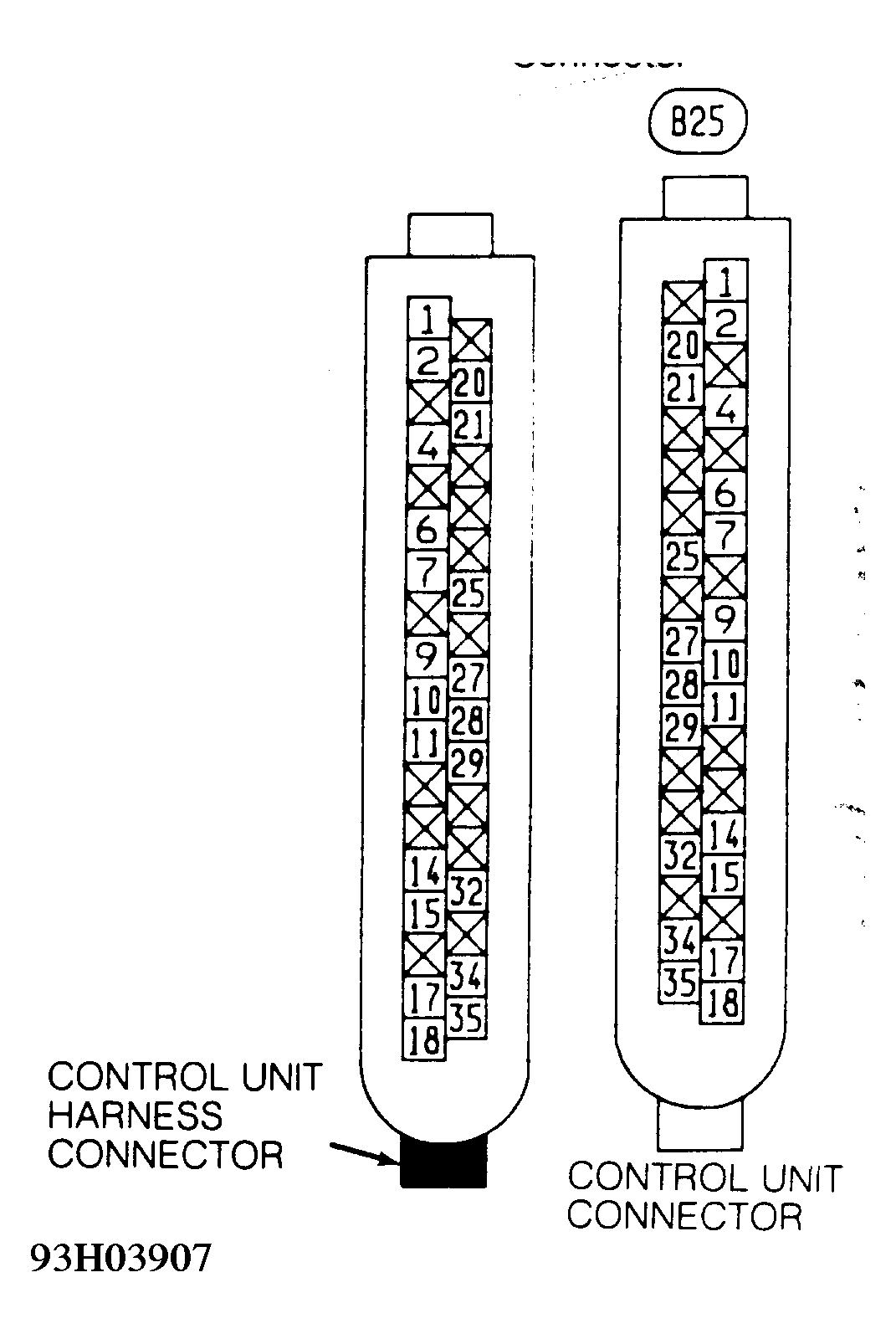

Fig 6: ABS Control Unit Connectors(M30)
G93H03907Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: ABS Component Locations & Wiring Schematic (Q45)
G91E02826Courtesy of NISSAN MOTOR CO., U.S.A.

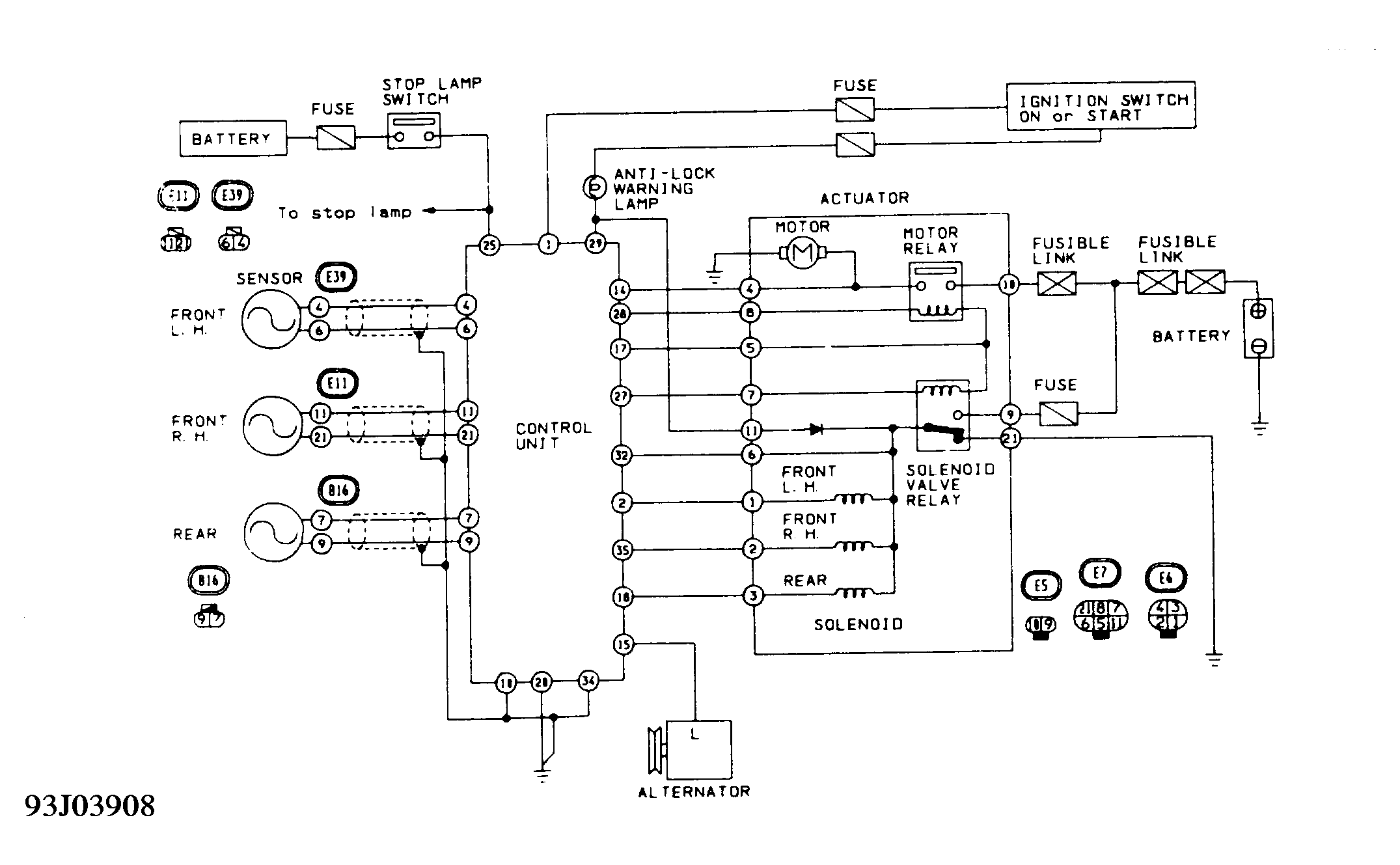

Fig 8: ABS Wiring Schematic (Q45)
G93J03908Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: ABS Control Unit Connectors(Q45)
G93B03909Courtesy of NISSAN MOTOR CO., U.S.A.
