DTC 12 - Airflow Meter

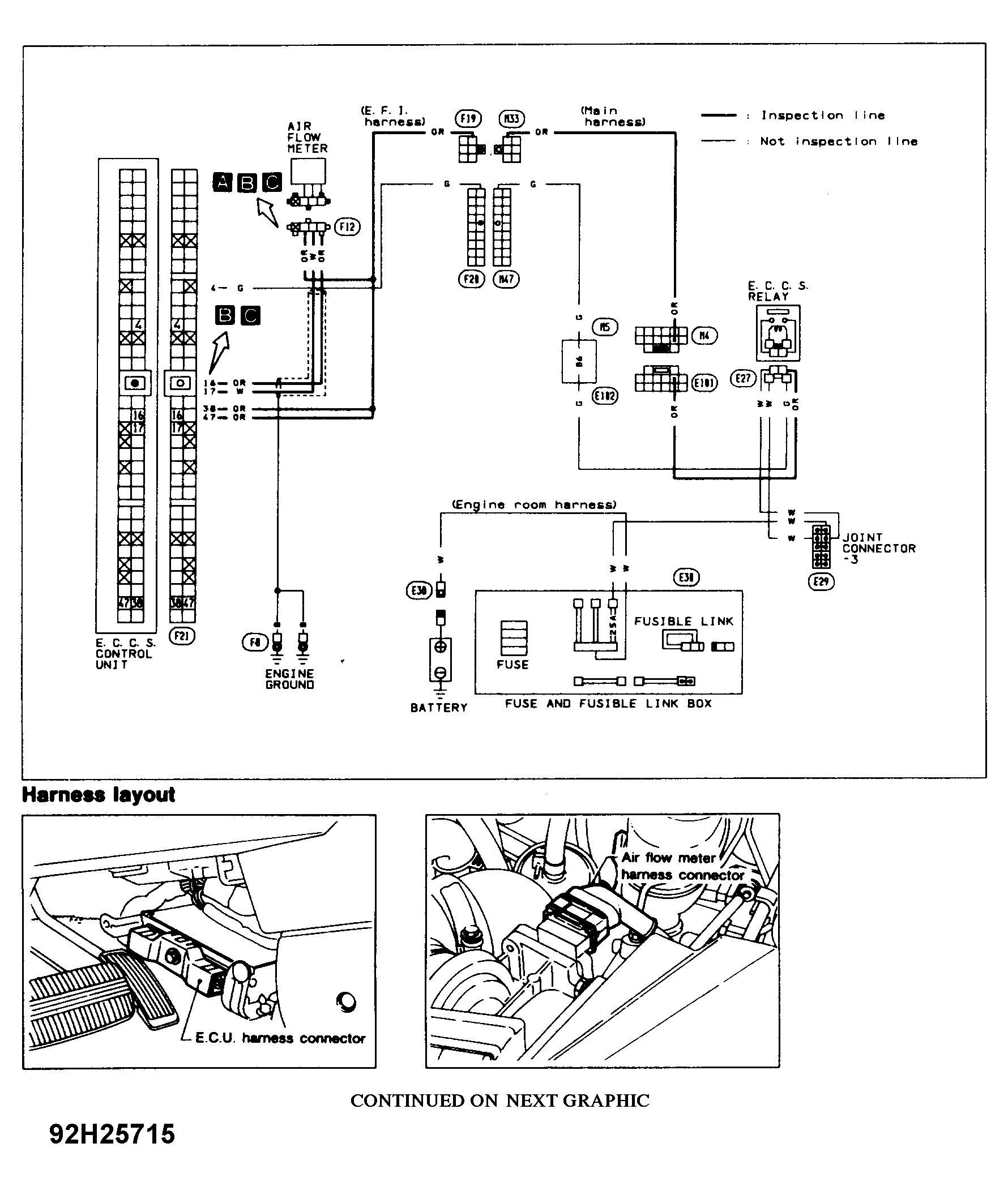

Fig 1: Code 12 Schematic - Airflow Meter
Courtesy of NISSAN MOTOR CO., U.S.A.

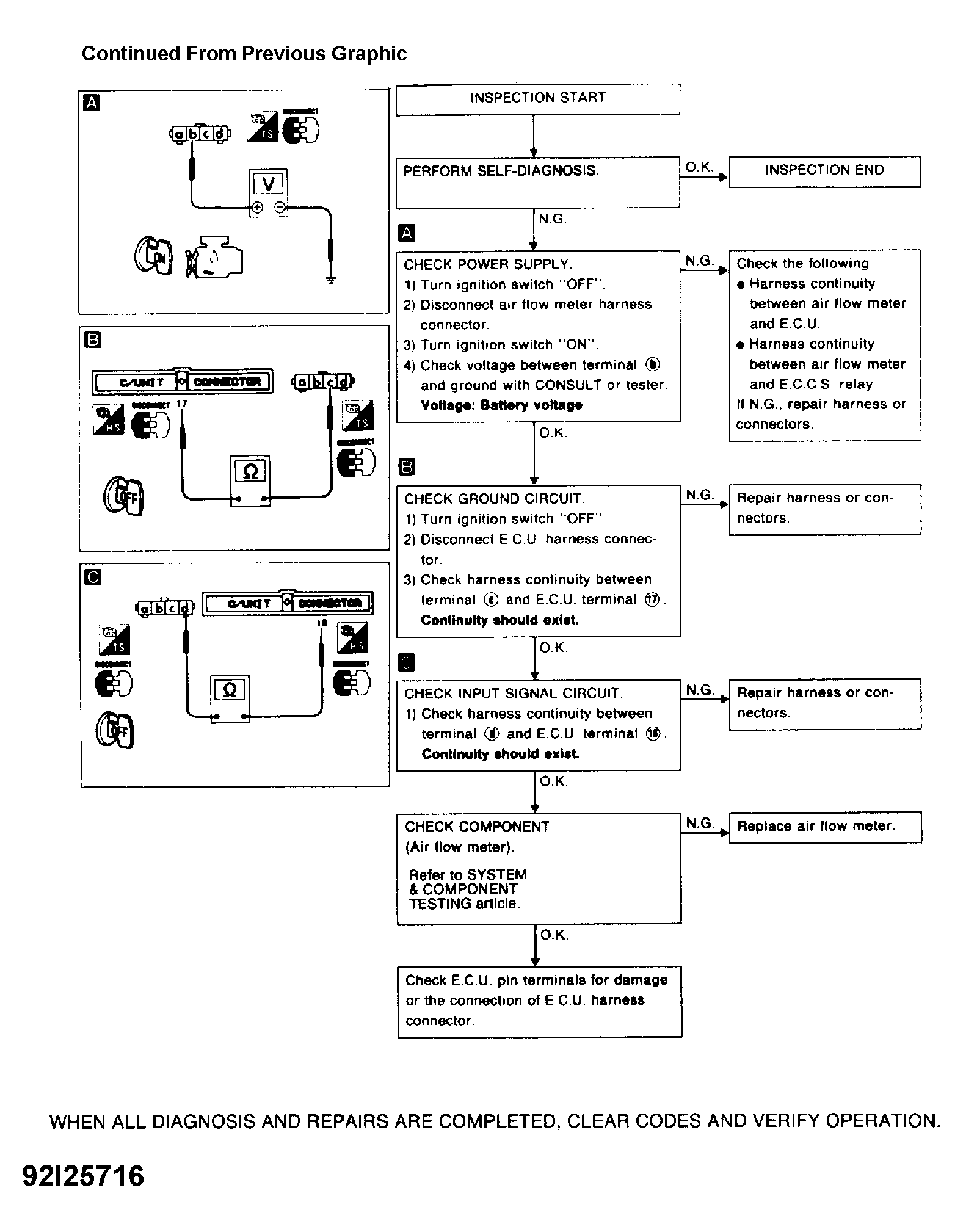

Fig 2: Code 12 Chart - Airflow Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
