Toe-In Adjust (Rear Suspension)

Ensure camber is correctly set. Bounce both ends of vehicle several times to settle suspension. Measure toe-in. Adjust toe-in by turning adjustment pin. See Fig 1 . Toe changes about 0.06" (1.5 mm), per side, with each graduation of adjusting pin.

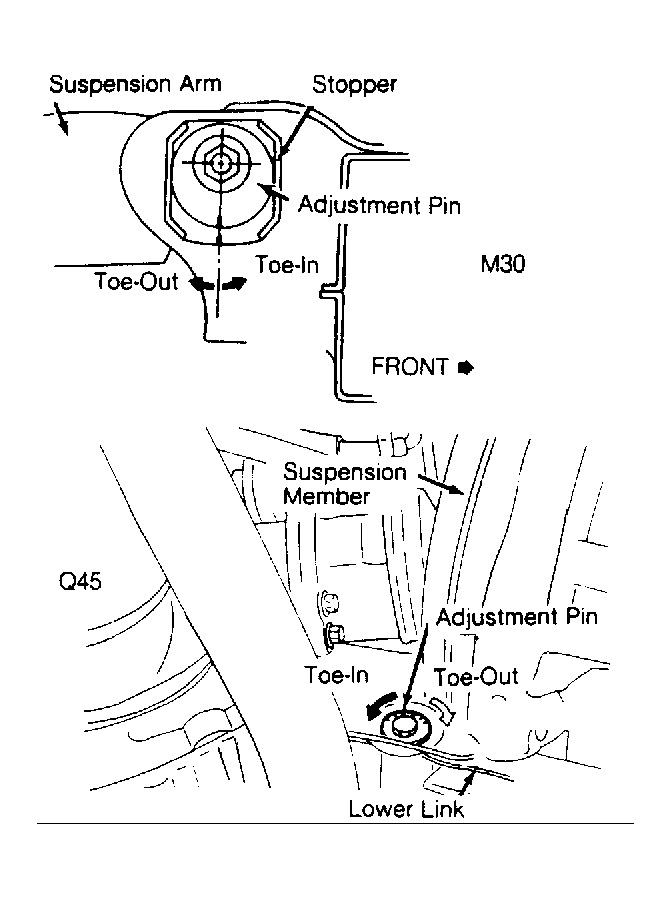

Fig 1: Locating Rear Toe-In Adjustment Pin

Courtesy of NISSAN MOTOR CO., U.S.A.
