Longitudinal G Sensor Calibration

  1. When replacing the SRS control module (SRSCM), perform 'Longitudinal G Sensor Calibration' using a diagnostic tools.
    1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.
    2. Select the 'Car model' and "Brake".

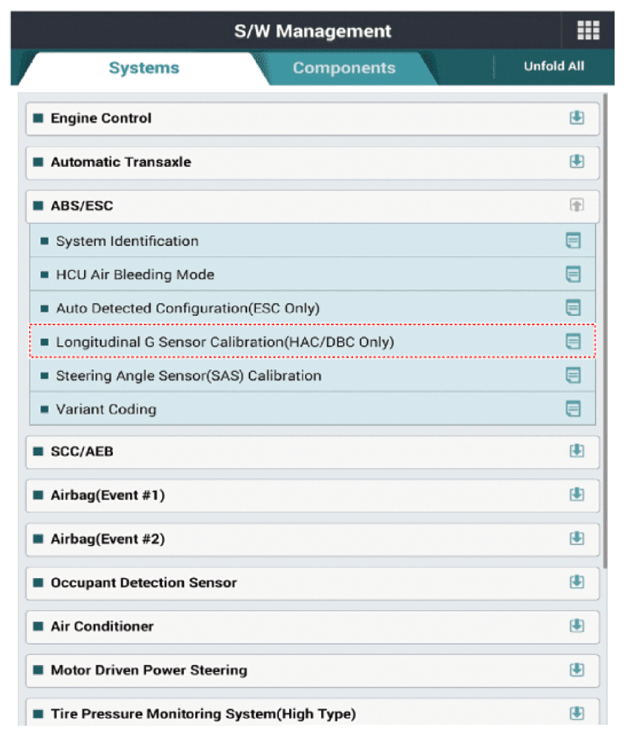

    3. Select the 'Longitudinal G Sensor Calibration (HAC/DBC Only)' and follow the instructions on the screen.
G16984639Courtesy of HYUNDAI MOTOR AMERICA
