ACU Variant Coding

  1. When replacing the SRS control module (SRSCM), perform 'variant coding' using a diagnostic tools.
    1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.
    2. Select the 'Car model' and "Airbag".

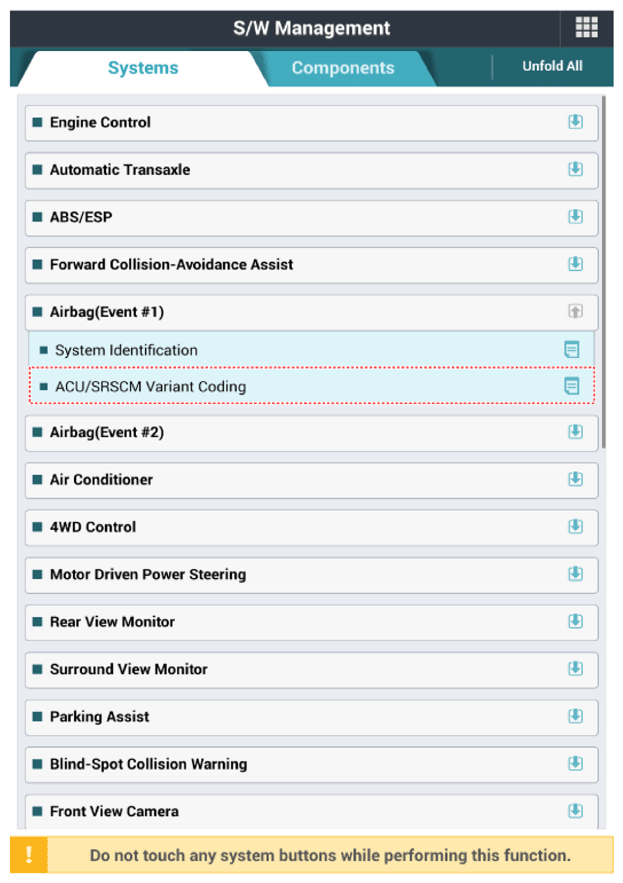

    3. Select the 'ACU Variant Coding' and follow the instructions on the screen.
G16984638Courtesy of HYUNDAI MOTOR AMERICA
