SRS Control Module (SRSCM): Removal
WARNING:
- You must remove or install the SRSCM or other SRS components with the ignition switch OFF to avoid accidental airbag deployment.
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the battery (-) terminal.WARNING:
- After disconnect the battery (-) terminal, wait at least 3 minutes.
- Remove the floor console assembly.
(Refer to Body (Interior/Exterior/Electrical) - "FLOOR CONSOLE ASSEMBLY ")

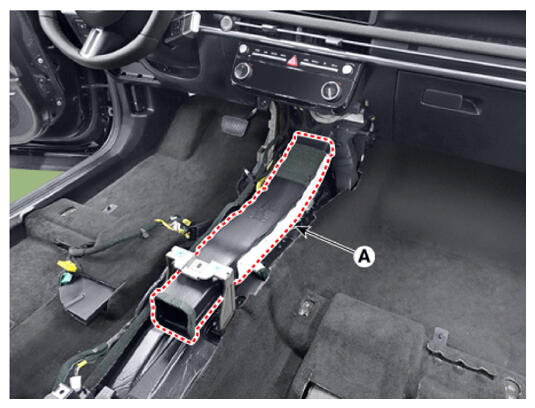

- Remove the air duct (A).

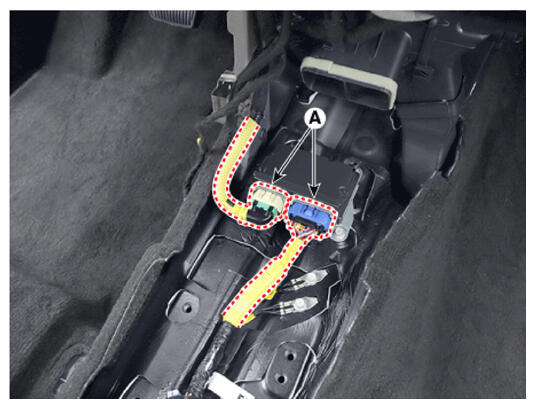

- Disconnect the SRSCM connectors (A).NOTE:
- Be careful not to damage the SRSCM connector.

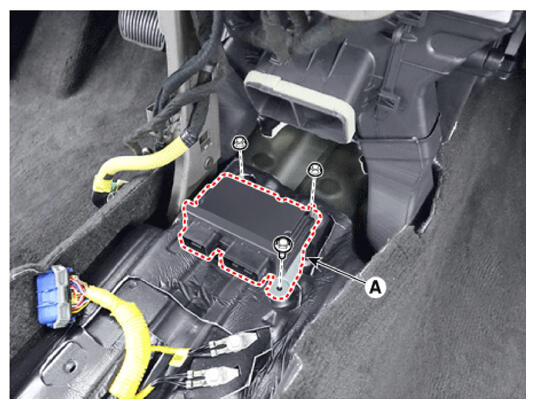

- Remove the SRSCM (A), after removing the bolts.
Tightening torque:
Nut: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
Bolt: 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)
