Front Impact Sensor (FIS): Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the battery (-) terminal.WARNING:
- After disconnect the battery (-) terminal, wait at least 3 minutes.

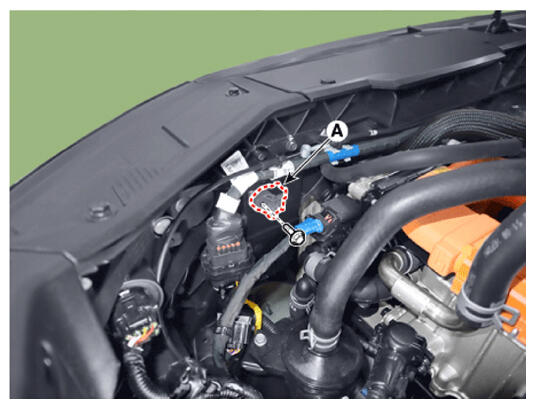

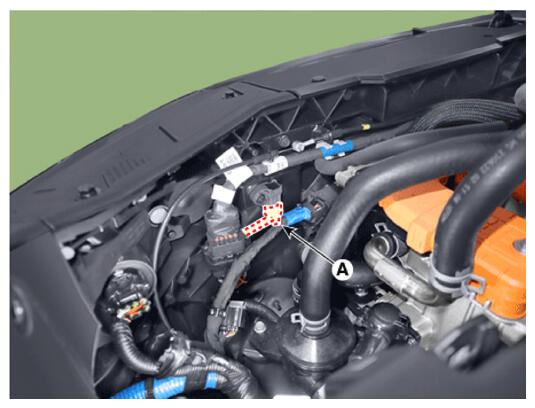

- Disconnect the front impact sensor connector (A).
[LH]
[RH]

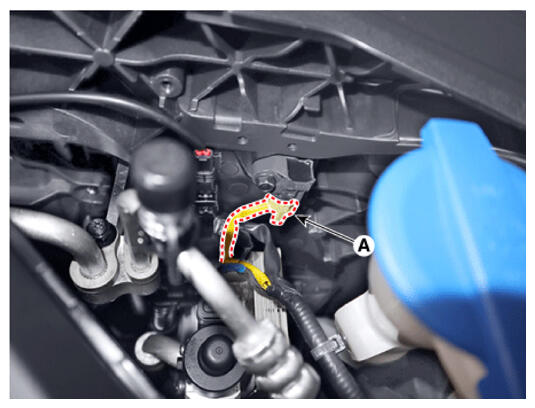

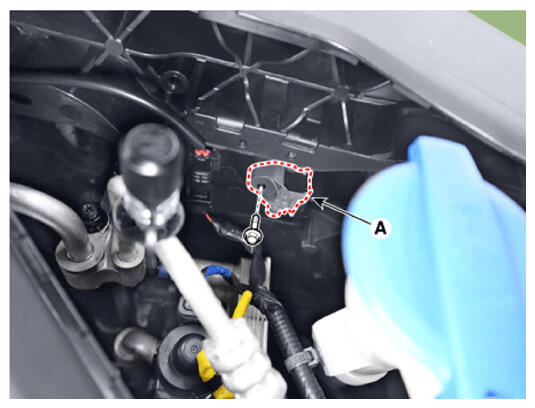

- Remove the front impact sensor (A), after removing the bolt.
Tightening torque:
10.8 - 12.7 N.m (1.1 - 1.3 kgf.m, 8.0 - 9.4 lb-ft)
[LH]
[RH]
