Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Apply the sealant to the sensor.

      Specification:  TB2403

      Tickness:  0.2 - 0.4 mm (0.0079 - 0.0157 in.)

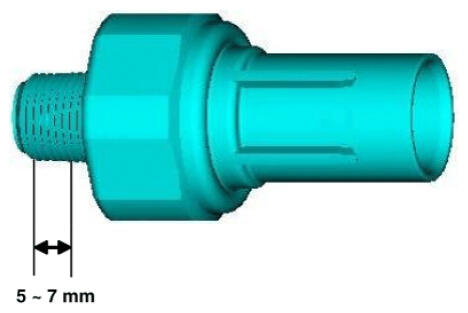

G16982194Courtesy of HYUNDAI MOTOR AMERICA
