Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

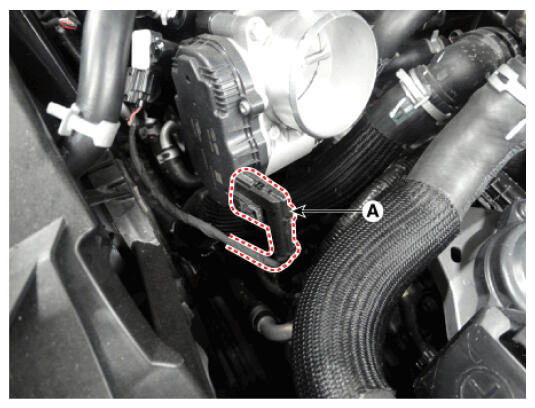

  3. Disconnect the ETC module connector (A).
    G16982014Courtesy of HYUNDAI MOTOR AMERICA

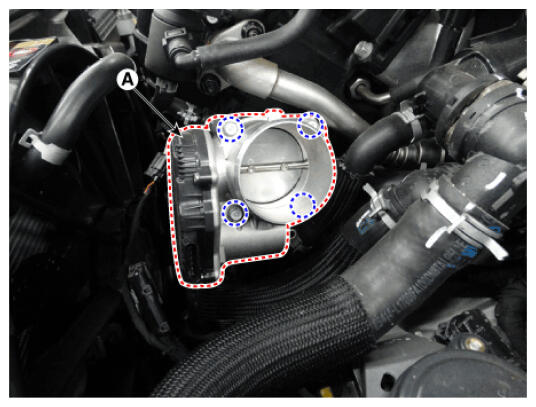

  4. Remove the ETC Module (A) after loosening the mounting bolt.

    Electronic throttle body Installation bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

G16982015Courtesy of HYUNDAI MOTOR AMERICA
