ESCL Status Information

WARNING: This page is about a different variant/trim than selected.
  1. Connect the diagnostic device to the data link connector, turn on the ignition (IGN ON), and then activate the diagnostic tool.
  2. Select the 'Car model' and "BDC-SMK".

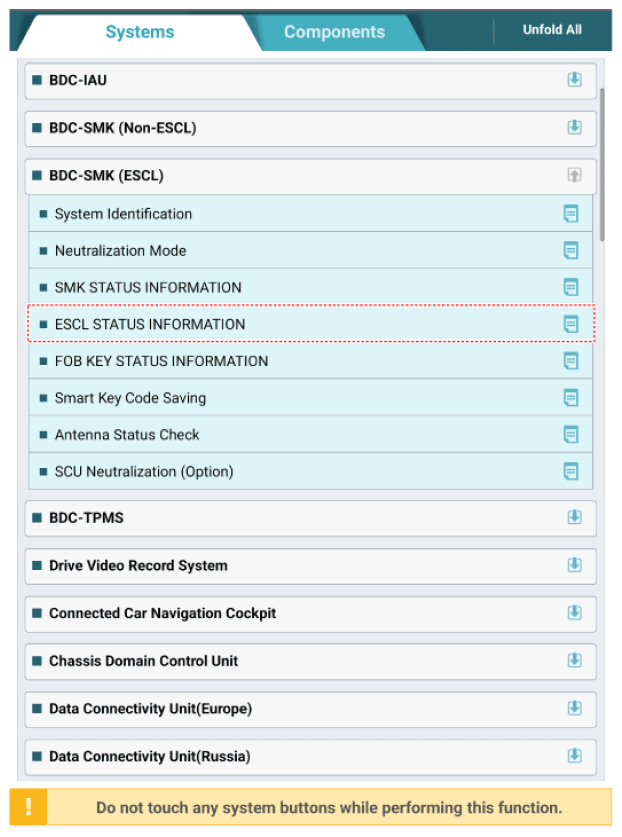

  3. Select the 'ESCL STATUS INFORMATION' and follow the instructions on the screen.
    G16984182Courtesy of HYUNDAI MOTOR AMERICA
