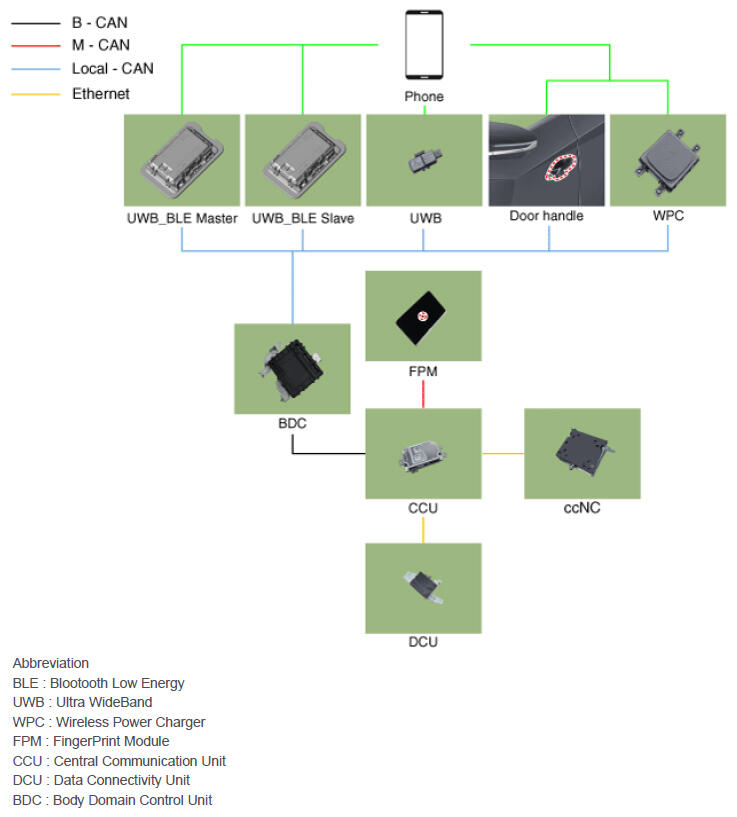

System Flow Chart

WARNING: This page is about a different variant/trim than selected.

G16984233

Courtesy of HYUNDAI MOTOR AMERICA
