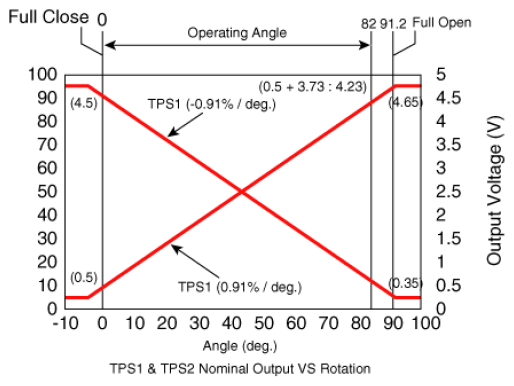

Throttle Position Sensor (TPS): Notes
WARNING: This page is about a different variant/trim than selected.
- Type: Absolute Rotary Sensor IC
- Specification
| Throttle angle (°) |
Output Voltage (V) [Vref=5V] |
| TPS1 |
TPS2 |
| 0 |
0.5 |
4.5 |
| 10 |
0.96 |
4.05 |
| 20 |
1.41 |
3.59 |
| 30 |
1.87 |
3.14 |
| 40 |
2.32 |
2.68 |
| 50 |
2.78 |
2.23 |
| 60 |
3.23 |
1.77 |
| 70 |
3.69 |
1.32 |
| 80 |
4.14 |
0.86 |
| 90 |
4.6 |
0.41 |
| 91.2 |
4.65 |
0.35 |
| C.T (0°) |
0.5 |
4.5 |
| W.O.T (82°) |
4.23 |
0.77 |
