Components Location

WARNING: This page is about a different variant/trim than selected.

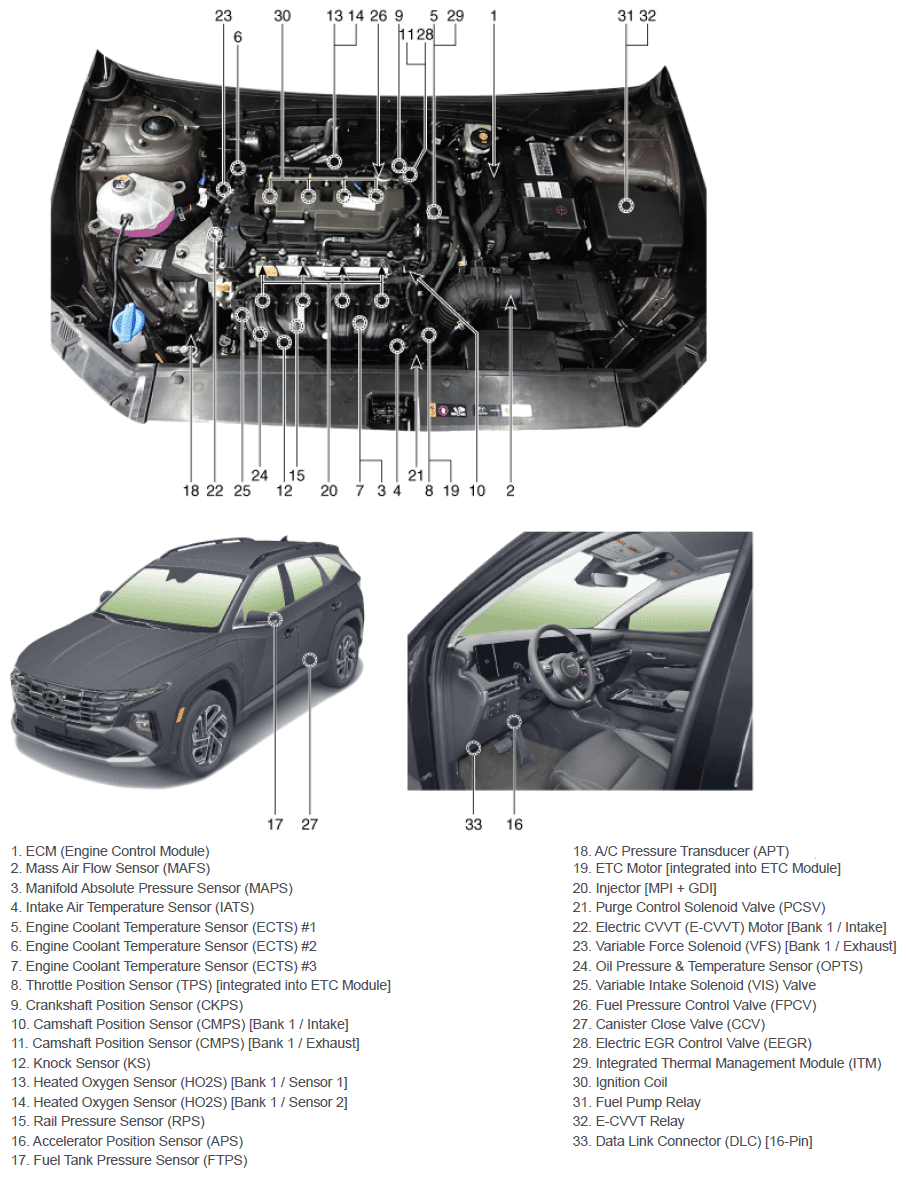

G16981991Courtesy of HYUNDAI MOTOR AMERICA

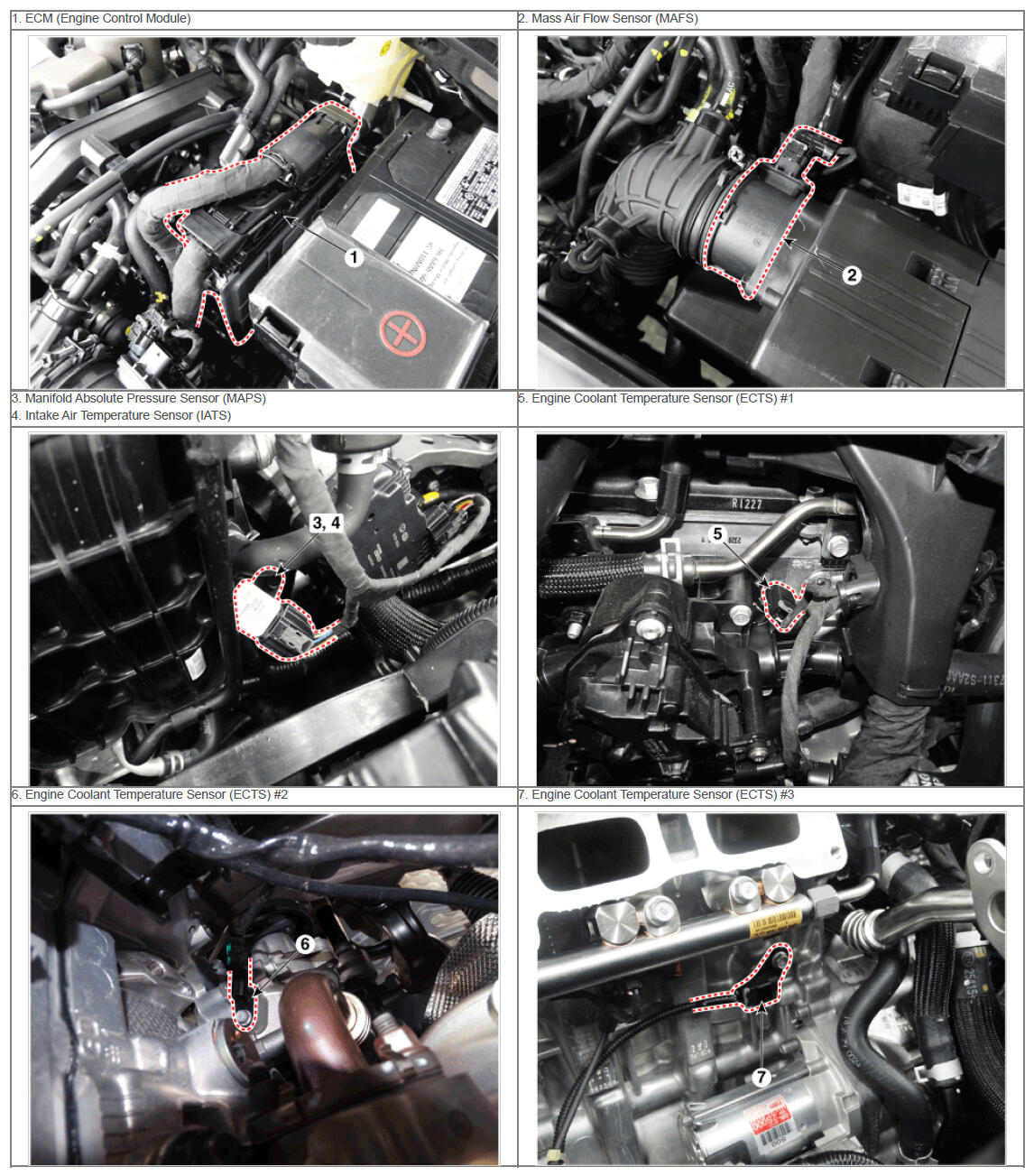

G16981992Courtesy of HYUNDAI MOTOR AMERICA

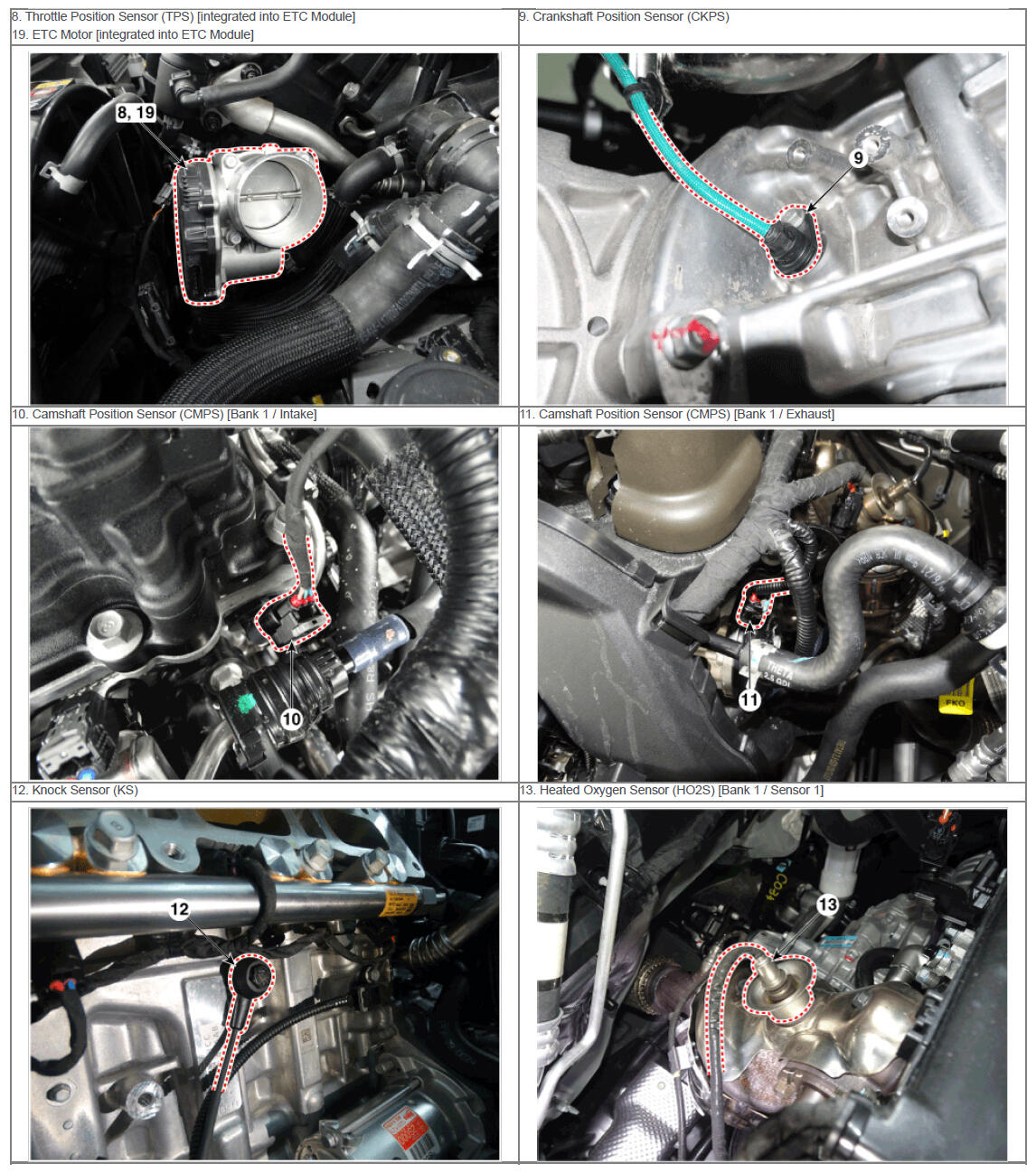

G16109067Courtesy of HYUNDAI MOTOR AMERICA

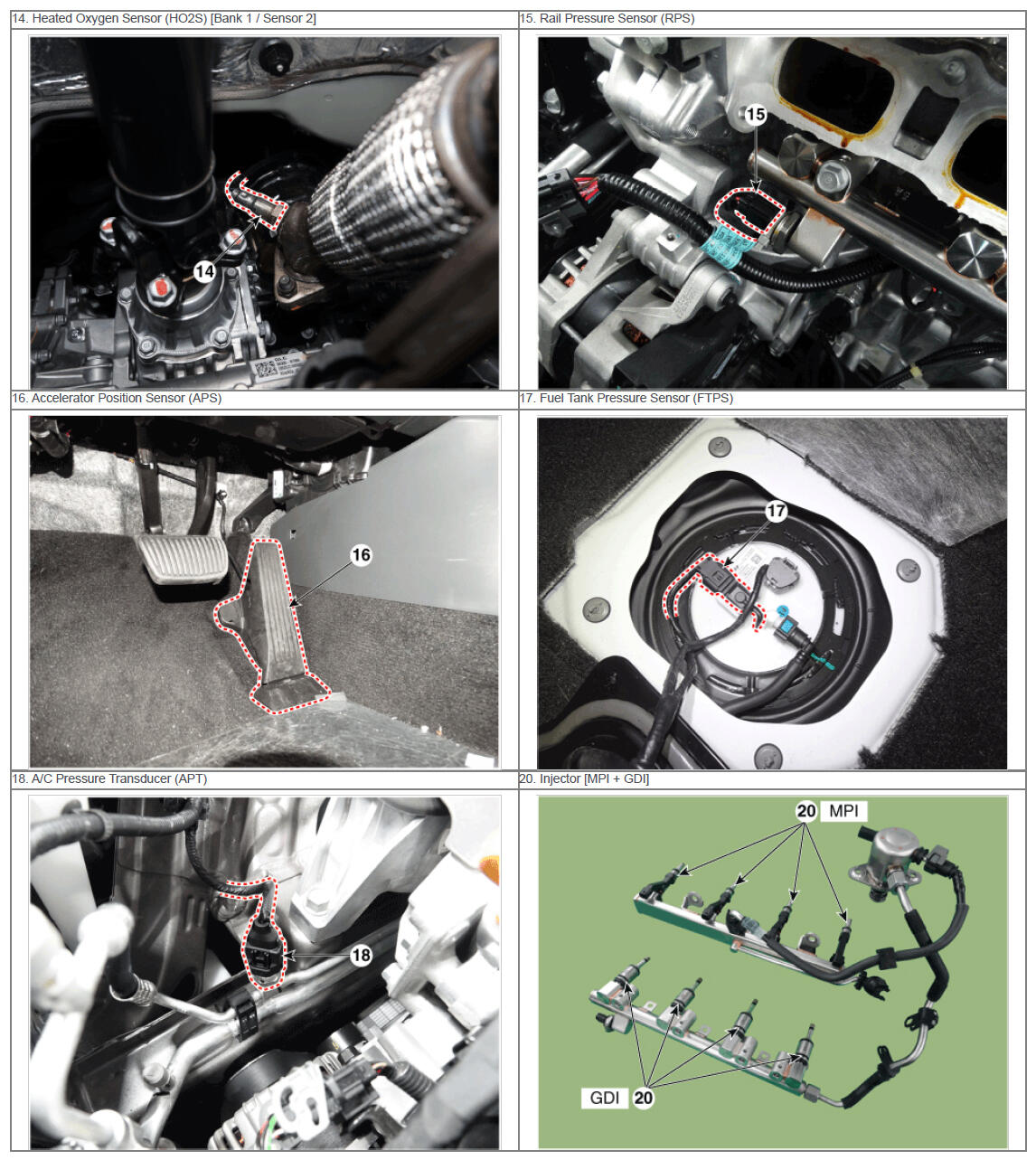

G16109068Courtesy of HYUNDAI MOTOR AMERICA

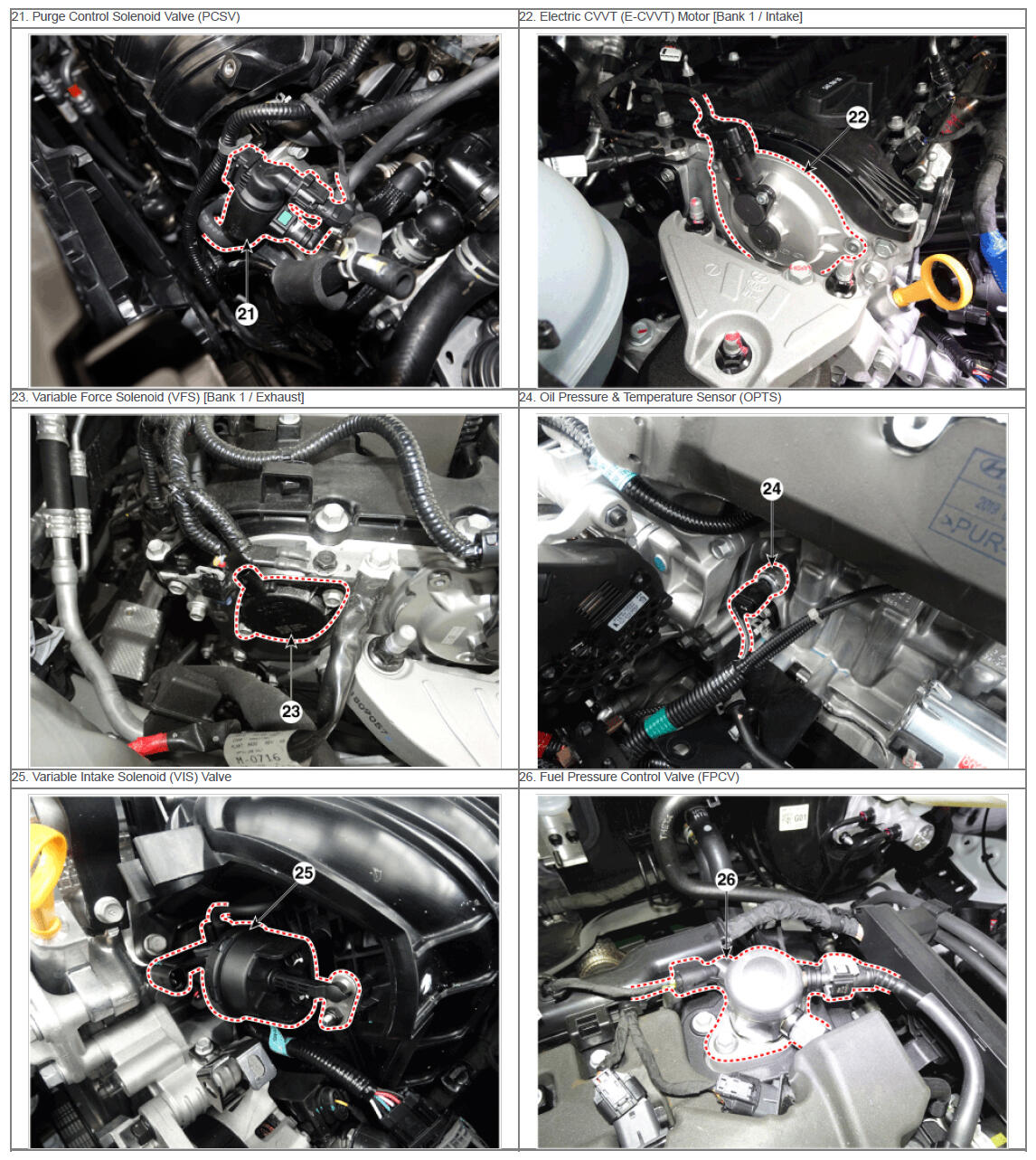

G16109069Courtesy of HYUNDAI MOTOR AMERICA

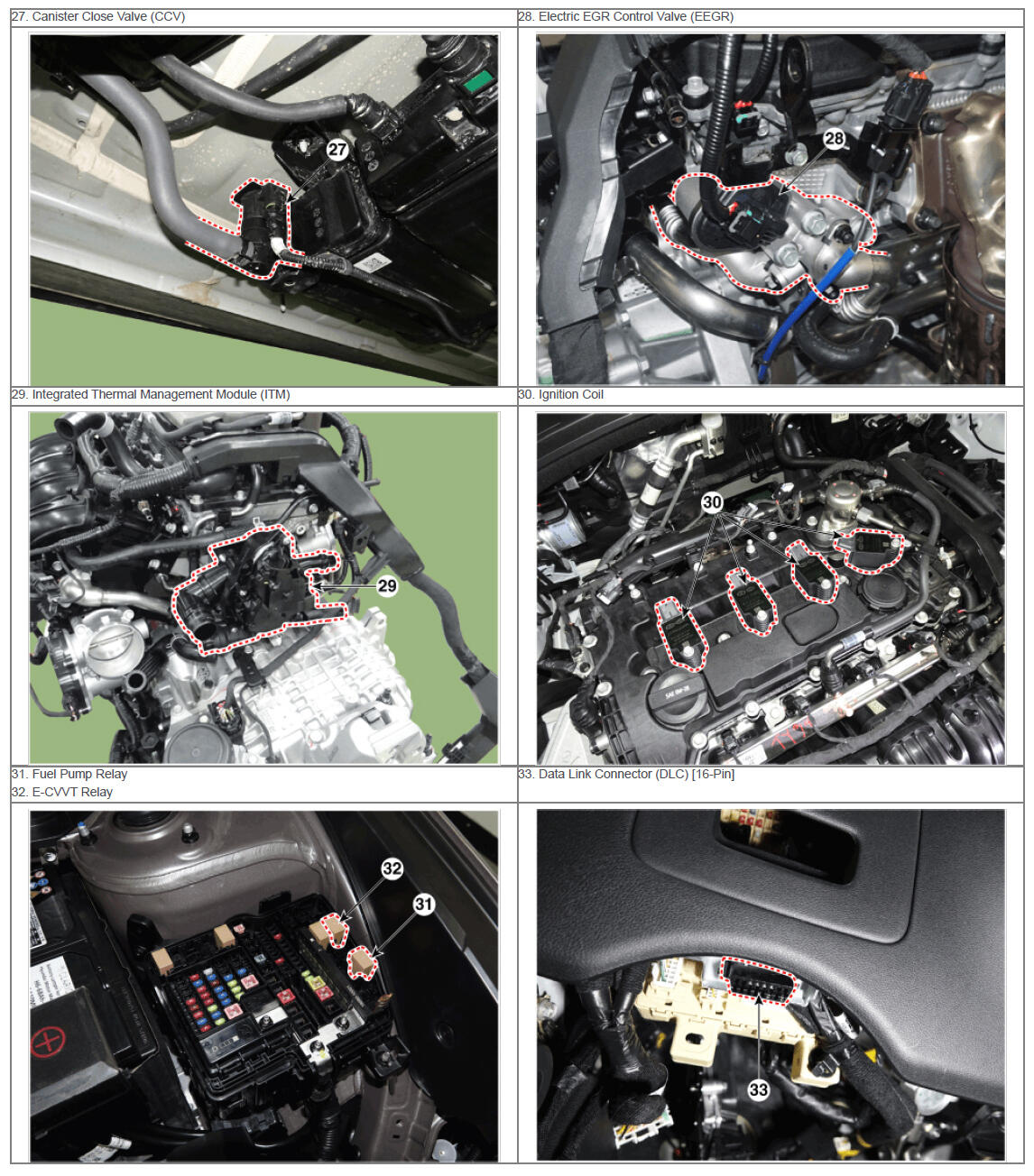

G16109070Courtesy of HYUNDAI MOTOR AMERICA
