Backup and input learning value when replacing AWD ECU

1. Connect GDS to Data Link Connector (DLC).
2. Using GDS, delete the DTC.

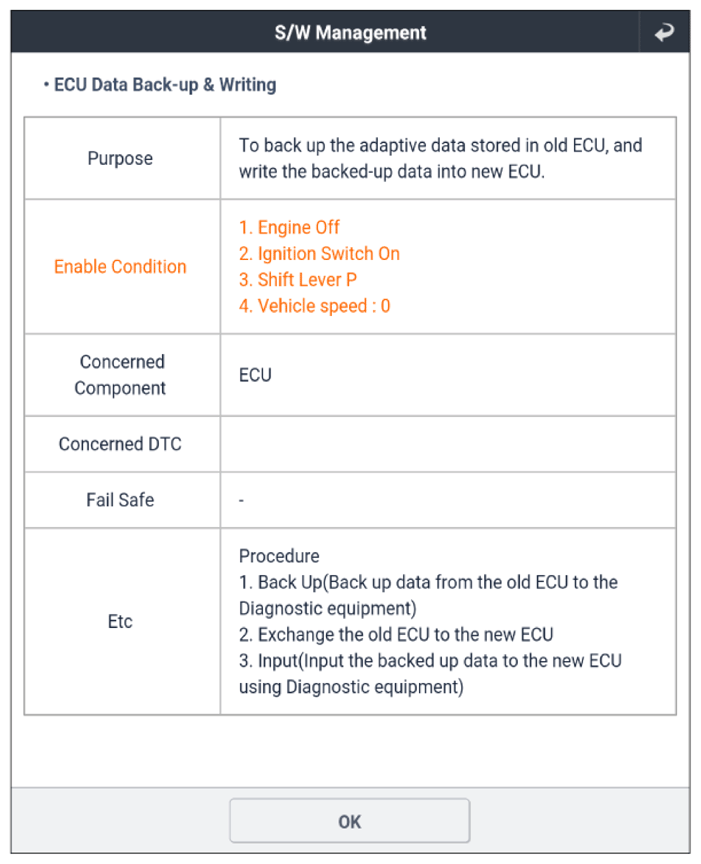

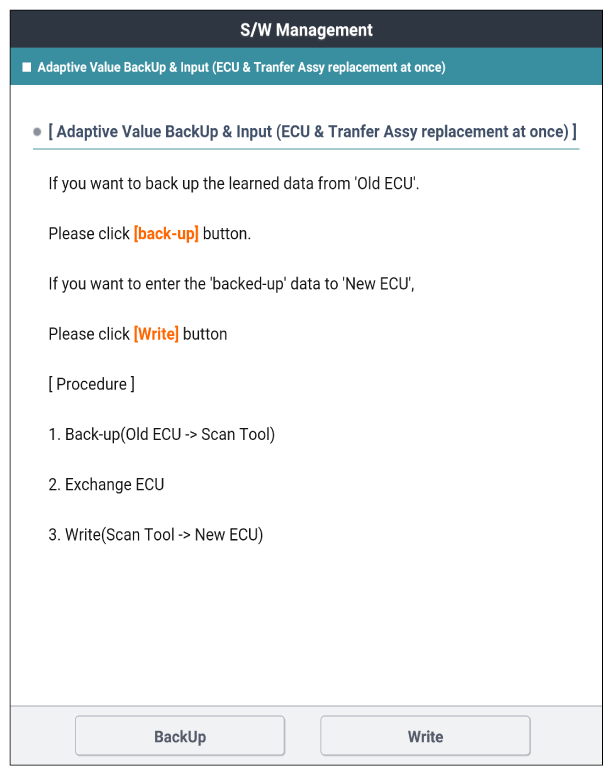

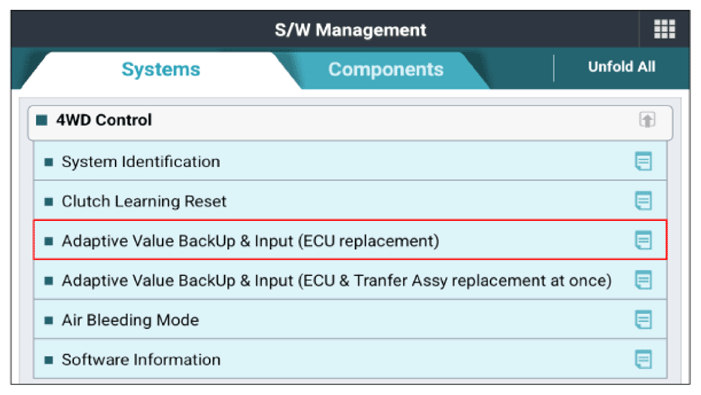

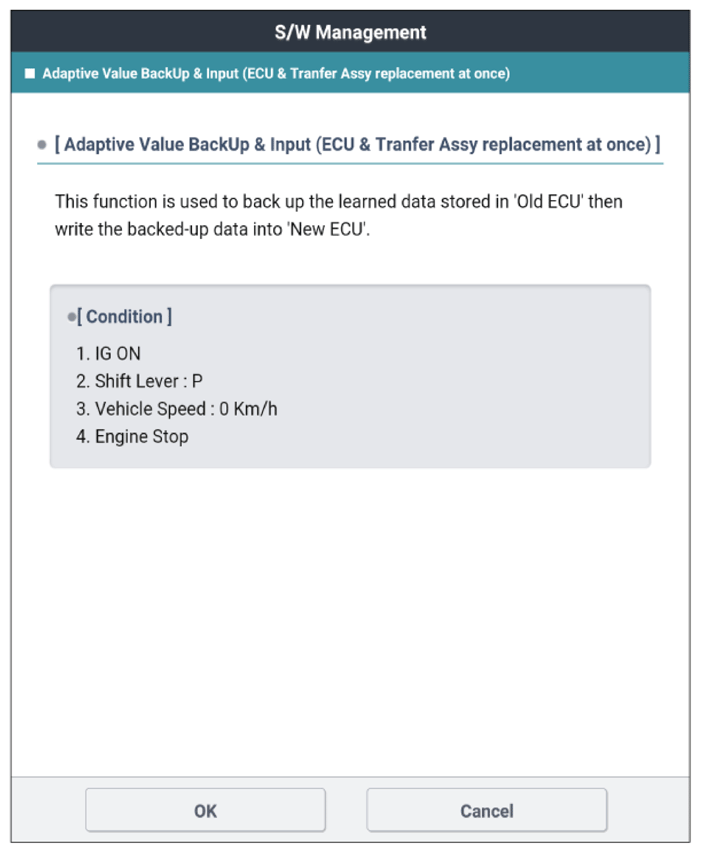

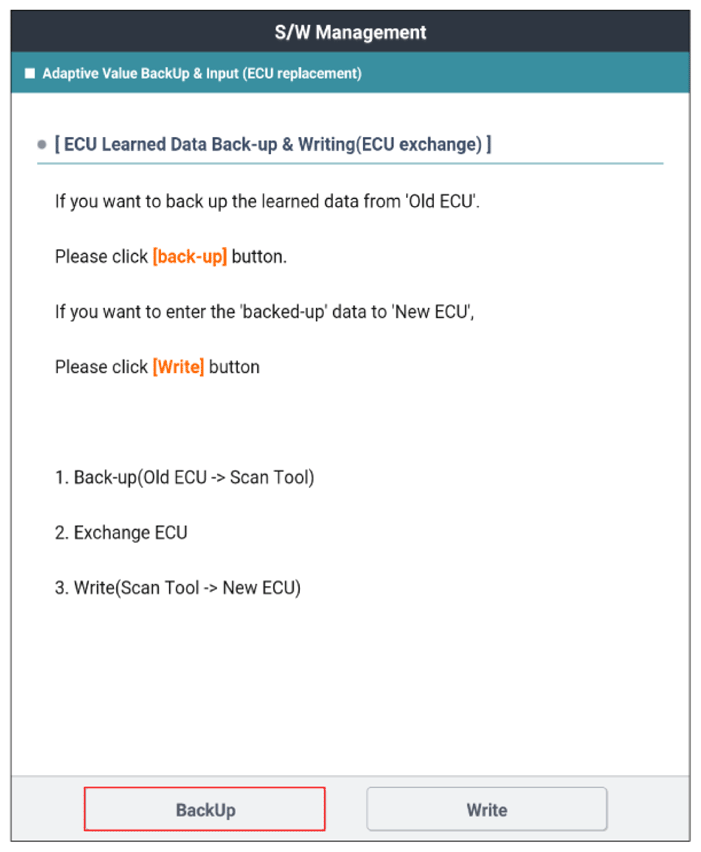

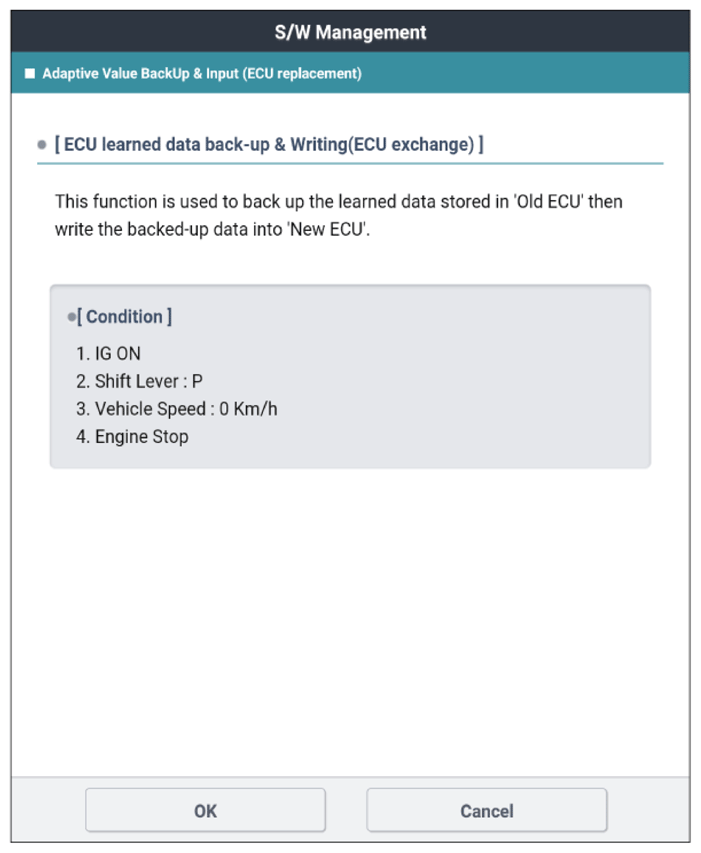

3. Select "backup and input learning value" in the SW Management.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

OK

"Final DTC Checking"  procedure.
