DTC Inspection

  1. Connect GDS to Data Link Connector (DLC).
  2. Turn IGN switch ON.

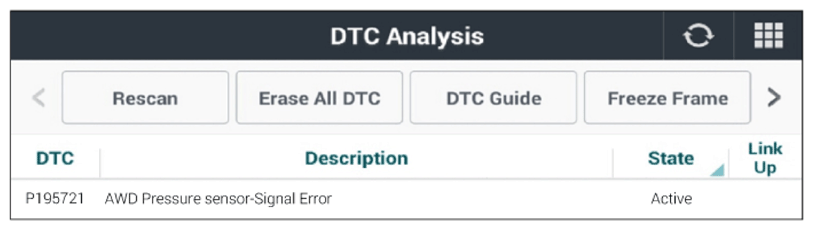

  3. See if the DTC Present.
    G16624351Courtesy of HYUNDAI MOTOR AMERICA

    Present / OK

    "Sensor Data Inspection"  procedure.

    History / NG

    An intermittent trouble occurred but now no DTC is displayed as it is in normal operation.

    "Final DTC Checking"  procedure.
