Front Radar: Removal
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Read the specification information of the existing front radar before replacing it with a new one.
- Be careful when removing the forward radar unit to avoid damaging the brackets.
- If the bracket is deformed or damaged, the installed radar will not function properly.
Information
- If the radar/bracket/connector is damaged, replace the front radar ASSY.
- Disconnect the battery (-) terminal.
- Remove the front bumper assembly
(Refer to Body (Interior/Exterior/Electrical) - "FRONT BUMPER ASSEMBLY ")

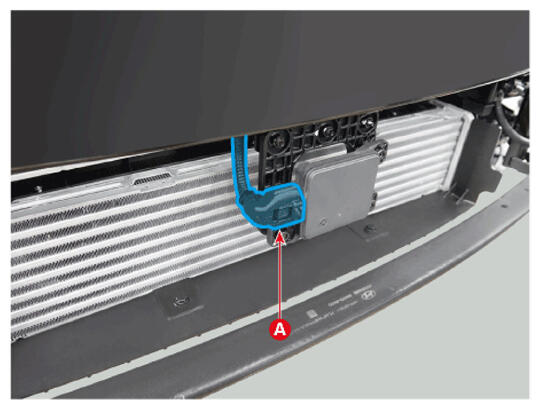

- Disconnect the front radar connector (A).

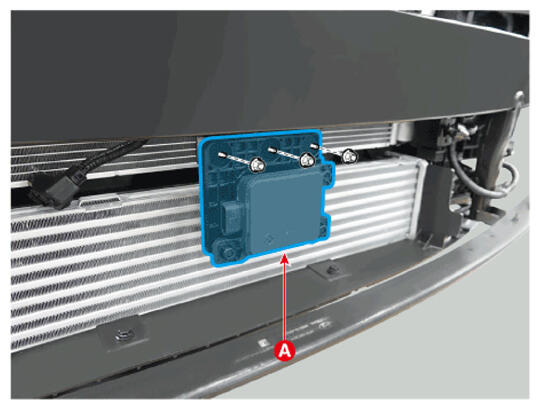

- Remove the front radar (A), after removing the nuts.
