How To Check/Adjust Front Radar Installation Angle - Drive Mode

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Information

After operating stop mode, the accuracy will be increased if the vehicle has driven more than 10 min.
(drive on straight lane which has metallic reflector.)

NOTE: Preparation before the front radar alignment:

Put the vehicle on the level ground.
Take out heavy luggage from the vehicles' seats or trunk.
Set all tires according to the specified pressure.
Check wheel alignment.
Check that the front surface of the front radar is clean.

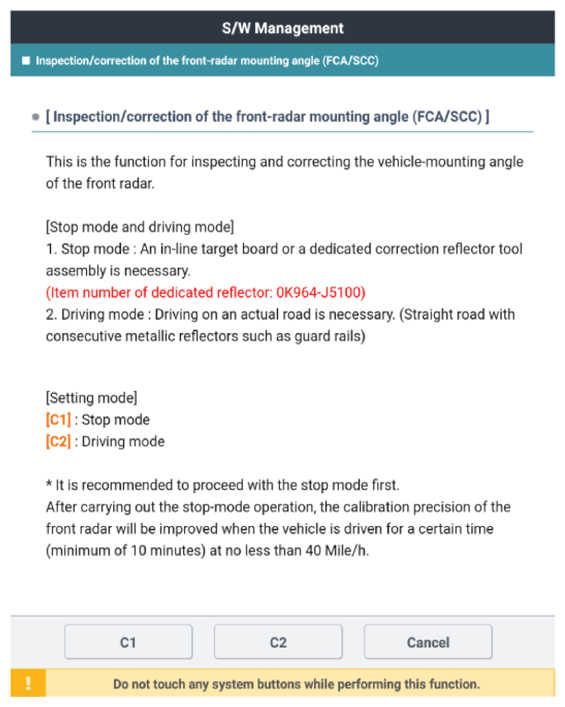

Select C2 (drive mode) to inspect and adjust the front radar installation angle by following procedure on diagnostic tool screen.

Courtesy of HYUNDAI MOTOR AMERICA
In case of front radar inspection/correction failure, check the inspection/correction conditions.
