Front Camera: Removal

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Read the specification information of the existing front camera before replacing it with a new one.

Disconnect the battery (-) terminal.

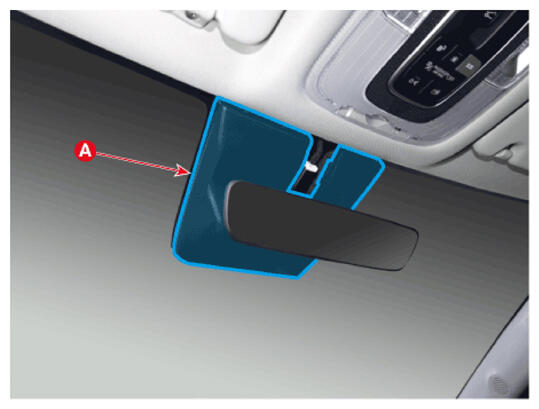

Remove the inside rear view mirror cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

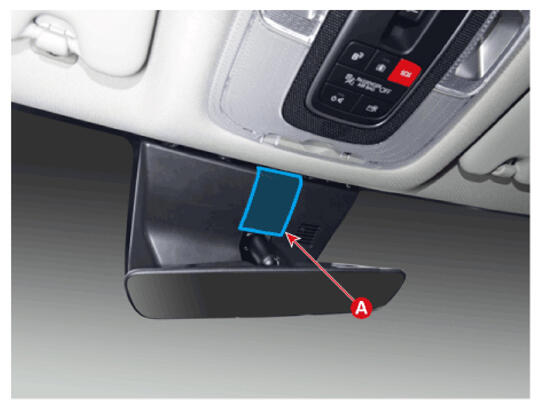

Remove the multi sensor cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

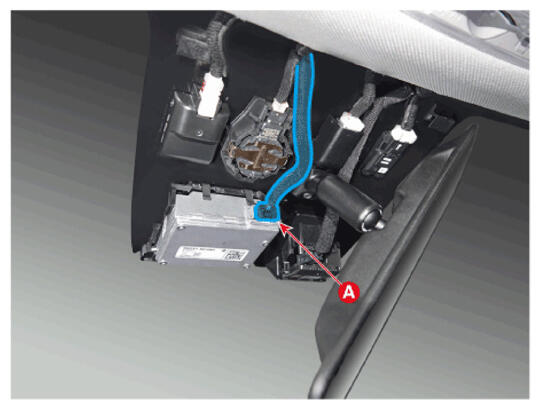

Disconnect the front camera connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

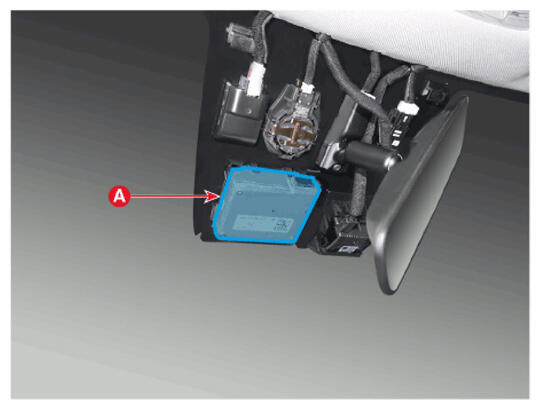

Remove the front camera (A) by pulling both hooks.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When separating the hooks, be careful not to damage it.
