Connector And Terminal Information
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

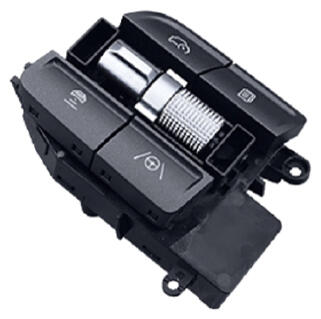

 Courtesy of HYUNDAI MOTOR AMERICA
|
| Connector |
Pin No |
Function |
 Courtesy of HYUNDAI MOTOR AMERICA
|
1 |
Battery (+) |
| 2 |
ILL (+) |
| 3 |
Paddle shift (Up) |
| 4 |
Paddle shift (Down) |
| 5 |
Audio switch (+)_input |
| 6 |
- |
| 7 |
B-CAN (High) |
| 8 |
B-CAN (Low) |
| 9 |
Encoder_CH1 |
| 10 |
Encoder_CH2 |
| 11 |
Ground |
| 12 |
Ground |
