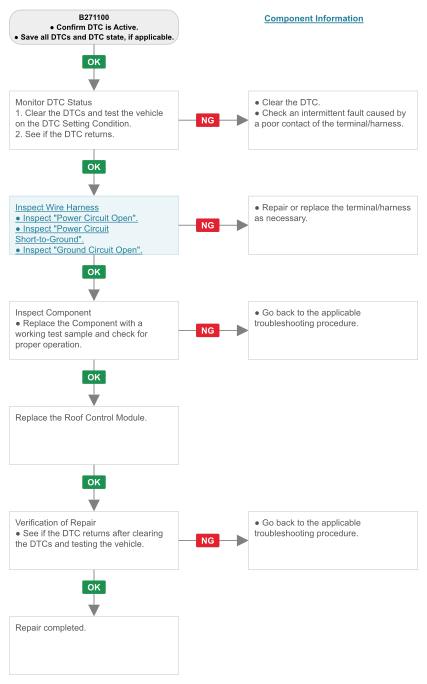

Diagnostic Flowchart

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
G16624859Courtesy of HYUNDAI MOTOR AMERICA
