Intake System

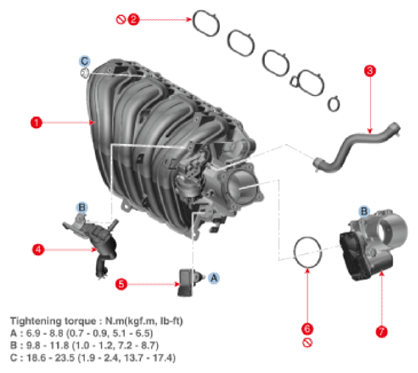

Fig 1: Intake System With Torque Specification
G16607570Courtesy of HYUNDAI MOTOR AMERICA

OK

Go to "ETC & TPS Connector Check"  procedure.

NG

Parts found to be abnormal during inspection are repaired or replaced.

Go to "Final DTC checking"  procedure.
