DTC Inspection (Present, History)
- Connect GDS to Data Link Connector.
- Turn IGN switch ON.

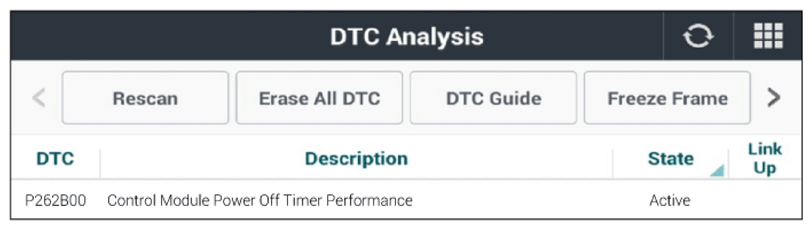

- See if the DTC present.
Present/OK
The current vehicle can reproduce troubles, allowing detailed inspection according to the diagnosis flow.
Go to "Inspection for PCM connector (Connector moisture and fastening inspection)" procedure.
History/NG
It can be a temporary trouble due to poor contact of the circuit system.
Check the connector for looseness, poor contact, bending, corrosion, contamination, deformation or damage.
Go to "Final DTC checking" procedure.
